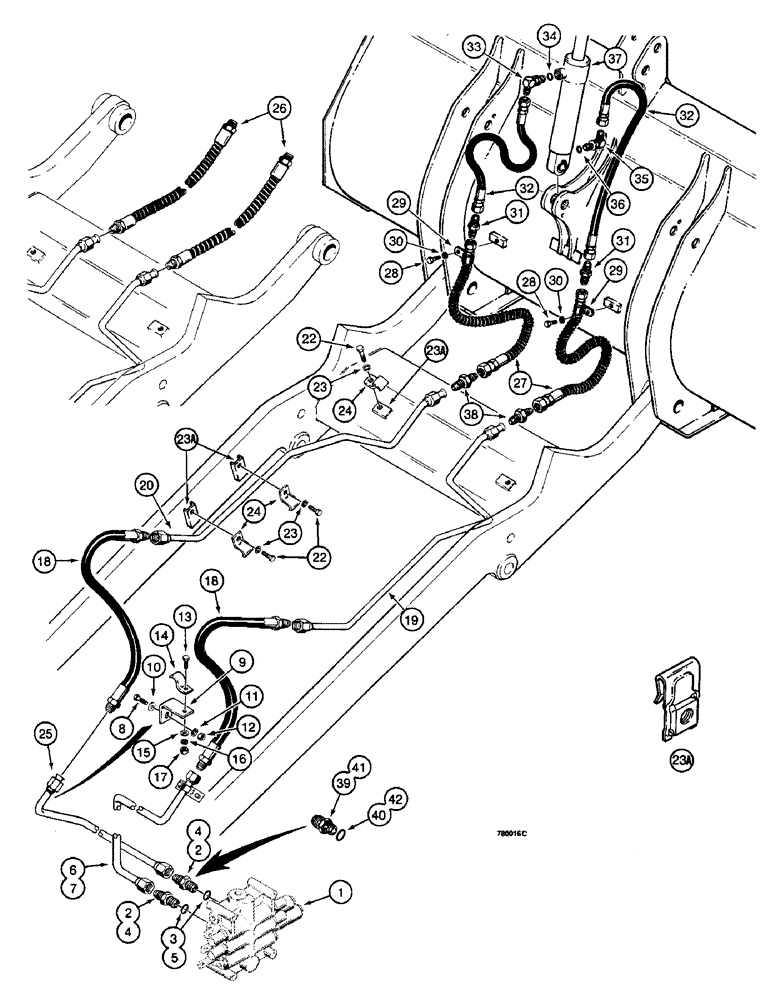

Запчасти Case W14 (470) - LOADER BUCKET AND GRAPPLE HYDRAULIC CIRCUITS, PARTS FOR GRAPPLE CIRCUITS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - see figures 502 and 516 for correct valve and component parts

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Parker valve, see Ref. 39, Incl. Ref. 3

1-2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Hydreco valve, see Ref. 41, Incl. Ref. 5

1-2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

6

L52664

TUBE,0.75" OD

- Parker valve

1шт.

7

L79692

TUBE,0.75" OD

- Hydreco valve

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

9

L106929

BRACKET

- clamp mounting

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

2шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

18

L50653

HOSE

- at valve, 36-1/2" (927 mm) long

2шт.

19

L103965

PIPE,0.75" OD

TUBE - valve to clam cylinder, right-hand

1шт.

20

L103967

PIPE,0.75" OD

TUBE - valve to clam cylinder, left-hand

1шт.

21

RESERVED

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

6шт.

23a

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

6шт.

24

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

6шт.

25

L52666

TUBE

- Parker valve

1шт.

25

L108092

TUBE,0.75" OD

- Hydreco valve

1шт.

26

L54592

HOSE,0.50" ID x 50.00"

ASSY, , Used With Clam Bucket 0.50" ID x 50.00"

2шт.

27

R29428

HOSE

- 40-1/2" (1029 mm), long, parts for grapple circuit

2шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Parts for grapple circuit Hex, 3/8"-16 x 1 3/4", G5

2шт.

29

R14668

CLAMP

- hose, parts for grapple circuit

2шт.

30

92-6

LOCK WASHER,3/8"

parts for grapple circuit 3/8"

2шт.

31

218-430

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - straight, parts for grapple circuit

2шт.

32

35209

HOSE ASSY.

HOSE - 32" (813 mm) long, parts for grapple circuit

2шт.

33

L78523

ELBOW

- 90 degree, adjustable restrictor, parts for grapple circuit, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, parts for grapple circuit

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, parts for grapple circuit, Incl. Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, parts for grapple circuit

1шт.

37

G100723

CYLINDER ASSY.

CYLINDER - grapple, parts list figure 496, parts for grapple circuit

1шт.

38

218-853

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree

FITTING - straight, parts for grapple circuit

2шт.

39

L78665

RESTRICTOR

FITTING - restrictor, used only with grapple and Parker valve, parts for grapple circuit

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting, parts for grapple circuit

1шт.

41

L100453

RESTRICTOR

FITTING - restrictor, used only with grapple and Hydreco valve, parts for grapple circuit

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting, parts for grapple circuit

1шт.
