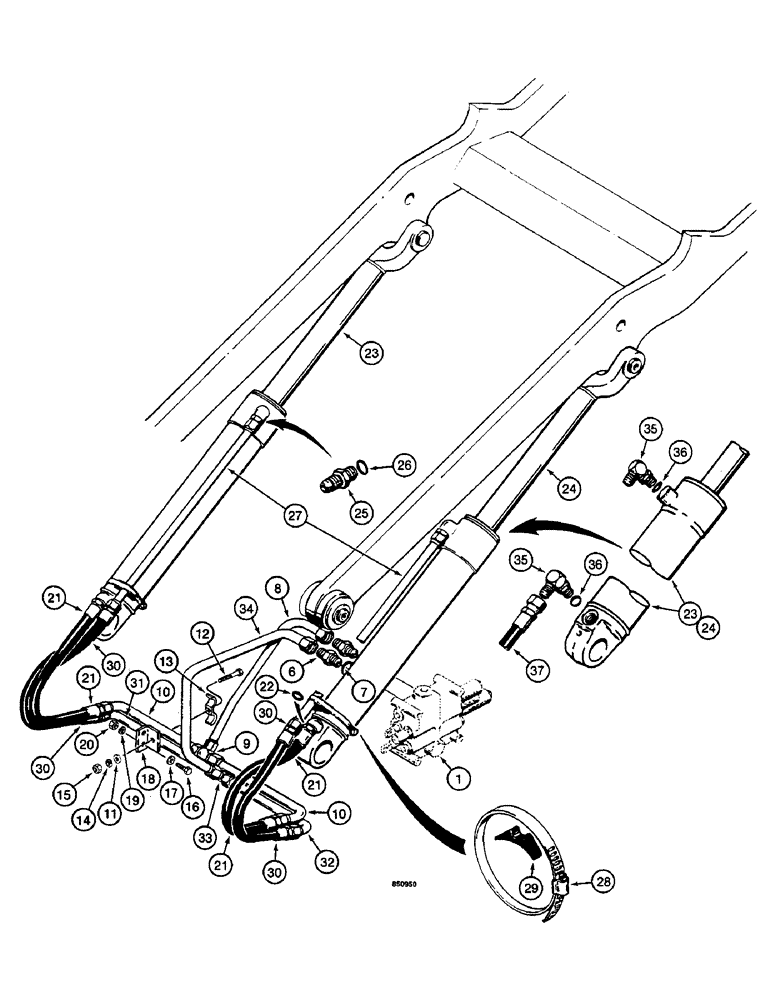

Запчасти Case W14 (464) - LOADER LIFT HYDRAULIC CIRCUIT, VALVES ARE MARKED WITH CASE PART NUMBER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - for correct valve, see figures 500 and 502

1шт.

2

RESERVED

1шт.

3

RESERVED

1шт.

4

RESERVED

1шт.

5

RESERVED

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Parker valves, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Hydreco valves, Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

8

L78851

TUBE ASSY.

TUBE - 3 bends, Parker valves

1шт.

8

L53203

TUBE,0.75" OD

- 2 bends, Parker valves

1шт.

8

L79682

TUBE,0.75" OD

- Hydreco valves

1шт.

9

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

10

L50854

TUBE,0.75" OD x 19.5, 4" L

- tee to lift cylinder, closed end

2шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

13

R15257

CLAMP

- tube

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

18

L47468

BRACKET

- tube clamping

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

21

L50653

HOSE

- 36-1/2" (927 mm) long, if used, see Ref. 37

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

23

REF

INSTRUCTION

CYLINDER - left-hand lift, see figures 488 and 490

1шт.

24

REF

INSTRUCTION

CYLINDER - right-hand lift, see figures 488 and 490

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, if used, Incl. Ref. 26

4шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

27

L74679

TUBE,0.75" OD x 29, 0.75" L

- at cylinder, used with 218-5064 adapter

2шт.

27

L77722

TUBE,0.75" OD x 29.5, 0.97" L

- at cylinder, used with 218-5108 elbow

2шт.

28

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - tube to cylinder

2шт.

29

L79937

SADDLE

- tube clamp

2шт.

30

L50653

HOSE

- at rod end cylinder, 36-1/2" (927 mm) long

2шт.

31

L50854

TUBE,0.75" OD x 19.5, 4" L

- tee to right-hand lift cylinder, rod end, 19.5"

1шт.

32

L50877

TUBE,0.75" OD x 15.5, 4" L

- tee to left-hand lift cylinder, rod end 15.5"

1шт.

33

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

34

L77671

TUBE,0.75" OD x 16.13, 13.68" L

- control valve to tee

1шт.

34

L79684

TUBE,0.75" OD

- Hydreco valves

1шт.

35

L114091

FITTING

ELBOW - 90 degree, special, if used, Includes: Ref. 36

4шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

37

L78010

HOSE

- 36" (914 mm) long, used with 218-5108 elbow, if used, see Ref. 21

2шт.
