Запчасти Case W14 (462) - LOADER HYDRAULIC CIRCUIT, VALVE TO HYDRAULIC RESERVOIR, USED ON TRAC. W/ FILTERS IN RESERVOIR (08) - HYDRAULICS

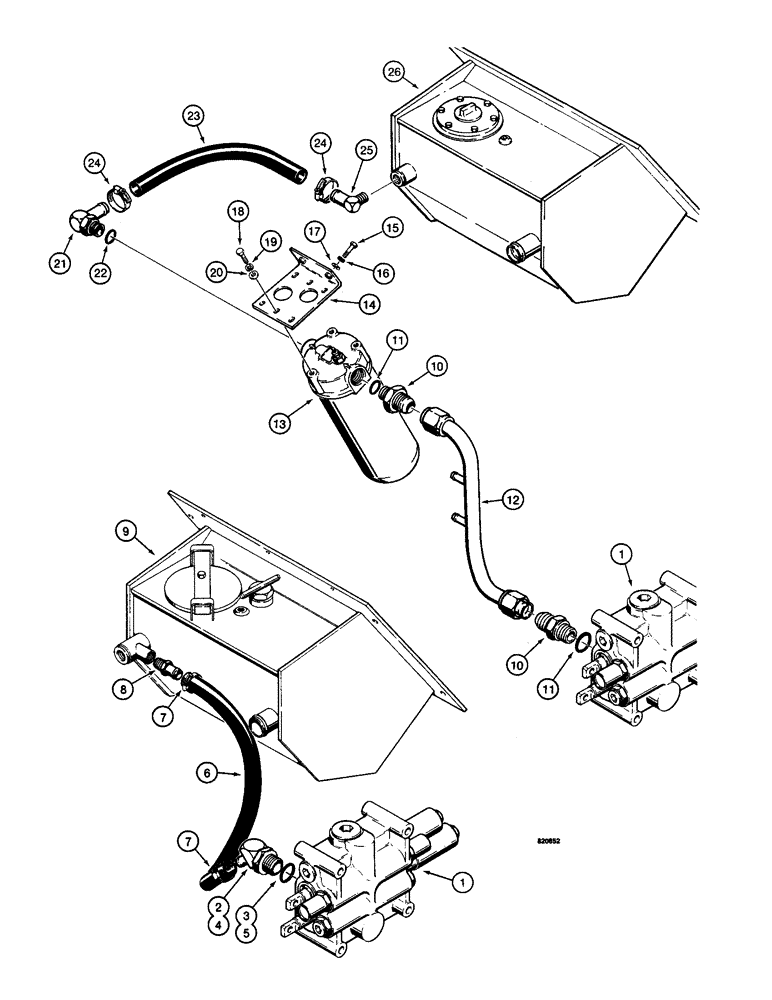

Схема запчастей Case W14 - (462) - LOADER HYDRAULIC CIRCUIT, VALVE TO HYDRAULIC RESERVOIR, USED ON TRAC. W/ FILTERS IN RESERVOIR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - hydraulic, see figures 500 and 502 for correct valve and components

1шт.

2

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

Stem, Use with Parker valve, Incl Ref. 3 45º, 1" Hose x 1 5/8"-12 ORB Beaded

1шт.

3

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- stem fitting

1шт.

4

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 45 degree, hose, use with Hydreco valve, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

6

H309096

HOSE

- 1" (25 mm) ID x 17" (432 mm) long

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

8

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM FITTING - straight, hose

1шт.

9

REF

INSTRUCTION

HYDRAULIC RESERVOIR - parts list figure 452

1шт.

10

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, used on tractors with external hydraulic filter, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, used on tractors with external hydraulic filter

2шт.

12

L106308

TUBE,8.6, 1.4" L

- valve to filter, used on tractors with external hydraulic filter

1шт.

13

L114122

FILTER

ASSEMBLY - hydraulic oil, parts list figure 498, used on tractors with external hydraulic filter

1шт.

14

L106445

BRACKET

- filter, used on tractors with external hydraulic filter

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on tractors with external hydraulic filter Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

used on tractors with external hydraulic filter 3/8"

2шт.

17

D41740

WASHER

- flat, special, used on tractors with external hydraulic filter

2шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used on tractors with external hydraulic filter Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

19

92-6

LOCK WASHER,3/8"

used on tractors with external hydraulic filter 3/8"

3шт.

20

95-6

WASHER,3/8"

- flat, , used on tractors with external hydraulic filter 3/8"

3шт.

21

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, used on tractors with external hydraulic filter, Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting, used on tractors with external hydraulic filter

1шт.

23

L106432

HOSE

- 1-1/4" (32 mm) ID x 21" (533 mm) long, used on tractors with external hydraulic filter

1шт.

24

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

used on tractors with external hydraulic filter 1.25/2.125 HD Worm

2шт.

25

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

STEM FITTING - 90 degree, used on tractors with external hydraulic filter

1шт.

26

REF

INSTRUCTION

HYDRAULIC RESERVOIR - parts list figure 454, used on tractors with external hydraulic filter

1шт.

Выбрано товаров: 26
