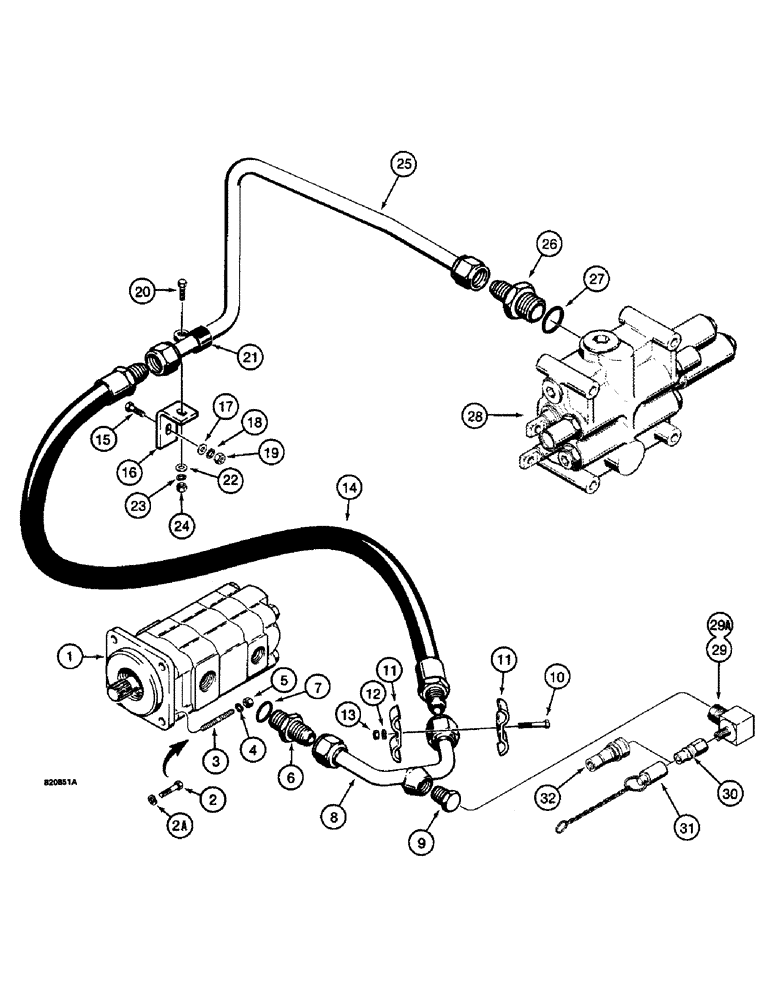

Запчасти Case W14 (460) - LOADER HYDRAULIC CIRCUIT, PUMP TO LOADER VALVE, VALVES ARE MARKED W/ CASE PART NUMBER (08) - HYDRAULICS

1

L110544

PUMP

- hydraulic, parts list figure 270, Serial Range: -9151870

1шт.

1

L111787

PUMP, HYDRAULIC

PUMP - hydraulic, not shown, parts list figure 272, Start Serial: 9151870

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with L111787 pump only Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

2a

92-8

LOCK WASHER,1/2"

Used with Ref. 2 1/2"

2шт.

3

A27182

STUD

- special, used with L110544 pump only

4шт.

4

92-8

LOCK WASHER,1/2"

Used with Ref. 3 1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC, used with Ref. 3

4шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L105000

TUBE,1" OD x 7.44, 8.32" L

- hydraulic, at pump, Serial Range: -9151870

1шт.

8

L106809

TUBE ASSY.

TUBE - hydraulic, at pump, Start Serial: 9151870

1шт.

9

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

1шт.

11

R15257

CLAMP

- tube

2шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

14

L50857

HOSE

- 37" (940 mm) long, Serial Range: -9151870

1шт.

14

L106812

HOSE ASSY.

HOSE - 35" (889 mm) long, Start Serial: 9151870

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

1шт.

16

L106929

BRACKET

- tube clamp

1шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

25

L53119

TUBE,1" OD

- L70429, L70430, and L104137 valve

1шт.

25

L79694

TUBE

- used with 2 spool Hydreco valve

1шт.

25

L79696

TUBE

- used with 3 spool Hydreco valve

1шт.

26

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR - straight, L53119 tube, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

26

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, L79694 and L79696 tube, Incl. Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

28

REF

INSTRUCTION

VALVE - control, see figures 500 and 502 for correct valve and components

1шт.

29

L100938

FITTING

ELBOW - 90 degree, use with L53113 tube, Ref. 8

1шт.

29a

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ELBOW - 90 degree, use with Ref. 2, L105000 tube

1шт.

30

S206607

DISC

COUPLING - male

1шт.

31

S206608

CAP

COVER - dust

1шт.

32

S206610

MAKING-UP

COUPLING - female

1шт.
