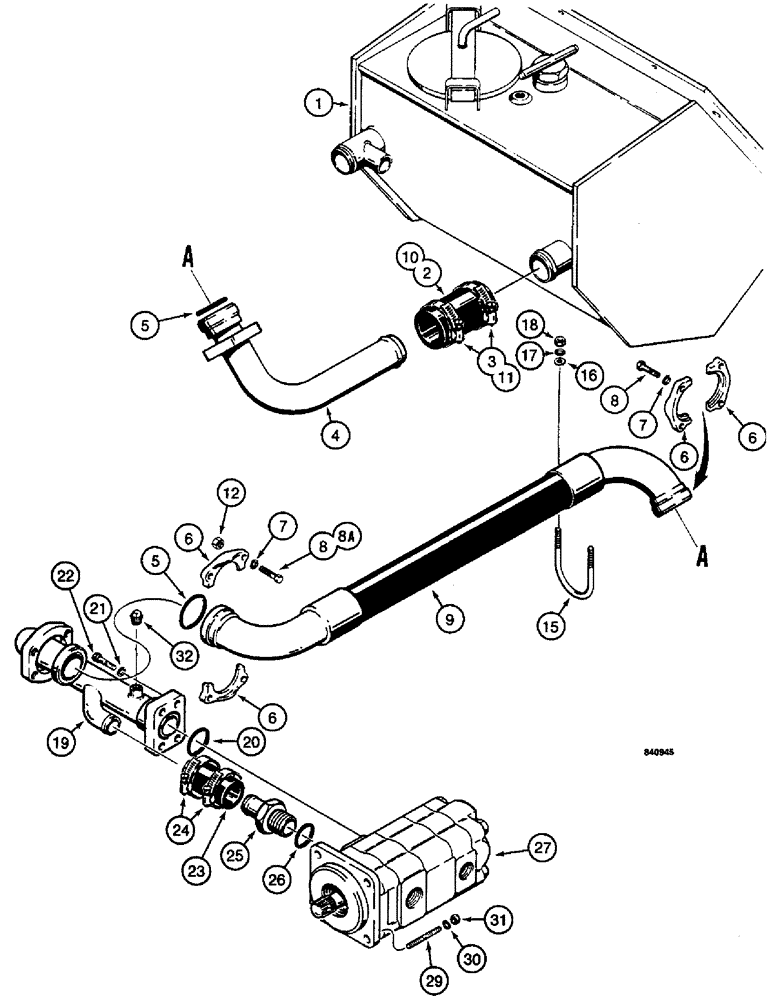

Запчасти Case W14 (456) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP, BEFORE PIN 9151870 (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - parts list figures 452 and 454

1шт.

2

L55950

LARGE HOSE

HOSE - 2" (51 mm) ID x 5" (127 mm) long, no longer available, order Refs. 10 and 11

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

use with L55950 hose #36, 1.81/2.75 Type F Worm

2шт.

4

L50654

TUBE,2" OD x 10.9, 7.9" L

- hydraulic, suction

1шт.

5

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

2шт.

6

A14141

FLANGE

SPLIT FLANGE - tube

4шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4-8шт.

8a

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

If used Hex, 1/2"-13 x 2", G5

4шт.

9

L114737

HOSE,50.8mm ID x 871.22mm L, SAE 100R4

HOSE ASSEMBLY - hydraulic, suction

1шт.

10

L74461

HYDRAULIC HOSE,2.00" ID x 5.00", SAE 100R1 Type A

1шт.

11

214-177

CLIP

CLAMP - hose, use with L74461 hose

2шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC, if used

4шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

L51039

U-BOLT

- 5/16"-18 NC x 2-7/8"

1шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

25-115

NUT,5/16"-24, G5

- hex, 5/16"-18 NC

2шт.

19

L50667

MANIFOLD

TUBE - at pump, models without auxiliary steering and without a backhoe, for models with auxiliary steering or with a backhoe, see figures 254 or 472

1шт.

20

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- flange

1шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

BOLT - hex socket head, 1/2"-13 NC x 1-1/2"

4шт.

23

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

24

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

STEM FITTING - straight, male, Incl. Ref. 26

1шт.

26

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- stem fitting

1шт.

27

L110544

PUMP

- hydraulic, parts list figure 270

1шт.

28

RESERVED

1шт.

29

A27182

STUD

- special

4шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

32

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" NPT

1шт.
