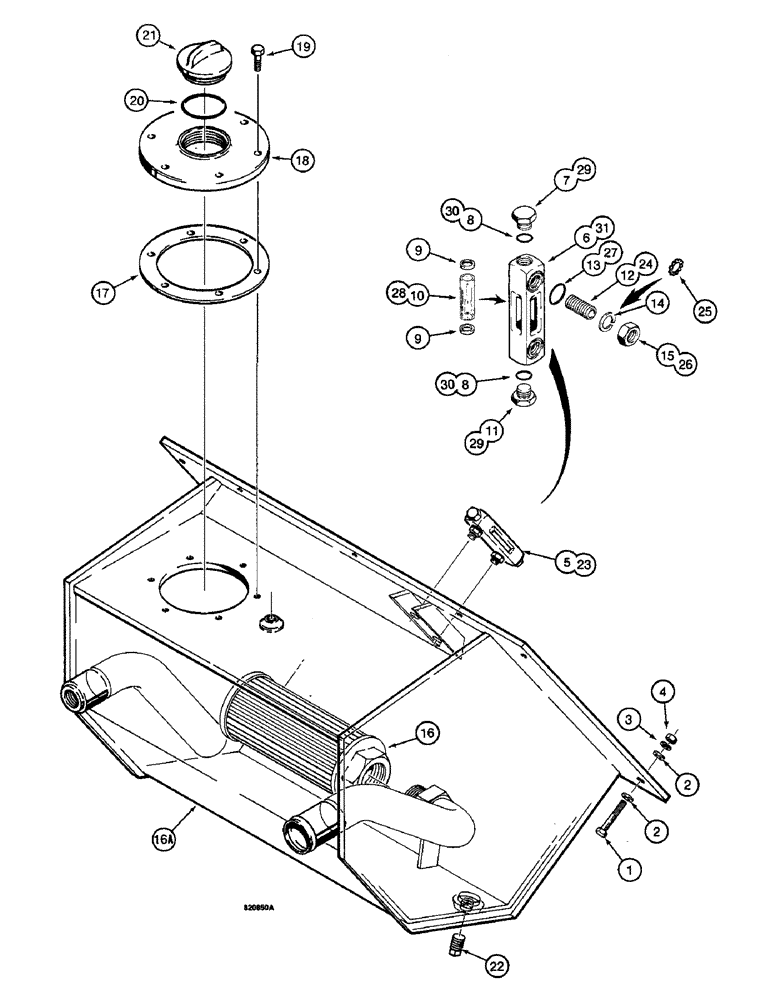

Запчасти Case W14 (454) - HYDRAULIC RESERVOIR WITH EXTERNAL FILTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex head, 3/8"-16 NC x 1-1/2"
4шт.
2
D41740
WASHER
- flat, 3/8"
8шт.
3
92-6
LOCK WASHER,3/8"
4шт.
4
25-106
NUT,3/8"-16, G5
- hex, 3/8"-16 NC
4шт.
5
L79110
GAUGE
- sight, has window on three sides, if used, Includes: Ref. 6 - 15
1шт.
6
NSS
NOT SOLD SEPARAT
BODY - gauge
1шт.
7
NSS
NOT SOLD SEPARAT
PLUG - top, gauge
1шт.
8
N8539
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- top and bottom
2шт.
9
D75819
GASKET
- top and bottom
2шт.
10
D75820
TUBE
LENS - gauge
1шт.
11
NSS
NOT SOLD SEPARAT
PLUG - bottom, gauge
1шт.
12
D75821
STUD
- mounting
2шт.
13
N8537
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
- bolt
2шт.
14
92-8
LOCK WASHER,1/2"
2шт.
15
131-402
NUT,PAL, 1/2"-20
NUT - hex, 1/2"-20 NF
2шт.
16
L104990
FILTER SCREEN
SCREEN - suction
1шт.
16a
L109215
TANK, HYDRAULIC OIL
RESERVOIR - hydraulic, with external filter, Includes: Ref. 17 - 22
1шт.
17
D50547
GASKET,1.52mm Thk
- cover
1шт.
18
D34977
CAP
COVER - hydraulic reservoir
1шт.
19
L107828
BOLT
- special
6шт.
20
A7552
O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro
- cap
1шт.
21
L100349
PLUG
CAP - hydraulic reservoir
1шт.
22
221-677
DRAIN PLUG,Sq Hd, 3/4" NPT
PLUG - magnetic drain
1шт.
23
L111365
GAUGE
- sight, has window on one side only, order L79110 for service, Includes: Ref. 24 - 31
1шт.
Ref. 23 - Was used in production only, Not a service item.
1шт.
24
N8075
BOLT
- special
2шт.
25
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
2шт.
26
825-1012
NUT,M12, Cl 8
- hex, 12 mm - 1.75
2шт.
27
N8537
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
- bolt
2шт.
28
NSS
NOT SOLD SEPARAT
LENS - gauge
1шт.
29
NSS
NOT SOLD SEPARAT
CAP - lens
2шт.
30
N8539
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- top and bottom
2шт.
31
NSS
NOT SOLD SEPARAT
BODY - gauge
1шт.
Выбрано товаров: 33
