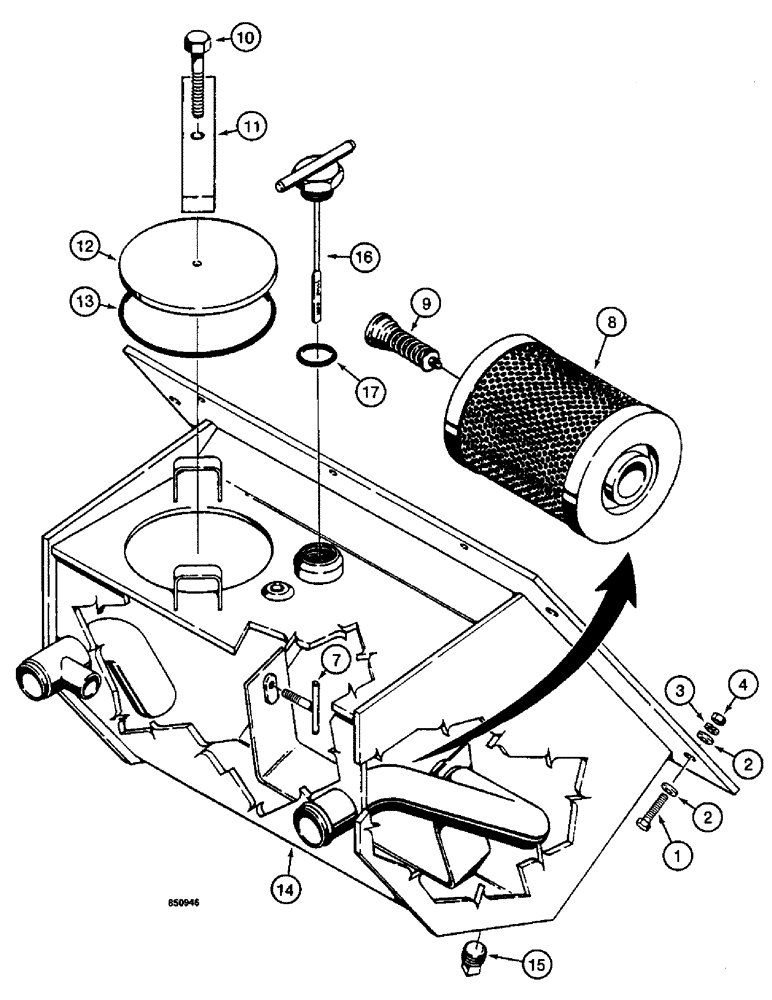

Запчасти Case W14 (452) - HYDRAULIC RESERVOIR WITH INTERNAL FILTER (08) - HYDRAULICS

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

4шт.

2

D41740

WASHER

- flat, 3/8"

8шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

L100762

BAR

BOLT - T, filter holddown

1шт.

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - reservoir, Includes: Ref. 8 and 9

1шт.

8

L50384

FILTER, ELEMENT

FILTER - hydraulic tank

1шт.

9

L76865

VALVE

- relief, bypass

1шт.

L74210

TANK

RESERVOIR - hydraulic, with internal filter, Includes: Ref. 10 - 15

1шт.

10

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

1шт.

11

L50741

BAR

- cover holddown

1шт.

12

L55406

COVER

- hydraulic tank access

1шт.

13

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

- cover

1шт.

14

NSS

NOT SOLD SEPARAT

TANK - hydraulic

1шт.

15

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magnetic drain

1шт.

16

L51652

DIPSTICK

GAUGE - oil level

1шт.

17

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- gauge

1шт.
