Запчасти Case W14 (446) - L76560 HORN, L50225 HORN (07) - BRAKES

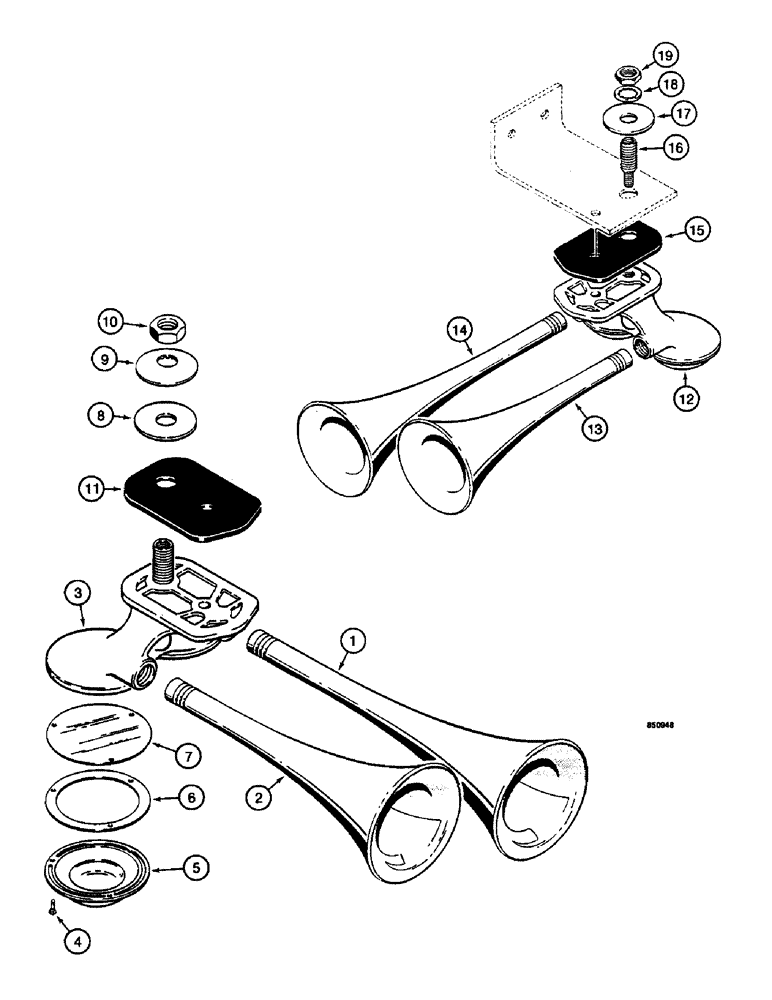

Схема запчастей Case W14 - (446) - L76560 HORN, L50225 HORN (07) - BRAKES

Артикул

Название

Примечание

Количество

L76560

HORN

ASSEMBLY - air, Includes: Ref. 1 - 11

1шт.

1

D76966

HORN

- long, 13-7/16" (341 mm) long

1шт.

2

D76967

HORN

- short, 10-29/32" (277 mm) long

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - horn

1шт.

D76968

KIT

- diaphragm, Includes: Ref. 4 - 7

2шт.

D76968 Diaphram Kit, (2 Kits required to Service one horn Attachment)

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cover

6шт.

5

NSS

NOT SOLD SEPARAT

COVER - body

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cover

2шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - horn

2шт.

8

195-108

WASHER,5/8"

- flat, 5/8"

1шт.

9

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8"

1шт.

10

129-127

NUT,5/8"-18, G5

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - horn

1шт.

L50225

HORN

ASSEMBLY - air, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - horn, L50225 horn

1шт.

13

L33784

HORN

- short, 10-3/4" (273 mm) long, L50225 horn

1шт.

14

L33785

HORN

- long, 13-1/3" (339 mm) long, L50225 horn

1шт.

L33786

KIT

- horn mounting, L50225 horn, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

PAD - mounting, L50225 horn

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - air line to horn, L50225 horn

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special, L50225 horn

1шт.

18

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8", L50225 horn

1шт.

19

129-127

NUT,5/8"-18, G5

L50225 horn 5/8"-18, G5

1шт.

Выбрано товаров: 24
