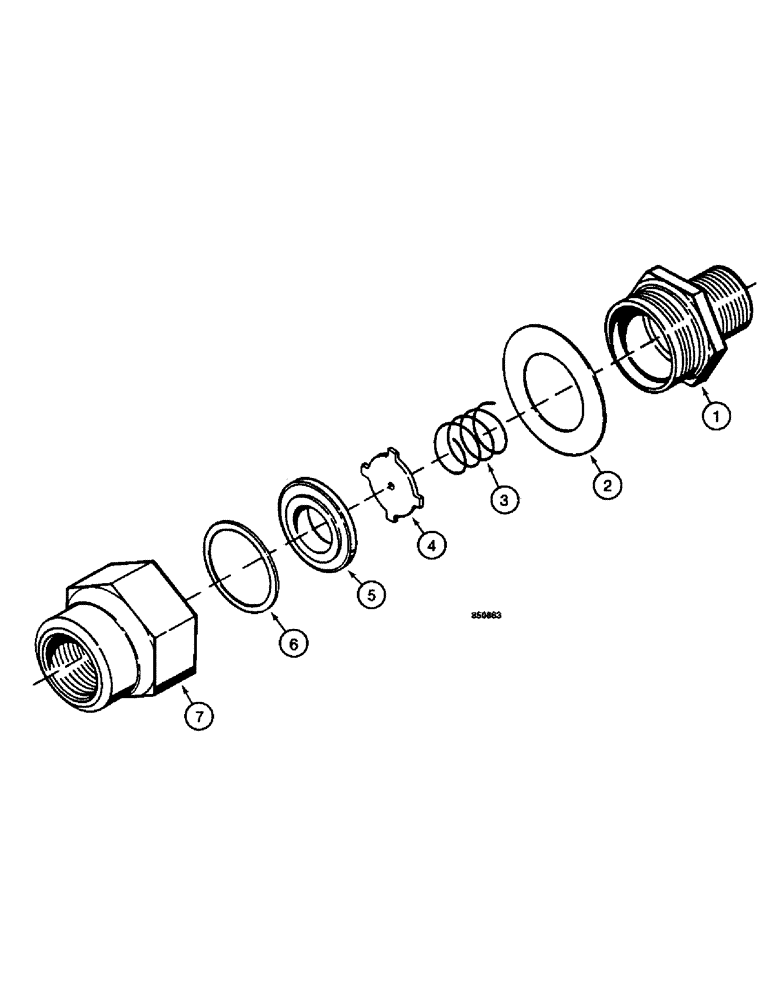

Запчасти Case W14 (444) - G45437 AIR PRESSURE CHECK VALVE (07) - BRAKES

G45437

LOCK VALVE

CHECK VALVE - air pressure, Includes: Ref. 1 - 7

1шт.

1

S110344

CAP

- valve, threaded

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification

1шт.

3

S110343

SPRING

- valve

1шт.

4

S110342

VALVE

- disc

1шт.

5

S110341

SEAT

- valve

1шт.

6

S110345

WASHER

- special, used as shim, .02" (.508 mm) thick

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.
