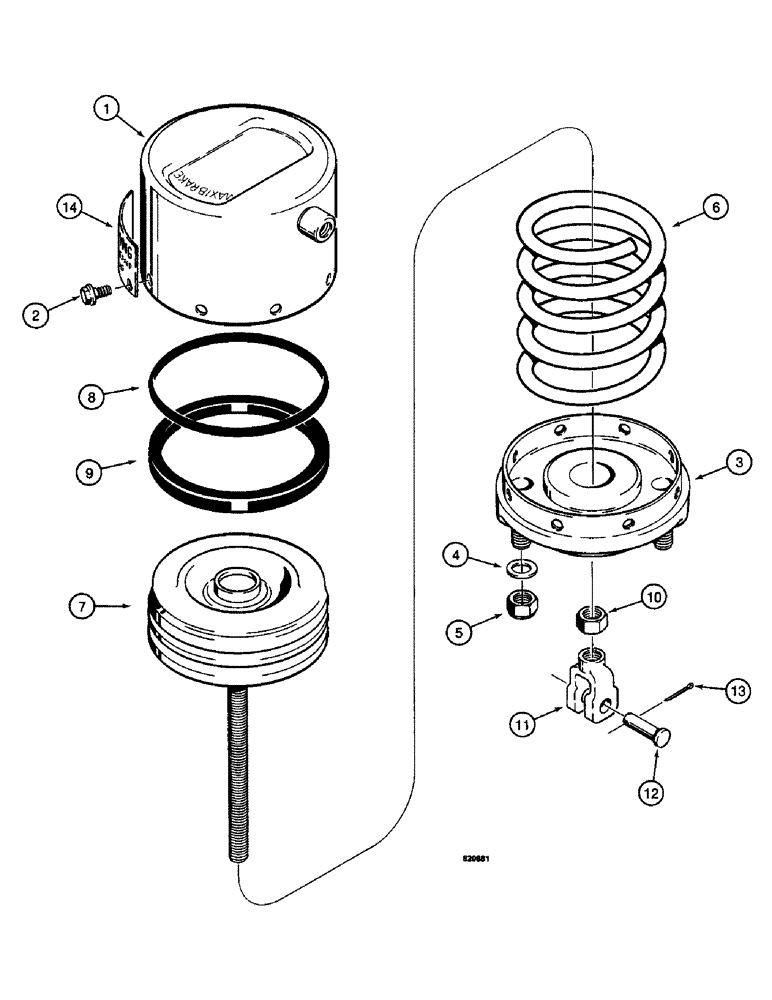

Запчасти Case W14 (434) - L61187 PARKING BRAKE ACTUATOR (07) - BRAKES

L61187

CHAMBER

PARKING BRAKE ACTUATOR ASSEMBLY, Includes: Ref. 1 - 14

1шт.

1

N8228

CYLINDER ASSY.

CYLINDER - parking brake actuator

1шт.

2

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

- hex head flange, 5/16"-24 NF x 1/2"

8шт.

3

N6900

PLATE

- mounting

1шт.

4

S114369

WASHER

- special

2шт.

5

131-377

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8"-18 NF

2шт.

6

S94248

SPRING

- piston

1шт.

7

N8229

PISTON

- cylinder

1шт.

8

S89899

O-RING

- piston

1шт.

9

S89912

WIPER

- felt ring

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - hex, 5/8"-11 NC

1шт.

11

S84585

YOKE

AND PIN ASSEMBLY - parking brake actuator, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

CLEVIS PIN - special

1шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - warning

1шт.
