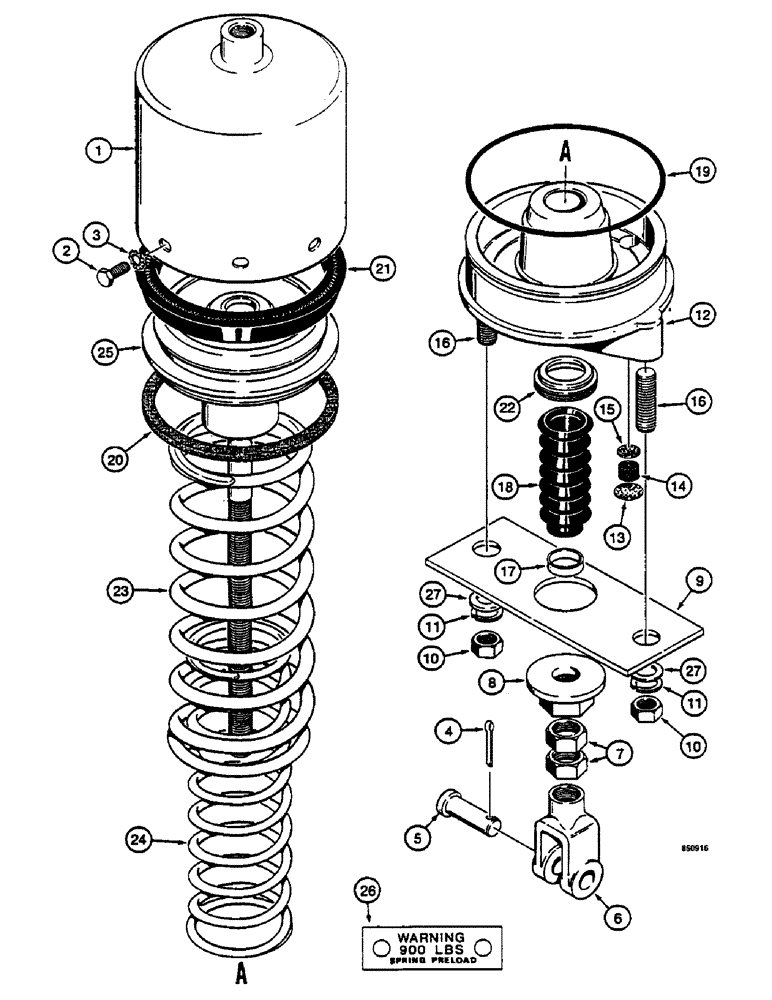

Запчасти Case W14 (432) - L48127 PARKING BRAKE ACTUATOR (07) - BRAKES

L48127

CHAMBER

PARKING BRAKE ACTUATOR ASSEMBLY - Wagner Electric No. AE-71899, Includes: Ref. 1 - 27

1шт.

1

L33640

CYLINDER

- parking brake actuator

1шт.

2

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

3

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal-external tooth lock, 5/16"

8шт.

4

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

5

L33649

AXLE PIN

CLEVIS PIN - special

1шт.

6

L33648

CLEVIS COUPLING

CLEVIS - piston rod

1шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8"-11 NC

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE AND NUT - stop

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8"-11 NC

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

L33642

HEAD ASSEMBLY - parking brake actuator, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

HEAD - spring retaining

1шт.

13

L32540

RETAINER

- breather

1шт.

14

L32539

FILTER CARTRIDGE

FILTER - breather

1шт.

15

L32538

SCREEN

- breather

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - head mounting

2шт.

L33650

KIT

- repair, parking brake actuator, Includes: Ref. 17 - 21

1шт.

17

L33656

STRAP

RETAINER - boot, outer

1шт.

18

L33655

BOOT

- rod protector

1шт.

19

L33654

O-RING,4-3/8" ID x 0.139" Width

1шт.

20

L33653

RETAINER

SEAL - felt, piston

1шт.

21

L33652

SEAL

CUP SEAL - piston

1шт.

22

L33644

RETAINER

- boot, inner

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - piston, outer

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston, inner

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON AND PUSH ROD ASSEMBLY - cylinder

1шт.

26

L33921

TAG - service information

1шт.

27

95-10

WASHER,5/8"

- flat, 5/8"

2шт.
