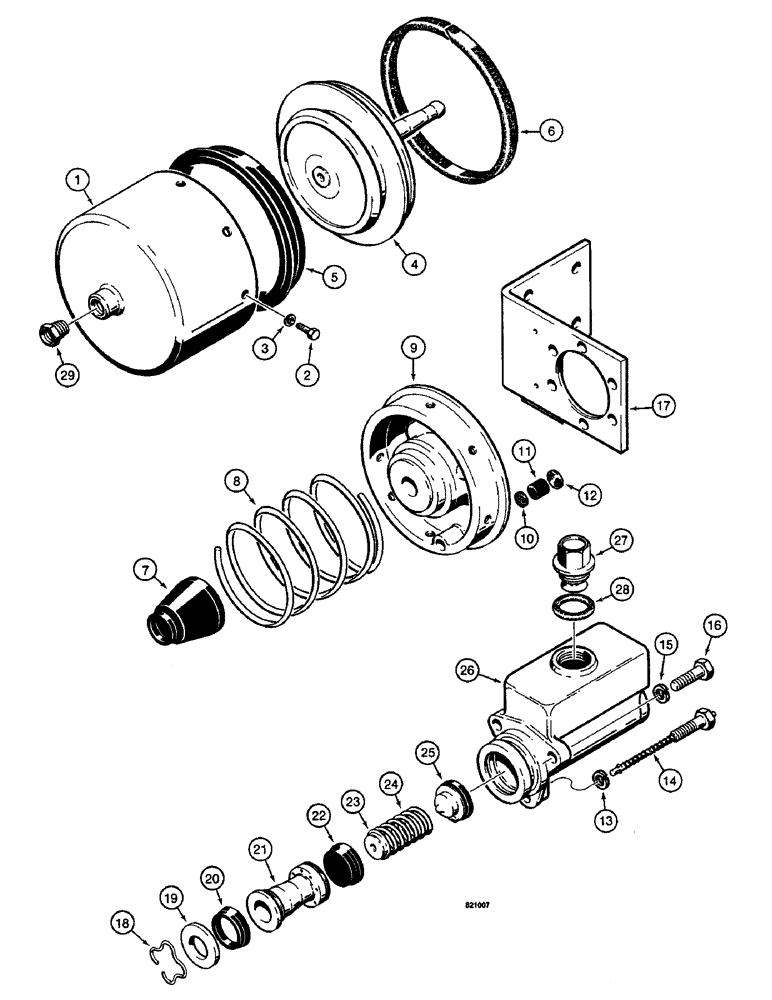

Запчасти Case W14 (430) - L111262 BRAKE ACTUATOR (07) - BRAKES

L111262

CLUSTER

BRAKE ACTUATOR - Wagner No. AE-105280, Includes: Ref. 1 - 29

2шт.

L53665

CYLINDER ASSY.

AIR CHAMBER ASSEMBLY - brake actuator, Includes: Ref. 1 - 16

1шт.

1

L35350

SHELL

COVER - air chamber assembly

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

3

92-5

LOCK WASHER,5/16"

8шт.

4

L35349

PISTON

AND ROD ASSEMBLY - air chamber

1шт.

5

L33652

SEAL

CUP - piston packing, air chamber

1шт.

Part of repair kit, P/N N8319

1шт.

6

L33653

RETAINER

WIPER SEAL - piston, air chamber

1шт.

Part of repair kit, P/N N8319

1шт.

7

L32550

BOOT

- piston rod

1шт.

Part of repair kit, P/N N8319

1шт.

8

L35348

VALVE SPRING

SPRING - piston return

1шт.

L35347

HEAD

ASSEMBLY - air chamber

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - air chamber

1шт.

10

L32538

SCREEN

- filter

1шт.

11

L32539

FILTER CARTRIDGE

FILTER - air chamber

1шт.

12

L32540

RETAINER

- filter

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D77620

INDICATOR

- stroke

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

17

L32542

BRACKET

- mounting, actuator

1шт.

N8315

MASTER CYLINDER

CYLINDER ASSEMBLY - master, brake actuator, Includes: Ref. 18 - 28

1шт.

18

T39011

LOCKING DEVICE

WIRE - lock

1шт.

Part of repair kit, P/N N8319

1шт.

19

T39010

PLATE

- stop, piston

1шт.

N8620

KIT

- repair, piston with cup, Includes: Ref. 20 and 21

1шт.

Part of repair kit, P/N N8319

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder

1шт.

Part of repair kit, P/N N8319

1шт.

20

NSS

NOT SOLD SEPARAT

CUP - piston packing, master cylinder (replaces N8317)

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

22

N8318

CUP

- piston

1шт.

Part of repair kit, P/N N8319

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT - piston and spring

1шт.

Part of repair kit, P/N N8319

1шт.

24

T39006

VALVE SPRING

SPRING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

CHECK VALVE - master cylinder

1шт.

Part of repair kit, P/N N8319

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

27

D77618

CAP

- filler

1шт.

28

D46693

GASKET

- cap

1шт.

Part of repair kit, P/N N8319

1шт.

29

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

1шт.

N8319

KIT

- repair, Includes: Refs. 5, 6, 7, 18, 22, 23, 25, 28 and P/N N8620, Piston Assembly

1шт.
