Артикул
Название
Примечание
Количество
L113007
CYLINDER

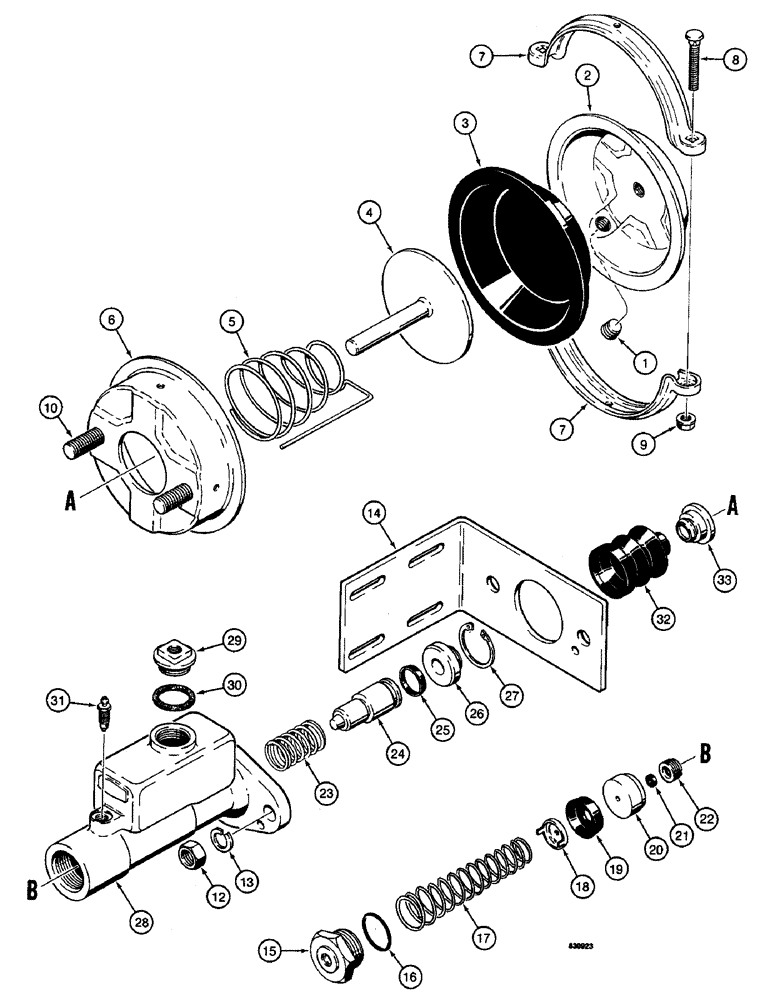

BRAKE ACTUATOR - Minn. Auto. No. 02-460-503, Includes: Ref. 1 - 33
2шт.
N8693
ACTUATOR
AIR CHAMBER ASSEMBLY - brake actuator, Includes: Ref. 1 - 13
1шт.
2
NSS
NOT SOLD SEPARAT
COVER - air chamber
1шт.
3
N8698
DIAPHRAGM
- air chamber
1шт.
4
NSS
NOT SOLD SEPARAT
PUSH ROD - brake actuator
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - diaphragm return
1шт.
6
NSS
NOT SOLD SEPARAT
BODY - air chamber
1шт.
7
NSS
NOT SOLD SEPARAT
CLAMP - air chamber
2шт.
8
NSS
NOT SOLD SEPARAT
BOLT - special
2шт.
9
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
10
NSS
NOT SOLD SEPARAT
STUD - air chamber
2шт.
11
NSS
NOT SOLD SEPARAT
PLATE - air chamber, not shown
2шт.
12
129-127
NUT,5/8"-18, G5
2шт.
13
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
14
N8694
SUPPORT
BRACKET - mounting
1шт.
N8695
CYLINDER,200mm Stroke
MASTER CYLINDER - brake actuator, Includes: Ref. 15 - 31
1шт.
15
NSS
NOT SOLD SEPARAT
END PLUG - master cylinder
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
17
N8700
SPRING
- return
1шт.
18
NSS
NOT SOLD SEPARAT
RETAINER - spring
1шт.
19
NSS
NOT SOLD SEPARAT
CUP - retainer
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
20
NSS
NOT SOLD SEPARAT
PISTON - short
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - piston
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
22
NSS
NOT SOLD SEPARAT
RETAINER - seat
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
23
NSS
NOT SOLD SEPARAT
SPRING - piston
1шт.
24
NSS
NOT SOLD SEPARAT
PISTON - long
1шт.
25
NSS
NOT SOLD SEPARAT
SEAL - cup
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
26
NSS
NOT SOLD SEPARAT
BEARING - master cylinder
1шт.
27
NSS
NOT SOLD SEPARAT
RETAINING RING - bearing
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
28
NSS
NOT SOLD SEPARAT
HOUSING - master cylinder
1шт.
29
N8701
PLUG
- filler
1шт.
30
S114797
SEAL,31.75mm ID x 41.27mm OD x 1.59mm Thk
- filler plug
1шт.
Part of master cylinder repair kit, P/N N8937
1шт.
31
S107710
SCREW
- air removal
1шт.
32
N8696
BOOT
- brake actuator
1шт.
33
N8697
GUIDE
- brake actuator
1шт.
N8937
KIT
- master cylinder repair, Includes: Refs. 16, 19, 20, 21, 22, 25, 27 and 30, and a check valve and seat not used in this actuator
1шт.
Выбрано товаров: 45
