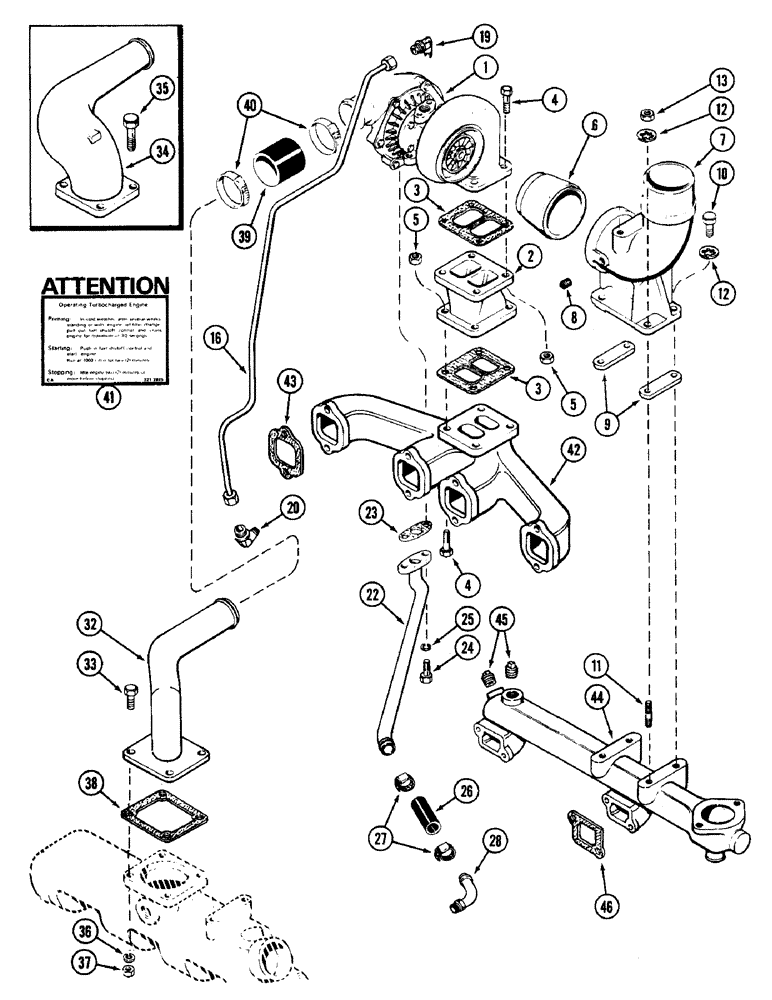

Запчасти Case W14 (022) - TURBOCHARGER CONVERSION KIT, TO ADAPT A NATURAL ASPIRATED ENG. TO A TURBOCHARGED ENG. (02) - ENGINE

A42987

KIT

CONVERSION KIT - turbocharger, Includes: Ref. 1 - 46

1шт.

1

A157337

TURBOCHARGER

ASSEMBLY - engine, new (Replaces A151278)

1шт.

1

A48194

REMAN-TURBOCHARGER

Turbocharger Assembly (Remanufactured) (Order for repairs)

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit.

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base (upper and lower)

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

5

131-903

NUT,3/8"-16

NUT - hex Seez-pruf, 3/8 inch NC

8шт.

6

A65554

TUBE

CONNECTOR - exhaust elbow (Replaces A58896)

1шт.

7

A61941

ELBOW

- exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

9

A59237

SPACER

- elbow to water manifold

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

11

A59077

STUD

- mounting

1шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

13

131-903

NUT,3/8"-16

NUT - hex Seez-pruf, 3/8 inch NC

1шт.

16

A155669

TUBE

ASSEMBLY - oil supply

1шт.

19

222-4047

ELBOW

- 90 degree, 1/4 inch PT

1шт.

20

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 90 degree, 3/8 inch PT

1шт.

22

A59228

TUBE

ASSEMBLY - oil drain

1шт.

23

A58892

GASKET,1.59mm Thk

- drain, Serial Range: tube-turbocharger

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

28

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

32

A150450

ELBOW

- air intake (formed tube) (Replaces A77242)

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Used with A150450 elbow)

4шт.

34

A58903

ELBOW UNION

ELBOW - air intake (cast iron) (Order A150450)

1шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Used with A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

38

A58910

GASKET

-, Serial Range: elbow-manifold

1шт.

39

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Elbow (Replaces A58894) 2.00" ID x 2.88"

1шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

41

321-2605

DECAL

- turbocharger operating procedure

1шт.

42

A61001

MANIFOLD

- exhaust

1шт.

43

A58895

GASKET

- exhaust manifold (metal faced)

4шт.

44

A141963

MANIFOLD

ASSEMBLY - water, Includes: Ref. 45

1шт.

45

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2 inch PT (upper plug not used this application)

2шт.

46

A58637

MANIFOLD GASKET

- water manifold

2шт.
