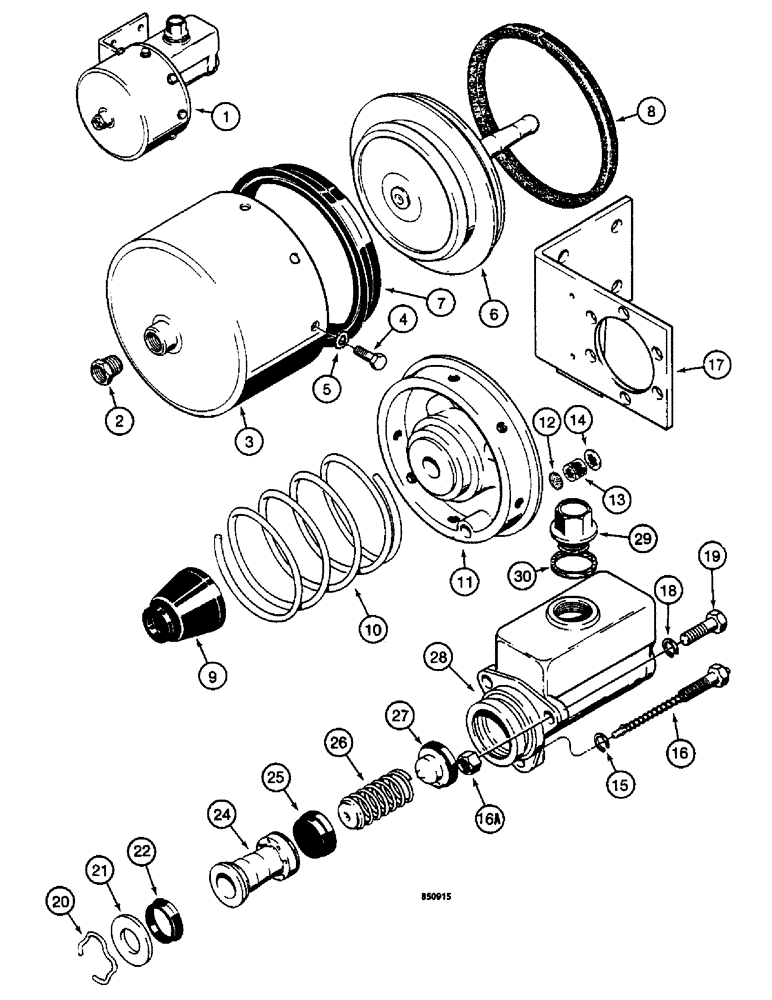

Запчасти Case W14 (414) - L50885 AND L76809 BRAKE ACTUATORS (07) - BRAKES

1

L50885

CLUSTER

BRAKE ACTUATOR - drum brakes, Wagner No. AC-35954, Includes: Ref. 2 - 30

2шт.

1

L76809

CLUSTER

BRAKE ACTUATOR - disc brakes, Wagner Electric No. AE-837-L, no longer available, order L111262 brake actuator, Figure 430, Includes: Ref. 2 - 30

2шт.

L53665

CYLINDER ASSY.

AIR CHAMBER ASSEMBLY - brake, Includes: Ref. 2 - 16

1шт.

2

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

1шт.

3

L35350

SHELL

COVER - air chamber assembly

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

L35349

PISTON

AND ROD ASSEMBLY - air chamber

1шт.

7

L33652

SEAL

CUP - piston packing, air chamber

1шт.

Part of repair kit, P/N L35346

1шт.

8

L33653

RETAINER

WIPER SEAL - piston, air chamber

1шт.

Part of repair kit, P/N L35346

1шт.

9

L32550

BOOT

- piston rod

1шт.

Part of repair kit, P/N L35346

1шт.

10

L35348

VALVE SPRING

SPRING - return, piston

1шт.

L35347

HEAD

ASSEMBLY - air chamber, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - air chamber

1шт.

12

L32538

SCREEN

- filter

1шт.

13

L32539

FILTER CARTRIDGE

FILTER - air

1шт.

14

L32540

RETAINER

- filter

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

D77620

INDICATOR

- stroke

1шт.

16a

129-123

NUT,3/8"-24, G5

2шт.

17

L32542

BRACKET

- mounting, actuator

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex head, 3/8"-24 NF x 1"

2шт.

L35635

CYLINDER BLOCK

CYLINDER ASSEMBLY - master, hydraulic, Includes: Ref. 20 - 30

1шт.

20

T39011

LOCKING DEVICE

WIRE - lock

1шт.

Part of repair kit, P/N L35346

1шт.

21

T39010

PLATE

- stop, piston

1шт.

T39008

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

CUP - piston packing, master cylinder

1шт.

23

RESERVED

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - master cylinder (1 1/4" Diam.)

1шт.

Part of repair kit, P/N L35346

1шт.

25

T39007

SEAL

SEAT - piston and spring

1шт.

Part of repair kit, P/N L35346

1шт.

26

T39006

VALVE SPRING

SPRING - piston

1шт.

27

T39164

VALVE

ASSEMBLY - check

1шт.

Part of repair kit, P/N L35346

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

L32545

PLUG

- filler, special, use on L50885 brake actuator

1шт.

29

D77618

CAP

PLUG - filler, special, use on L76809 brake actuator

1шт.

30

D46693

GASKET

- plug

1шт.

L35346

KIT

- repair, Includes: Refs. 7, 8, 9, 20, 24, 25 and 27

1шт.
