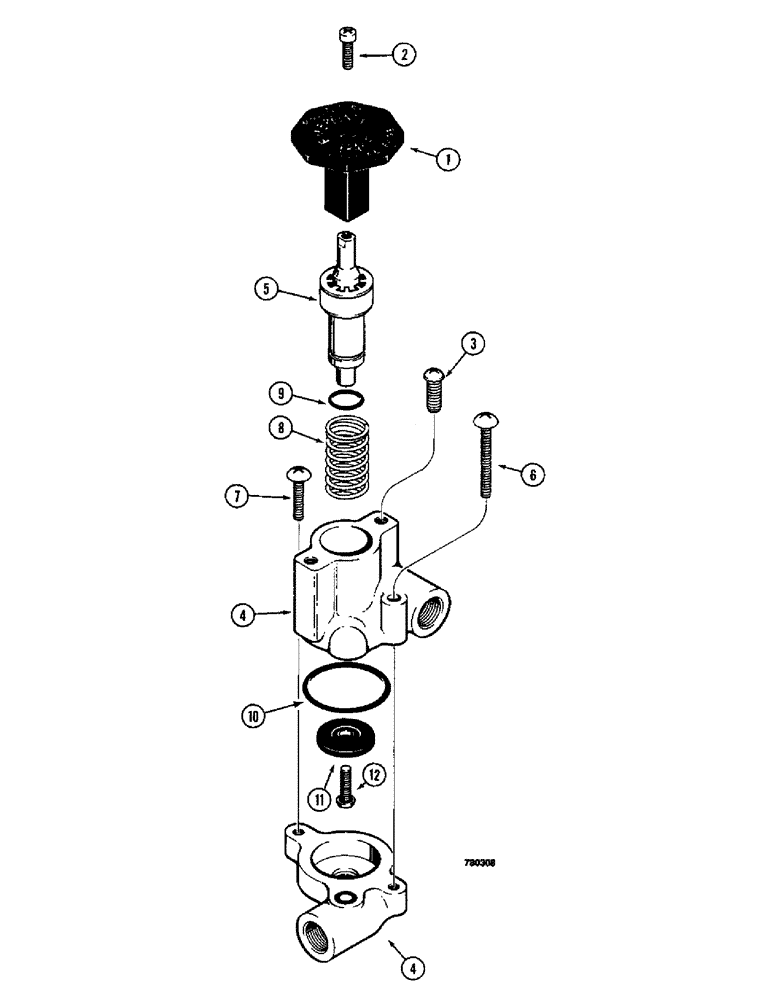

Запчасти Case W14 (410) - L52178 PARKING BRAKE VALVE (07) - BRAKES

L52178

VALVE

- parking brake, no longer available, order L36199 parking brake valve kit, see figure 406, Includes: Ref. 1 - 12

1шт.

1

L36025

KNOB

- valve

1шт.

2

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- Phillips head, No. 8 - 32 NC x 3/8"

1шт.

3

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- slotted head, 1/4"-20 NC x 1/2"

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - upper and lower

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - long

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - short

1шт.

D80516

KIT

- repair, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - stem

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - poppet

1шт.
