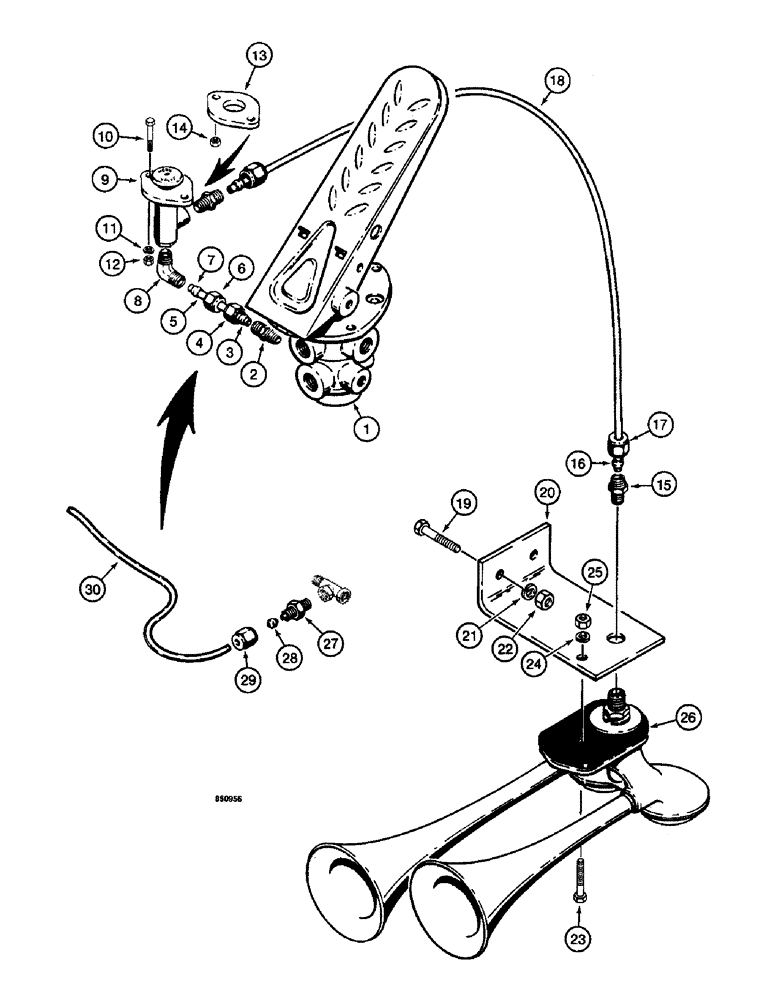

Запчасти Case W14 (404) - BRAKE SYSTEM, TREADLE TO HORN (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - brake, parts list figure 408, Includes: Ref. 2 - 4

2шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

3

222-2610

SLEEVE

- connector

1шт.

4

222-2600

NUT

NUT - connector

1шт.

5

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 2-15/16" (74 mm) length

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 6 - 8

1шт.

6

222-2600

NUT

NUT - elbow

1шт.

7

222-2610

SLEEVE

- elbow

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

9

L12647

VALVE

- horn, parts list figure 440

1шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

2шт.

13

L114090

SPACER

- valve

1шт.

14

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 15 - 17

2шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - connector

1шт.

17

NSS

NOT SOLD SEPARAT

NUT - connector

1шт.

18

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 43" (1092 mm) length

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

L48196

BRACKET

- bolt on, if used

1шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

23

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16"-18 NC x 1-1/4"

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

1шт.

26

REF

INSTRUCTION

HORN - parts list figure 446

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

CONNECTOR - tube

1шт.

28

222-2610

SLEEVE

- connector

1шт.

29

222-2600

NUT

NUT - connector

1шт.

30

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 30" (762 mm) length

1шт.
