Запчасти Case W14 (402) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND HYDRAULIC RESERVOIR (07) - BRAKES

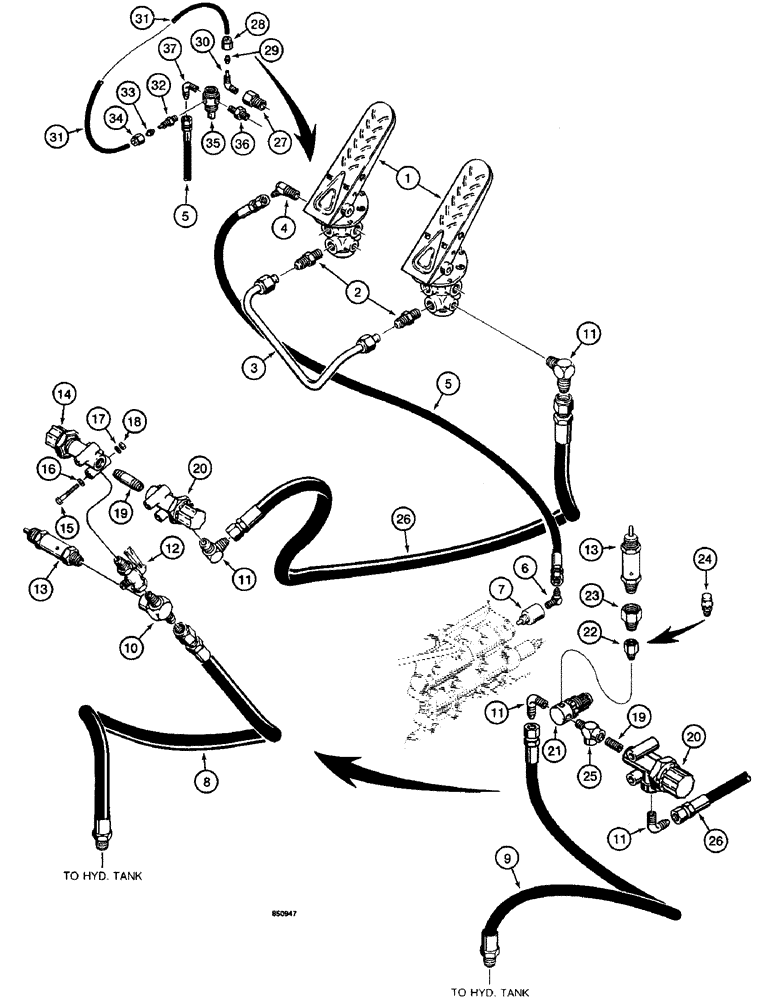

Схема запчастей Case W14 - (402) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND HYDRAULIC RESERVOIR (07) - BRAKES

Артикул

Название

Примечание

Количество

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - parts list figure 408

2шт.

2

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

2шт.

3

L48137

TUBE,0.625" OD

- connecting, treadles

1шт.

4

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degree, used without automatic clutch disconnect

1шт.

5

L48061

HOSE

- 52" (1321 mm) long

1шт.

6

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

7

L117120

CYLINDER

- clutch cutout, parts list figure 443A

1шт.

8

L48026

HOSE

- 16" (406 mm) long, Serial Range: -9151763

1шт.

9

L53615

HOSE ASSY.

HOSE - 21" (53 mm) long, Start Serial: 9151763

1шт.

9

L53615

HOSE ASSY.

HOSE - 21" (53 mm) long, Serial Range: -9151763

1шт.

10

L51238

FITTING

- tee, air supply, Serial Range: -9151763

1шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

2-3шт.

12

L53739

VALVE

- shutoff, Serial Range: -9151763

1шт.

13

L55268

VALVE

- relief

1шт.

14

L48129

VALVE

- pressure regulator, parts list figure 436, Serial Range: -9151763

1шт.

15

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

16

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

19

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - 1/4" NPT x 15/16"

1шт.

20

L13530

VALVE

- pressure protection, parts list figure 440

1шт.

21

L112300

VALVE

- pressure reducing, parts list figure 438, Start Serial: 9151763

1шт.

22

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

- straight, 1/8" NPT x 1/4" NPT, used with Ref. 13, L55268 valve, if used

1шт.

23

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

- straight, 1/4" NPT x 3/8" NPT, used with Ref. 13, L55268 valve, if used

1шт.

24

R15536

VALVE

- relief

1шт.

25

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4" NPT, Start Serial: 9151763

1шт.

26

L48025

HOSE

- 23" (584 mm) long

1шт.

27

221-87

REDUCER,1/2" NPT x 1/8" NPT

- 1/2" NPT x 1/8" NPT, used with automatic clutch disconnect

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

28

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

29

222-2610

SLEEVE

- fitting

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- 1/4" (6 mm) OD x 210" (5340 mm) long, cut to 10" (254 mm) length

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

33

222-2610

SLEEVE

- fitting

1шт.

34

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

35

L109922

VALVE

- pilot, parts list figure 442

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

36

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - male, straight

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

37

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

Part of clutch disconnect kit, P/N L36270

1шт.

L36270

KIT

- clutch disconnect, Includes: Refs. 27, 31, 35, 36, 37, P/N's 222-2640 and 222-2625, and additional Refs. not used on this model, Serial Range: -9151870

1шт.

Prevents driving thru an engaged parking brake.

1шт.

Выбрано товаров: 49
