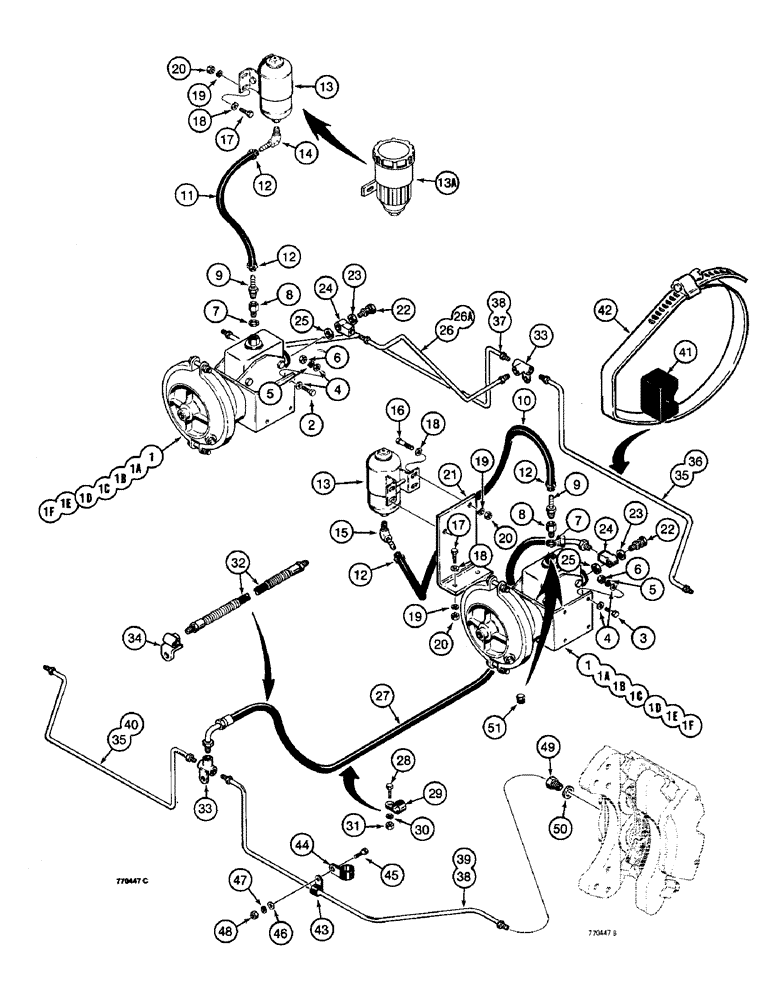

Запчасти Case W14 (398) - BRAKE SYSTEM, BRAKE ACTUATOR TO WHEEL CYLINDERS - MODELS WITH DISC BRAKES (07) - BRAKES

1

L76809

CLUSTER

BRAKE ACTUATOR - Wagner part No. AE-837-L, not shown, parts list figure 414, no longer available, order L111262 brake actuator

2шт.

1a

L111262

CLUSTER

BRAKE ACTUATOR - Wagner part No. AE-105280, not shown, service only, parts list figure 430

2шт.

1b

L77529

CYLINDER

BRAKE ACTUATOR - Wagner part No. AF-89551, parts list figure 416, order L113007 brake actuator

2шт.

1c

L103952

CYLINDER BLOCK

BRAKE ACTUATOR - used on PIN 9129338 - PIN 9141845, Wagner part No. AF-99581, parts list figure 418, order L113007 brake actuator

2шт.

1d

L107985

CYLINDER BLOCK

BRAKE ACTUATOR - used on PIN 9141845 - 9151762, Wagner part No. AF-104381, parts list figure 418, order L113007 brake actuator

2шт.

1e

L112959

CLUSTER

BRAKE ACTUATOR - used on PIN 9151763 - 9154753, Wagner part No. AF-105171, parts list figure 422, order L113007 brake actuator

2шт.

1f

L113007

CYLINDER

BRAKE ACTUATOR - Minn. Auto. part No. 02-460-503, parts list figure 428, Start Serial: 9154754

2шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

7

A12988

GASKET

- fitting, Serial Range: -9154754

2шт.

8

L76300

CONNECTOR, ELEC

STEM FITTING - straight, Serial Range: -9154754

2шт.

9

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight

1-3шт.

9a

217-282

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, not shown

1шт.

10

L76909

HOSE ASSY.

HOSE - 1/4" (6 mm) ID x 6" (152 mm), if used

1шт.

10

L109425

HOSE,0.25" ID x 4.13"

- 1/4" (6 mm) ID x 4-1/8" (105 mm), if used

1шт.

11

L71341

HOSE

- 1/4" (6 mm) ID x 15-1/2" (394 mm) L76809 brake actuator

1шт.

11

L109194

HOSE

- 1/4" (6 mm) ID x 21" (533 mm) L77529 brake actuator and after

1шт.

12

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2-4шт.

13

L71025

RESERVOIR

- brake fluid, parts list figure 448, order L114928 reservoir

1-2шт.

13a

L114928

RESERVOIR ASSY.

RESERVOIR - brake fluid, parts list figure 450

1шт.

14

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, if used

1-2шт.

15

217-282

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 45 degree, if used

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2-4шт.

18

95-6

WASHER,3/8"

- flat, 3/8"

2-6шт.

19

92-6

LOCK WASHER,3/8"

2-6шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2-6шт.

21

L78812

BRACKET

- reservoir, if used

1шт.

22

A12864

BOLT

- special, tube fitting

2шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, .600" (15.24 mm) ID

2шт.

24

A18531

FITTING

- brake, Serial Range: actuator-tube

2шт.

25

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, .540" (13.72 mm) ID

2шт.

26

L76884

TUBE

- front, used with L76809 brake actuator

1шт.

26a

L78718

TUBE,0.25" OD

- front, used with L77529 brake actuator and after

1шт.

27

L51779

HOSE ASSY.,6.35mm ID x 546.1mm L

HOSE - with bent tube ends, if used

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used with L51779 hose

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8"

1шт.

32

L104445

HOSE,3.17mm ID x 533.4mm L

- with wire cover, if used

1шт.

33

A12452

FITTING

TEE - special, used with L51779 hose, if used

1шт.

34

L52637

TEE

- special, used with L104445 hose on rear brakes

1-2шт.

35

L77165

TUBE

- use with D77374 caliper, see figure 336

2шт.

36

L105052

TUBE,0.25" OD

- use with L73912 caliper, see figure 338

1шт.

37

L105054

TUBE,0.25" OD

- use with L73913 caliper, see figure 338

1шт.

38

L77167

TUBE,0.25" OD

- use with D77374 caliper, see figure 336

2шт.

39

L105822

TUBE ASSY.,0.25" OD

TUBE - use with L73912 and L105825 calipers, see figure 338 and 340

1шт.

40

L105824

TUBE ASSY.,0.25" OD

TUBE - use with L73913 and L105825 calipers, see figure 338 and 340

1шт.

41

L51239

SUPPORT ASSY.

MOUNT - tube, if used

4шт.

42

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - brake tube, if used

4шт.

43

49851

SHIELD

- brake tube

4шт.

44

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- to axle bolt

4шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

46

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

49

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- male, if used

4шт.

50

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter, .540" (13.72 mm) ID

4шт.

51

A12888

FILLER CAP

PLUG - brake actuator, if used

1шт.
