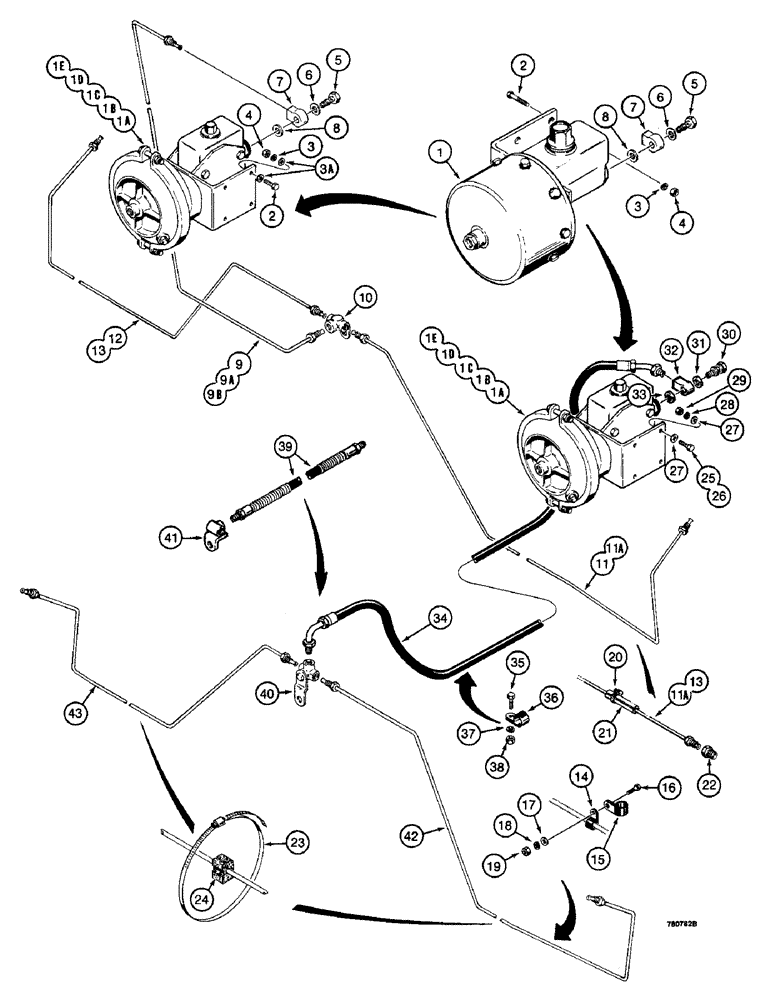

Запчасти Case W14 (394) - BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS - MODELS WITH DRUM BRAKES (07) - BRAKES

1

L50885

CLUSTER

BRAKE ACTUATOR - Wagner part No. AC-35954, parts list figure 414

2шт.

1a

L77758

CLUSTER

BRAKE ACTUATOR - Wagner part No. AF-89552, parts list figure 416, order L112001 brake actuator

2шт.

1b

L103953

BRAKE ACTUATOR - used on PIN 9129338 - PIN 9141845, Wagner part No. AF-99582, parts list figure 418, order L112001 brake actuator

2шт.

1c

L107986

BRAKE ACTUATOR - Wagner part No. AF-104382, parts list figure 418, order L112001 brake actuator, Start Serial: 9141837

2шт.

1d

L112958

CLUSTER

BRAKE ACTUATOR - used on PIN 9151763 - 9151869, Wagner part No. AF-105172, parts list figure 422, order L112001 brake actuator

2шт.

1e

L112001

ACTUATOR

BRAKE ACTUATOR - MICO No. 02-460-501, parts list figure 426, Start Serial: 9151870

2шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

3a

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

5

A12864

BOLT

- special, tube fitting

1шт.

6

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, 600" (15.24 mm) ID

1шт.

7

A18531

FITTING

- brake, Serial Range: actuator-tube

1шт.

8

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, 540" (13.72 mm) ID

1шт.

9

L51189

TUBE,0.25" OD

- used, Serial Range: -9125677

1шт.

9a

L76884

TUBE

- with L50885 brake actuator, Start Serial: 9125677

1шт.

9b

L78718

TUBE,0.25" OD

- used with L77758 brake actuator and after

1шт.

10

L52637

TEE

- special

1шт.

11

L51184

TUBE,0.25" OD

- right-hand wheel cylinder, front

1шт.

11a

L70678

TUBE - right-hand wheel cylinder, front, forestry model, no longer available, order L51184 tube 0.25" OD x 26.24, 3.93" L

1шт.

12

L51186

TUBE,0.25" OD

- left-hand wheel cylinder, front

1шт.

13

L70682

TUBE - left-hand wheel cylinder, front forestry model, no longer available, order L51186 tube 0.25" OD x 28.04, 3.93" L

1шт.

14

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

4шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- to axle bolt

4шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- 3/8"-16 NC

4шт.

20

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose, used with L70678 and L70682 tubes

2шт.

21

L51446

HOSE ASSY.

HOSE - tube guard, used with L70678 and L70682 tubes

2шт.

22

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

- male, used with L70678 and L70682 tubes

2шт.

23

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - brake tube, if used

4шт.

24

L51239

SUPPORT ASSY.

MOUNT - tube, if used

4шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

W14H only Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2", W14 and W14FL

2шт.

27

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- 3/8"-16 NC, not used with 13-612 bolt

2шт.

30

A12864

BOLT

- special, tube fitting

2шт.

31

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, 600" (15.24 mm) ID

1шт.

32

A18531

FITTING

- brake, Serial Range: actuator-tube

1шт.

33

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, 540" (13.72 mm) ID

1шт.

34

L51779

HOSE ASSY.,6.35mm ID x 546.1mm L

HOSE - with bent tube ends, if used

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

36

49885

CLAMP

- hose, used with L51779 hose

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- 3/8"-16 NC

1шт.

39

L104445

HOSE,3.17mm ID x 533.4mm L

- with wire cover, if used

1шт.

40

A12452

FITTING

TEE - special, used with L51779 hose, if used

1шт.

41

L52637

TEE

- special, used with L104445 hose

1шт.

42

L51186

TUBE,0.25" OD

- right-hand wheel cylinder, rear

1шт.

43

L51184

TUBE,0.25" OD

- left-hand wheel cylinder, rear

1шт.
