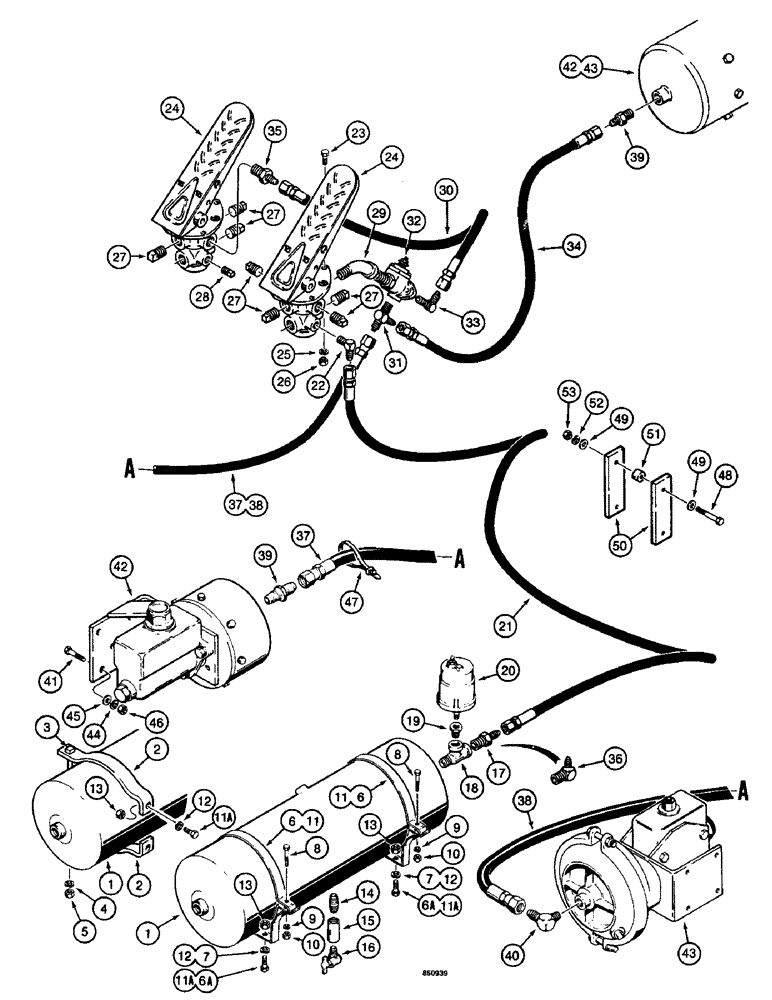

Запчасти Case W14 (390) - BRAKE SYSTEM, AIR RESERVOIR TO TREADLES AND MASTER CYLINDERS (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system

1шт.

L12632

BRACKET

ASSEMBLY - reservoir mounting, if used, Includes: Ref. 2 - 5

2шт.

2

L32871

SUPPORT

BRACKET - mounting, reservoir

2шт.

3

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- square head, 3/8"-16 NC x 6"

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

6

L58765

BRACKET

ASSEMBLY - reservoir mounting, if used

2шт.

6a

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4"-20 NC x 1-1/4", used with L58765 bracket

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with L58765 bracket 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

- 1/4"-20 NC, Used with L58765 bracket

2шт.

11

D35074

BAND

BRACKET ASSEMBLY - if used

2шт.

11a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

14

221-1134

PIPE

FITTING - nipple, 1/4" NPT x 1-1/2" long

1шт.

15

221-1336

COUPLING,Pipe, 1/4" NPT

FITTING - coupling, 1/4" NPT

1шт.

16

L112624

LOCK VALVE

DRAIN - moisture, reservoir

1шт.

17

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

FITTING - male, straight

1шт.

18

221-1693

TEE,Street, 1/2" NPT

- 1/2" NPT, if used, Serial Range: -9154965

1шт.

19

221-1054

BUSHING

REDUCER - 1/2" x 1/8" NPT, if used, Start Serial: 9154965

1шт.

20

L109945

TRANSMITTER

SENDER - air pressure, if used, Serial Range: -9154965

1шт.

21

L51312

HOSE

- reservoir to left-hand treadle, 81" (2057 mm) long

1шт.

22

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - male, 90 degree

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

24

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - parts list figure 408

2шт.

25

92-5

LOCK WASHER,5/16"

6шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

6шт.

27

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

6-7шт.

28

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT, if used

1шт.

29

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- 45 degree

1шт.

30

L52020

HOSE

- 15" (381 mm) long

1шт.

31

218-626

TEE,9/16"-18, 37º x 3/8"-18, NPTF Run

- male

1шт.

32

L48128

VALVE

- double check, parts list figure 436

1шт.

33

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

34

L51323

HOSE ASSY.

HOSE - brake, 28" (711 mm) long

1шт.

35

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

36

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, street, auxiliary steering only

1шт.

37

L78852

AIR HOSE,0.38" ID x 104.00", SAE 30R2 Type 1

HOSE 0.38" ID x 104.00", SAE 30R2 Type 1

1шт.

38

L51312

HOSE

- 81" (2057 mm) long

1шт.

39

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1-2шт.

40

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree male, if used

1шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Front cylinder Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2", rear cylinder, used on W14 and W14FL

2шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

42

REF

INSTRUCTION

BRAKE ACTUATOR - see Figures 414-430

2шт.

43

REF

INSTRUCTION

BRAKE ACTUATOR - see Figures 414-430

2шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

95-6

WASHER,3/8"

- flat, , rear cylinder 3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

48

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

49

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

50

L50641

CONNECTING STRIP

PLATE - mounting

4шт.

51

D95745

BUSHING

SPACER - hose strap

2шт.

52

92-6

LOCK WASHER,3/8"

4шт.

53

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.
