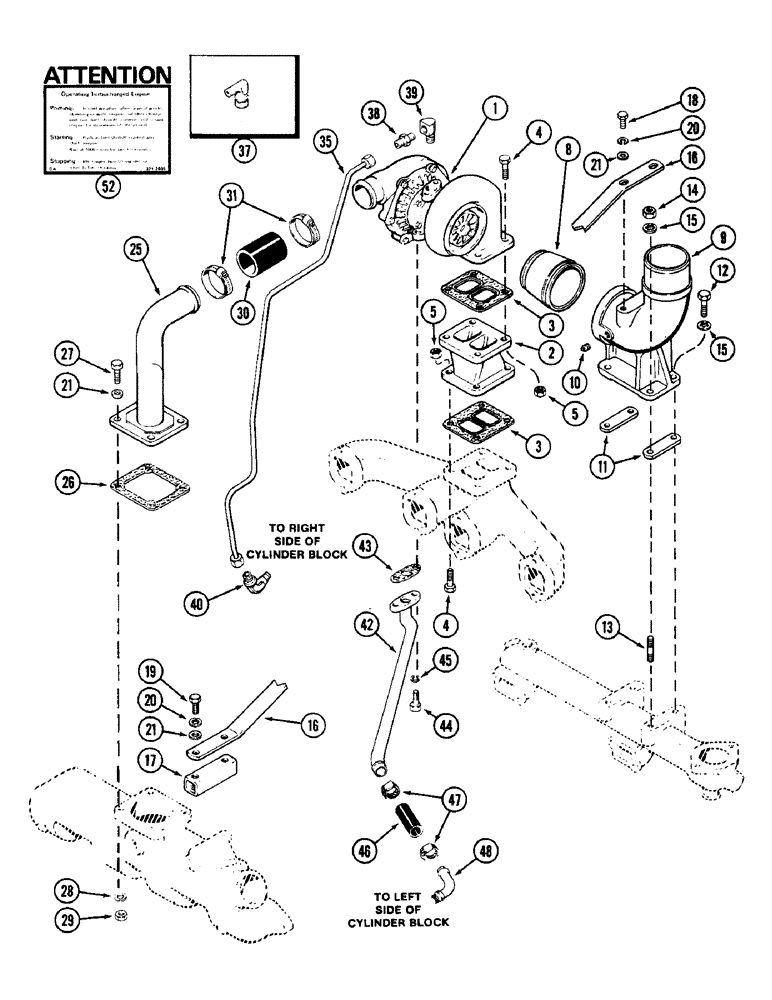

Запчасти Case W14 (020) - TURBOCHARGER SYSTEM, 336BDT ALTITUDE COMPENSATING ENGINE (02) - ENGINE

1

A157337

TURBOCHARGER

ASSEMBLY - engine, New (Replaces A151278)

1шт.

1

A48194

REMAN-TURBOCHARGER

Turbocharger Assembly, remanufactured (Replaces A47599)

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit (Replaces A47598)

1шт.

2

A61002

ADAPTER

BASE - turbocharger to exhaust manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base (upper and lower)

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

5

131-903

NUT,3/8"-16

NUT - hex Seez-pruf, 3/8 inch NC

8шт.

8

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

9

A61941

ELBOW

- exhaust

1шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

11

A59237

SPACER

- exhaust elbow

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

13

A59077

STUD

- elbow (Replaces A58689)

1шт.

14

131-903

NUT,3/8"-16

NUT - hex Seez-pruf, 3/8 inch NC

4шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

16

A61942

BRACE

- exhaust elbow

1шт.

17

A67057

SPACER

- brace to intake manifold

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

95-6

WASHER,3/8"

- flat, 3/8 x 1 x 1/16 inch (10 x 25 x 2 mm)

8шт.

25

A150450

ELBOW

- air intake (Replaces A77242)

1шт.

26

A58910

GASKET

-, Serial Range: elbow-manifold

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

30

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

(Replaces A58894) 2.00" ID x 2.88"

1шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A155669

TUBE

ASSEMBLY - turbo oil supply (Replaces A62477)

1шт.

37

222-4047

ELBOW

- oil supply tube to turbocharger (W14H and W14FL, if equipped)

1шт.

38

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - oil supply tube to turbocharger

1шт.

39

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree, oil supply tube

1шт.

40

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- oil supply tube to block

1шт.

42

A59228

TUBE

- turbocharger oil drain

1шт.

43

A58892

GASKET,1.59mm Thk

- drain tube

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube

1шт.

47

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

2шт.

48

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

52

321-2605

DECAL

- operating procedure

1шт.
