Запчасти Case W14 (388) - ALCOHOL EVAPORATOR (07) - BRAKES

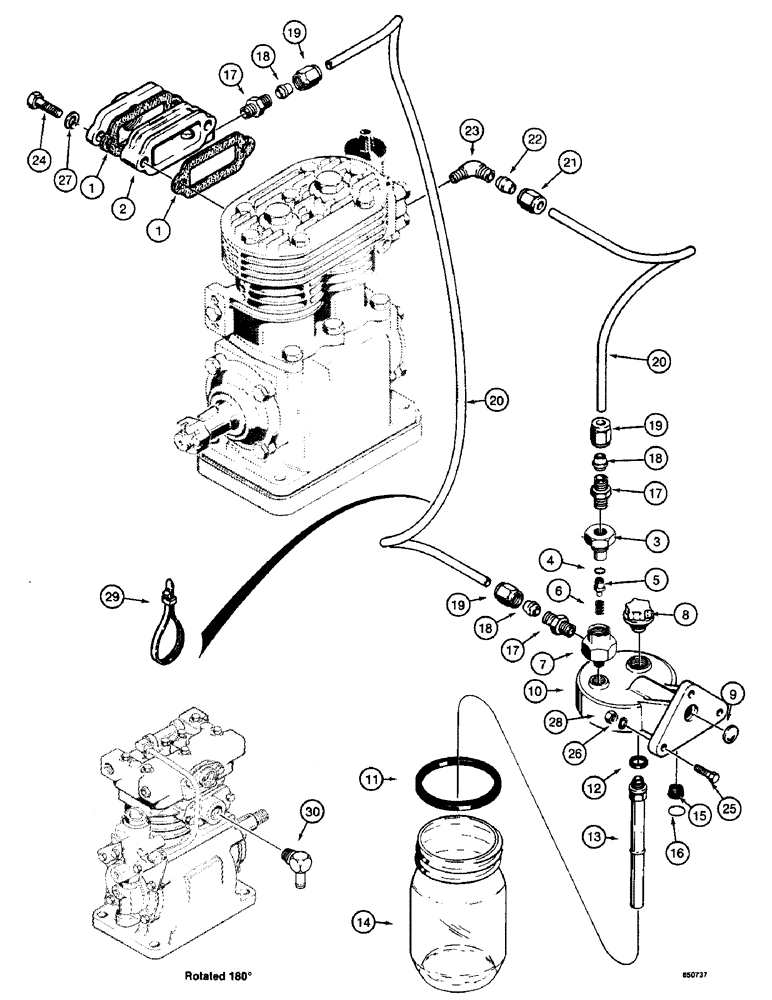

Схема запчастей Case W14 - (388) - ALCOHOL EVAPORATOR (07) - BRAKES

Артикул

Название

Примечание

Количество

L73282

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 1 - 30

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 16

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator, Includes: Ref. 3 - 7

1шт.

3

L33162

NUT

- cap

1шт.

4

L33616

SPARE PART

GROMMET - valve

1шт.

5

L33160

VALVE

- check

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 8 - 16

1шт.

8

L33151

PLUG

- filter

1шт.

9

41-102

PLUG,Exp, 1/2"

- expansion, steel, 1/2" diameter

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining, filter

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING - compression, straight, Includes: Ref. 17 - 19

3шт.

17

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

18

222-5047

SLEEVE,1/4" Tube

- compression fitting

1шт.

19

222-5060

NUT,1/2"-20

COMPRESSION NUT - fitting

1шт.

20

L54189

TUBE,0.25" OD x 108" L

- 1/4" OD (6 mm) cut to length

2шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING - compression, 90 degree, Includes: Ref. 21 - 23

1шт.

21

222-5060

NUT,1/2"-20

COMPRESSION NUT - fitting

1шт.

22

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - fitting assembly

1шт.

24

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

2шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

27

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

25-104

NUT,1/4"-20, G5

- hex, 1/4"-10 NC

3шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

30

L107160

FITTING

ELBOW - 90 degree, special, used with water cooled air compressor

1шт.

Выбрано товаров: 36
