Запчасти Case W14 (384) - AIR COOLED AIR COMPRESSOR GOVERNORS (07) - BRAKES

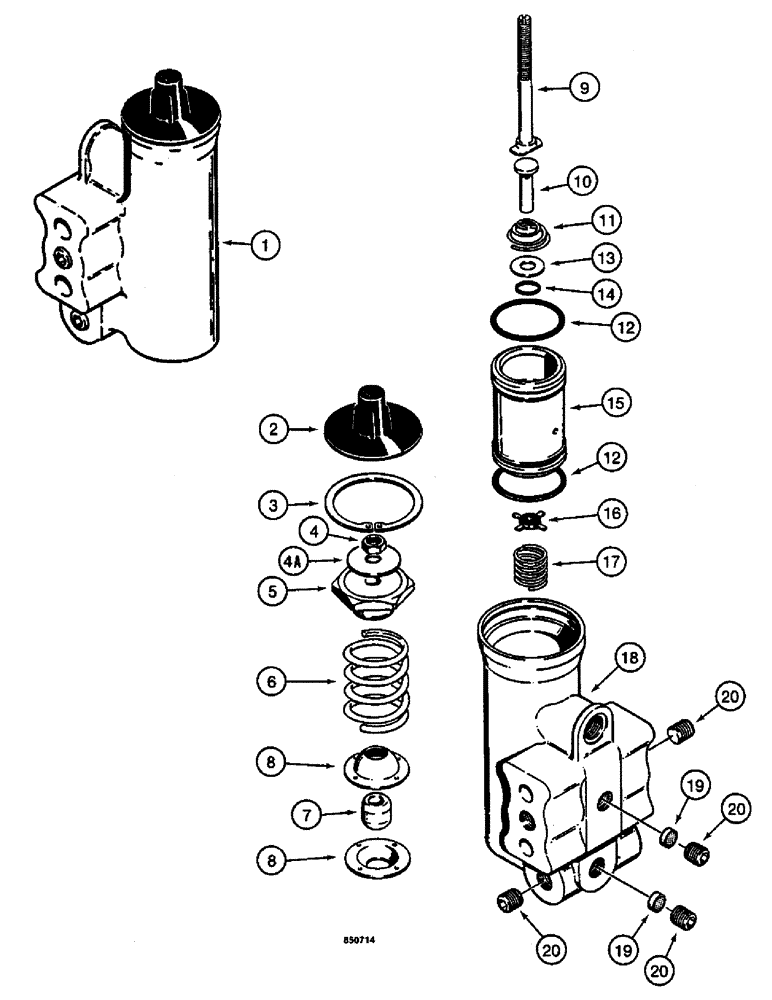

Схема запчастей Case W14 - (384) - AIR COOLED AIR COMPRESSOR GOVERNORS (07) - BRAKES

Артикул

Название

Примечание

Количество

1

D72831

GOVERNOR

ASSEMBLY - L17683 air compressor, Includes: Ref. 2 - 20

1шт.

1

D82776

GOVERNOR

ASSEMBLY - L79410 and L109544 air compressors, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

Part of governor repair kit, P/N L31808

1шт.

L32564

GOVERNOR

- air compressors, Includes: Ref. 3 - 19

1шт.

3

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , governor 1.50", Int, #150

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor, Includes: Ref. 4 - 9

1шт.

4

25-104

NUT,1/4"-20, G5

1шт.

4a

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

L31532

STEM

- exhaust

1шт.

11

L31531

VALVE SPRING

SPRING - stem, exhaust

1шт.

12

L31499

O-RING,1" ID x 40546" OD x 3"

- stem

2шт.

Part of governor repair kit, P/N L31808

1шт.

L31528

PLUNGER

PISTON ASSEMBLY - governor, Includes: Ref. 13 - 17

1шт.

13

L31541

WASHER

- special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- piston

1шт.

Part of governor repair kit, P/N L31808

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - governor

1шт.

16

L31529

LOCK VALVE

VALVE - inlet and exhaust

1шт.

Part of governor repair kit, P/N L31808

1шт.

17

L31530

SPRING

- valve, inlet and exhaust

1шт.

Part of governor repair kit, P/N L31808

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - governor

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - inlet and outlet ports

2шт.

Part of governor repair kit, P/N L31808

1шт.

20

221-1849

PLUG

- hex, socket head, 1/8" NPT

4шт.

L31808

KIT

- governor repair, Includes: Refs. 2, 12, 14, 16, 17 and 19

1шт.

Выбрано товаров: 32
