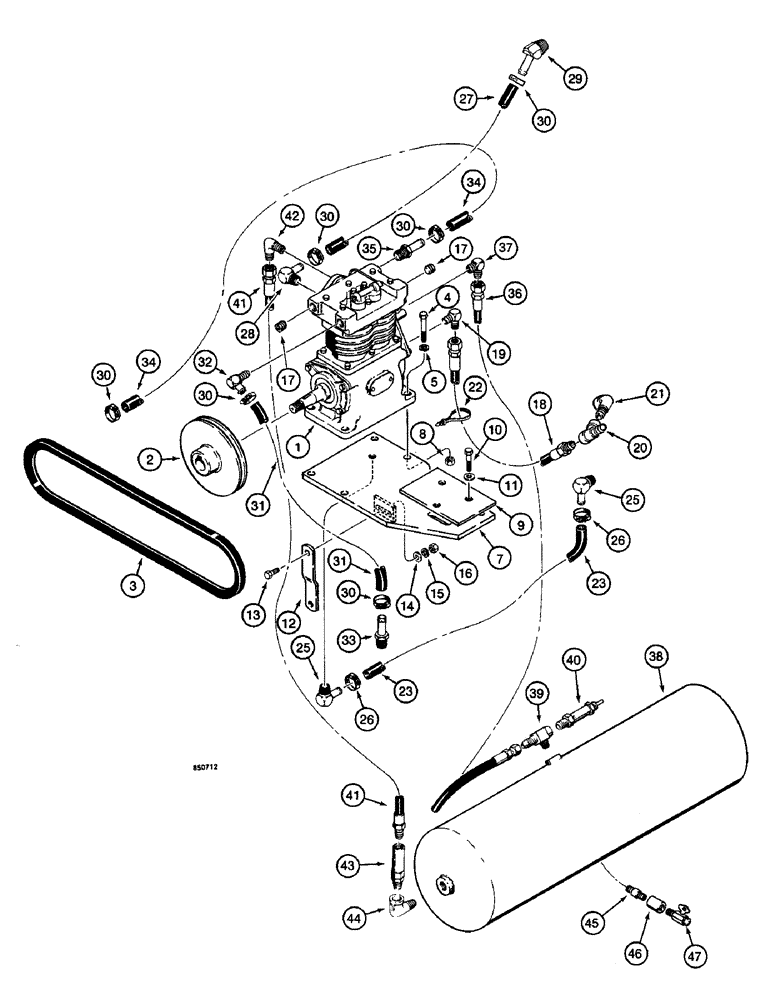

Запчасти Case W14 (360) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR, MODELS WITH MIDLAND ROSS WATER COOLED AIR COMPRESSOR (07) - BRAKES

1

REF

INSTRUCTION

COMPRESSOR - parts list figure 380

1шт.

2

L57805

PULLEY

- drive, compressor

1шт.

3

L108218

BELT,0.50" W x 46.40" L

Compressor 0.50" W x 46.40" L

1шт.

4

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

345-13

GASKET - form-in-place, 1 oz. (29.6 ml) tube, not shown

1шт.

7

L112386

PLATE

- compressor

1шт.

8

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC

4шт.

9

L74643

PLATE ASSY.

PLATE - compressor retaining

1шт.

10

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16"-14 NC x 1-1/2", grade 8

3шт.

11

R24323

WASHER

- flat, hardened, 1/2"

3шт.

12

L59871

STRAP

- compressor support

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

17

221-1843

PLUG

- hex socket head, 3/8" NPT

2шт.

18

L51638

HOSE ASSY.

HOSE - 25" (635 mm) long, oil supply

1шт.

19

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

20

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8" NPT

1шт.

21

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

L51648

HOSE,0.50" ID x 18.00", SAE 30R2 Type 1

0.50" ID x 18.00", SAE 30R2, Type 1, Oil Drain

1шт.

24

RESERVED

1шт.

25

A27489

ELBOW UNION

STEM FITTING - 90 degree

2шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

27

L74393

HOSE,0.75" ID x 15.00", SAE 20R1

Intake, Air Cleaner to Air Compressor, Turbocharged Models 0.75" ID x 15.00", SAE 20R1

1шт.

27

A18530

HOSE

- 3/4" (19 mm) ID x 44" (1117 mm) long, intake, air cleaner to air compressor, non-turbocharged models

1шт.

28

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 90 degree

1шт.

29

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree

1шт.

30

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

31

F30559

HOSE

- 5/8" (16 mm) ID x 23" (584 mm) long, air compressor water supply

1шт.

32

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - 90 degree

1шт.

33

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight

1шт.

34

L78848

HOSE

- 5/8" (16 mm) ID x 46" (1168 mm) long, water return

1шт.

35

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight

1шт.

36

L51322

HOSE ASSY.

HOSE - 33.75" (857 mm) long, air, Serial Range: compressor-governor

1шт.

37

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

38

L14823

TANK

RESERVOIR - air, brake system

1шт.

39

L48131

FITTING

TEE - special

1шт.

40

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

41

L112334

HOSE ASSY.

HOSE - 42" (1067 mm) long, reservoir supply

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

1шт.

43

G45437

LOCK VALVE

CHECK VALVE - air pressure, parts list figure 444

1шт.

44

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree, 1/2" NPT

1шт.

45

221-1134

PIPE

NIPPLE - 1/4" NPT x 1-1/2" long

1шт.

46

221-1327

X

COUPLING - 1/4" NPT

1шт.

47

L112624

LOCK VALVE

VALVE - air reservoir

1шт.
