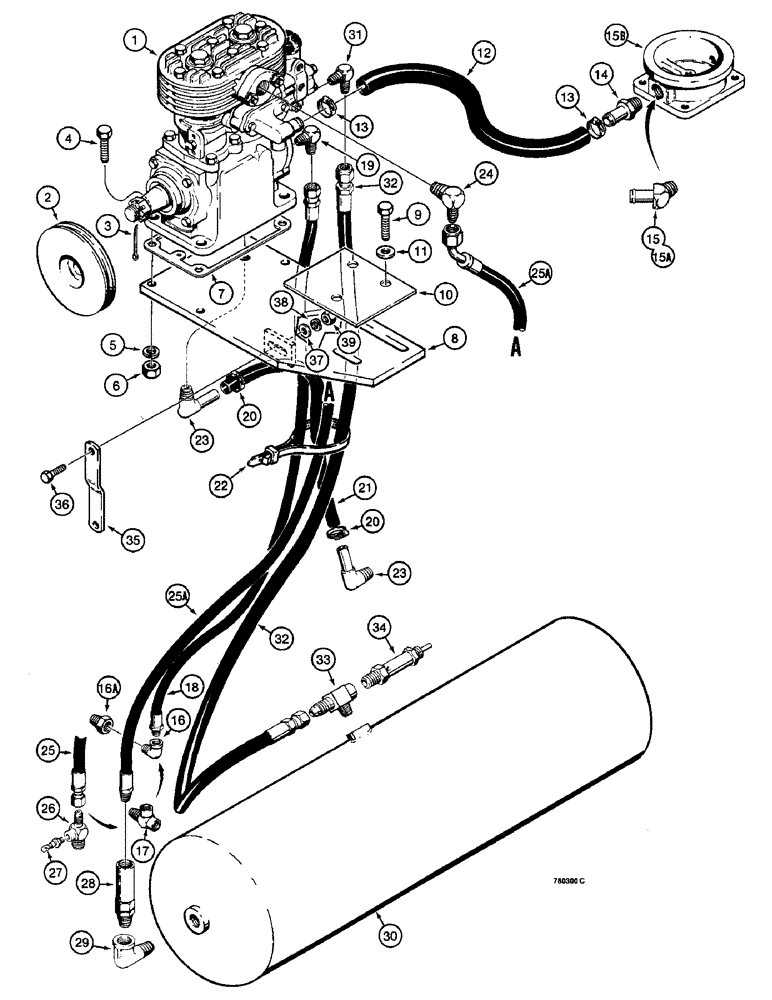

Запчасти Case W14 (356) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR, MODELS W/ BENDIX MANUFACTURED AIR COOLED AIR COMPRESSOR (07) - BRAKES

1

REF

INSTRUCTION

COMPRESSOR - see figures 368-380 for compressor

1шт.

2

L57805

PULLEY

- drive, compressor

1шт.

3

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , If used 1/8" x 1"

1шт.

4

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

25-107

NUT,7/16"-14, G5

- hex, 7/16"-14 NC

4шт.

7

D80610

GASKET

- compressor

1шт.

8

L74842

PLATE

- with 40 amp alternator

1шт.

9

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16"-14 NC x 1-1/2", grade 8

3шт.

10

L74643

PLATE ASSY.

PLATE - slot cover

1шт.

11

R24323

WASHER

- hardened

3шт.

12

A18530

HOSE

- 3/4" (19 mm) ID x 44" (1117 mm) long, turbocharged models, used with series 400 compressors

1шт.

12

L59994

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 12" (304 mm) long, non-turbocharged models

1шт.

12

L47888

HOSE

- 5/8" (16 mm) ID x 37" (939 mm) long, turbocharged models, used with series 300 compressors

1шт.

13

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - inlet hose, 5/16"

2шт.

14

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight, if used

1шт.

15

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree, used with series 400 compressor, if used

1шт.

15a

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - 45 degree, used with series 300 compressor, if used

1шт.

15b

REF

INSTRUCTION

ADAPTER - air cleaner, see figure 58

1шт.

16

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, if used 90º, 1/8"-27, NPT

1шт.

16a

221-1052

PLUG

FITTING - reducer, if used

1шт.

17

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- if used

1шт.

18

L51638

HOSE ASSY.

HOSE - 25" (635 mm) long

1шт.

19

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

21

L51648

HOSE,0.50" ID x 18.00", SAE 30R2 Type 1

0.50" ID x 18.00", SAE 30R2, Type 1

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

A27489

ELBOW UNION

STEM FITTING - 90 degree

2шт.

24

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 90 degree

1шт.

25

L70352

HOSE ASSY.

HOSE - 35" (889 mm) long, if used

1шт.

25a

L78568

HOSE ASSY.

HOSE - 38" (965 mm) long, if used

1шт.

26

L51313

FITTING

TEE - if used

1шт.

27

L51311

LOCK VALVE

VALVE - air, if used

1шт.

28

G45437

LOCK VALVE

VALVE - check, air pressure, parts list figure 444

1шт.

29

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree, 1/2" NPT

1шт.

30

L14823

TANK

RESERVOIR - air, brake system

1шт.

31

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, pipe

1шт.

32

L51322

HOSE ASSY.

HOSE - 33-1/4" (845 mm) long

1шт.

33

L48131

FITTING

TEE - special

1шт.

34

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

35

L59871

STRAP

- compressor support

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

37

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.
