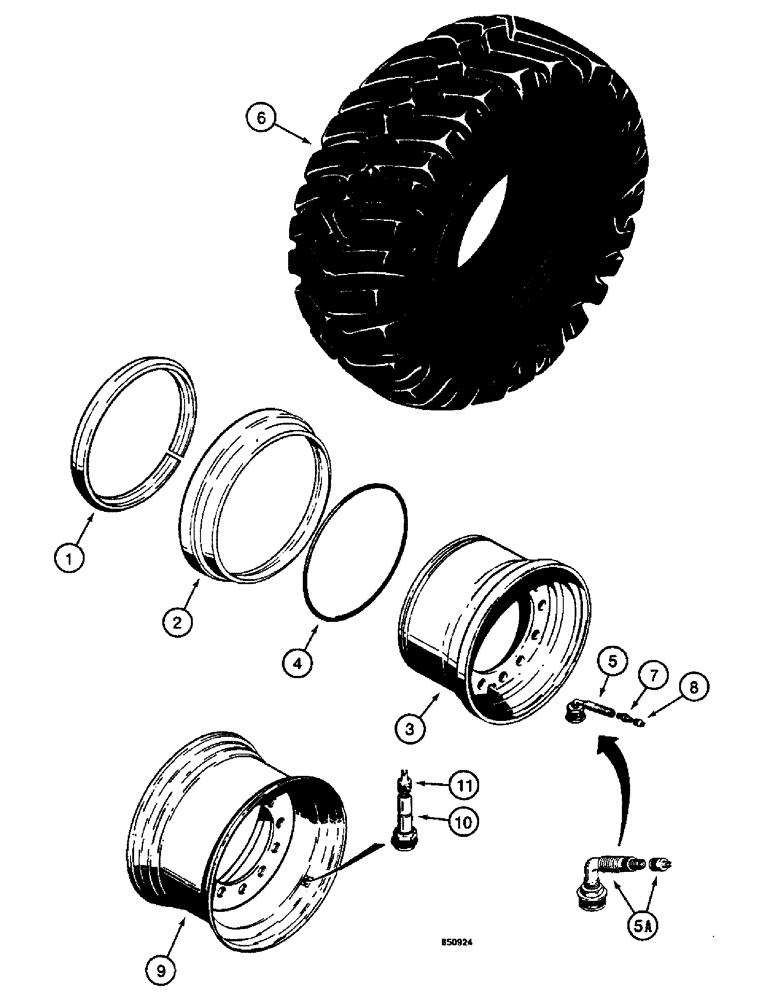

Запчасти Case W14 (354) - WHEELS AND TIRES, USED ON MODELS WITH 15.50 X 25 TIRES, ITEM (06) - POWER TRAIN

L111814

RIM

WHEEL ASSEMBLY - GKN or EWC, no longer available, order L116081 wheel and L48133 valve stem, Includes: Ref. 1 - 3

1шт.

L116081

WHEEL

ASSEMBLY - 12" x 25", GKN or EWC, Includes: Ref. 1 - 3

1шт.

1

N8338

RING

- locking, used with GKN wheels

1шт.

1

A19100

LOCKING RING

RING - locking, used with EWC wheels

1шт.

2

N8337

RING

- side, wheel, used with GKN wheels

1шт.

2

L12685

RING

- side, wheel, used with EWC wheels

1шт.

3

NSS

NOT SOLD SEPARAT

WHEEL - tire

1шт.

1

D87138

RING, LOCKING

RING - locking

4шт.

2

D87103

RIM

RING - side, wheel

4шт.

3

NSS

NOT SOLD SEPARAT

WHEEL - order A19123 locking ring, A19122 side ring, and L50656 wheel, see figure 352

4шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

4шт.

5

L11405

VALVE

- tubeless tire, 80 degree, if used

4шт.

5a

L48133

VALVE STEM

- Tubeless tire, 65 degree elbow, if used

4шт.

6

REF

INSTRUCTION

TIRE - 15.50 x 25 - 10, 12, and 16 ply tires

4шт.

7

L11406

ADAPTER

- valve, used with L11405 valve

4шт.

8

L19664

VALVE STEM

CAP - valve

4шт.

6

REF

INSTRUCTION

TIRE - 16.9 x 24 - 8 ply, tubeless, used on models with 16.9 x 24 - 8 ply tires Ref. 9 stamped EWC for identification

4шт.

7

RESERVED, used on models with 16.9 x 24 - 8 ply tires Ref. 9 stamped EWC for identification

1шт.

8

RESERVED, used on models with 16.9 x 24 - 8 ply tires Ref. 9 stamped EWC for identification

1шт.

9

L53435

WHEEL

- one piece, 15" x 24", used on models with 16.9 x 24 - 8 ply tires Ref. 9 stamped EWC for identification

4шт.

10

A20058

VALVE STEM

- Tire, tubeless, Used on models with 16.9 x 24 - 8 ply tires Ref. 9 stamped EWC for identification

4шт.

6

REF

INSTRUCTION

TIRE AND TUBE - 18.4 x 26 - 10 ply, used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification

4шт.

7

RESERVED, used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification

1шт.

8

RESERVED, used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification

1шт.

9

L59726

WHEEL

- one piece, 16" x 26", used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification

4шт.

10

RESERVED, used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification

1шт.

11

221-530

CAP,2" NPT

- , inner tube, used on models with 18.4 x 26 - 10 ply tires Ref. 9 stamped EWC for identification 2" NPT

4шт.
