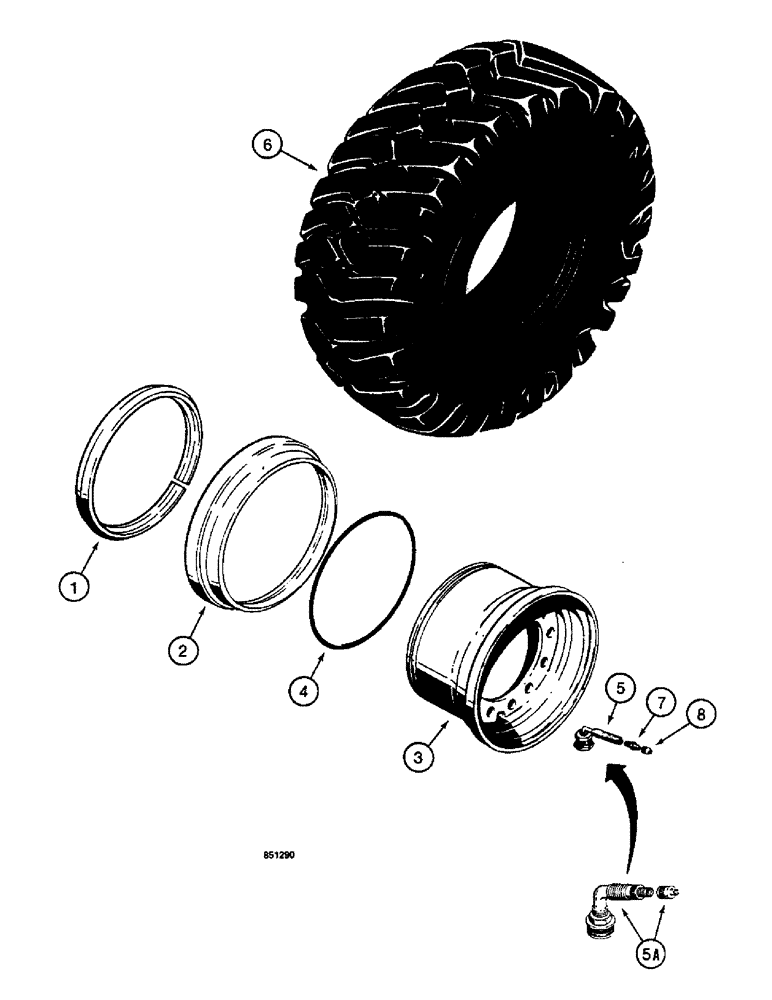

Запчасти Case W14 (352) - WHEELS AND TIRES, USED ON MODELS WITH 13.00 X 24 AND 14.00 X 24 TIRES (06) - POWER TRAIN

L111826

RIM

WHEEL ASSEMBLY - GKN or EWC, Includes: Ref. 1 - 3

4шт.

L116529

RIM

WHEEL ASSEMBLY - H and W or Peterson, Includes: Ref. 1 - 3

4шт.

1

D87102

RING, LOCKING

RING - locking, used with GKN wheels

1шт.

1

L101234

RING

- locking, used with EWC wheels

1шт.

1

N9902

RING, LOCKING

RING - locking, used with H and W wheels

1шт.

1

N9904

RING, LOCKING

RING - locking, used with Peterson wheels

1шт.

2

D87101

FLANGE

RING - side, wheel, used with GKN wheels

1шт.

2

L101233

RING

- side, wheel, used with EWC wheels

1шт.

2

N9903

RING

- side, wheel, used with H and W wheels

1шт.

2

N9905

RING

- side, wheel, used with Peterson wheels

1шт.

3

NSS

NOT SOLD SEPARAT

WHEEL - 8" x 24"

1шт.

4

A13099

O-RING,22 1" ID x 0.25"

- seal

4шт.

5

RESERVED

1шт.

5a

L48133

VALVE STEM

- Tubeless tire, 65 degree elbow

4шт.

6

REF

INSTRUCTION

TIRE - 13.0 x 24 - 12 ply

4шт.

6

REF

INSTRUCTION

TIRE - 14.0 x 24 - 10 ply

4шт.

1

A19123

RING

- locking

4шт.

2

A19122

RING

- side, wheel

4шт.

3

NLS

NO LONGER SERVICED

WHEEL - 12" x 25"

4шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

4шт.

5

L11405

VALVE

- tubeless tire, 80 degree elbow, if used

4шт.

5a

L48133

VALVE STEM

- Tubeless tire, 65 degree elbow, if used

4шт.

6

REF

INSTRUCTION

TIRE - 15.50 x 25 - 10, 12, and 16 ply tires

4шт.

7

L11406

ADAPTER

- valve

4шт.

8

L19664

VALVE STEM

CAP - valve

4шт.
