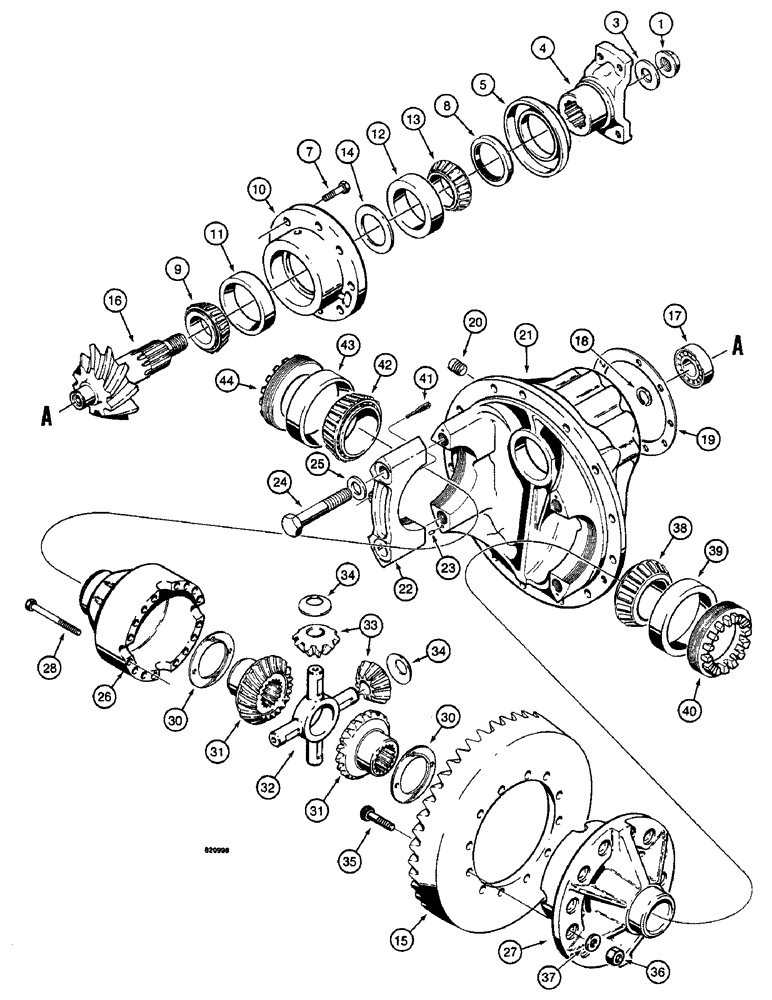

Запчасти Case W14 (348) - DIFFERENTIALS, L73964, L73965, L76803, L76804, L77964 (06) - POWER TRAIN

D73685

AXLE

DIFFERENTIAL ASSEMBLY - L73964 rear axle, Includes: Ref. 1 - 44

1шт.

D73686

DIFFERENTIAL

ASSEMBLY - L73965 front axle, Includes: Ref. 1 - 44

1шт.

N8233

CARRIER

DIFFERENTIAL ASSEMBLY - L76803, L77965, L103013, L79133, L60796, L60797, L61202, and L61203 rear axles, Includes: Ref. 1 - 44

1шт.

N8232

CARRIER

DIFFERENTIAL ASSEMBLY - L76804, L77964, L103012, L79132, L60795, L60798, L61201, L61204, L113301, and L113302 front axles, Includes: Ref. 1 - 44

1шт.

1

L35091

NUT

NUT - yoke to pinion shaft

1шт.

Part of sear and pinion kit, P/N A18200

1шт.

2

RESERVED

1шт.

3

A13124

WASHER

- special

1шт.

D73687

YOKE

ASSEMBLY - drive shaft, front axle, Includes: Ref. 4 and 5

1шт.

D73690

YOKE

ASSEMBLY - drive shaft, rear axle, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

D73691

COVER

SLINGER - oil, front and rear axle

1шт.

6

RESERVED

1шт.

7

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

8

D73689

OIL SEAL

- oil

1шт.

9

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, inner

1шт.

D73688

BEARING, ROLLER, CYL

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - bearing, inner

1шт.

12

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller

1шт.

13

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller

1шт.

14

D74357

SHIM,.153" Thk

- Spacer, bearing (3.886 mm) .153" Thk

1шт.

14

D74358

SHIM,.154" Thk

- bearing (3.912 mm) .154" Thk

1шт.

14

D74359

SHIM,.155" Thk

- bearing (3.937 mm) .155" Thk

1шт.

14

D74360

SHIM,.156" Thk

Spacer - bearing (3.962 mm) .156" Thk

1шт.

14

D74361

SHIM,.157" Thk

Spacer - bearing (3.988 mm) .157" Thk

1шт.

14

D74362

SHIM,.158" Thk

Spacer - bearing (4.013 mm) .158" Thk

1шт.

14

D74363

SHIM,.164" Thk

Spacer - bearing (4.166 mm) .164" Thk

1шт.

14

D74364

TUBE SPACER

SPACER - bearing, .170" (4.3180 mm) thick

1шт.

14

D74365

SPACER

- bearing, .176" (4.4704 mm) thick

1шт.

14

D74366

SPACER

- bearing, .182" (4.6228 mm) thick

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, matched, order A18200 kit, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

Part of sear and pinion kit, P/N A18200

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

Part of sear and pinion kit, P/N A18200

1шт.

17

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion, ball type

1шт.

18

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

19

L36104

SHIM

- .003" (0.0762 mm)

1шт.

19

L36105

SHIM

- .005" (0.1270 mm)

1шт.

19

L36106

DISC

SHIM - .010" (0.2540 mm)

1шт.

20

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

L35925

CARRIER

AND CAP - D73685 and D73686 differential, Includes: Ref. 21 - 25

1шт.

D73630

SUPPORT

CARRIER AND CAP - N8232 and N8233 differential, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

23

A15443

DOWEL

- cap, if used

4шт.

24

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8"-11 NC x 3-1/2", grade 8

4шт.

25

L30737

WASHER

- special

4шт.

L34022

TRANSMISSION

CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 26 - 35

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

28

L34063

BOLT

- special

8шт.

29

391-627

ELECTRICAL WIRE

WIRE - lock, No. 16 x 22", not shown, if used

1шт.

30

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

THRUST WASHER - side gear

2шт.

31

D66304

GEAR

- differential, side

2шт.

32

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

33

A18175

PINION

GEAR - differential, pinion

4шт.

34

A18176

DISC

THRUST WASHER - pinion gear

4шт.

35

A47251

DRIVE SCREW

- special, for service also order 131-1234 nut, Ref. 36

12шт.

Part of sear and pinion kit, P/N A18200

1шт.

35a

NSS

NOT SOLD SEPARAT

RIVET - not shown, use Refs. 35, 36, and 37

12шт.

36

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2"-20 NF

12шт.

Part of sear and pinion kit, P/N A18200

1шт.

37

D47366

WASHER

- special

12шт.

Part of sear and pinion kit, P/N A18200

1шт.

38

A18173

ROLLER BEARING

CONE - bearing, tapered roller

1шт.

39

L35931

BEARING CUP

CUP - bearing, differential

1шт.

40

A18194

RING

- bearing adjustment

1шт.

41

A18196

HARDWARE

PIN - special

2шт.

42

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, tapered roller

1шт.

43

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, differential

1шт.

44

A18194

RING

- bearing adjustment

1шт.

A18200

GEAR

KIT - gear and pinion, 5.83/1 ratio, Includes: Ref. 1, 15, 16, 35, 36, and 37

1шт.
