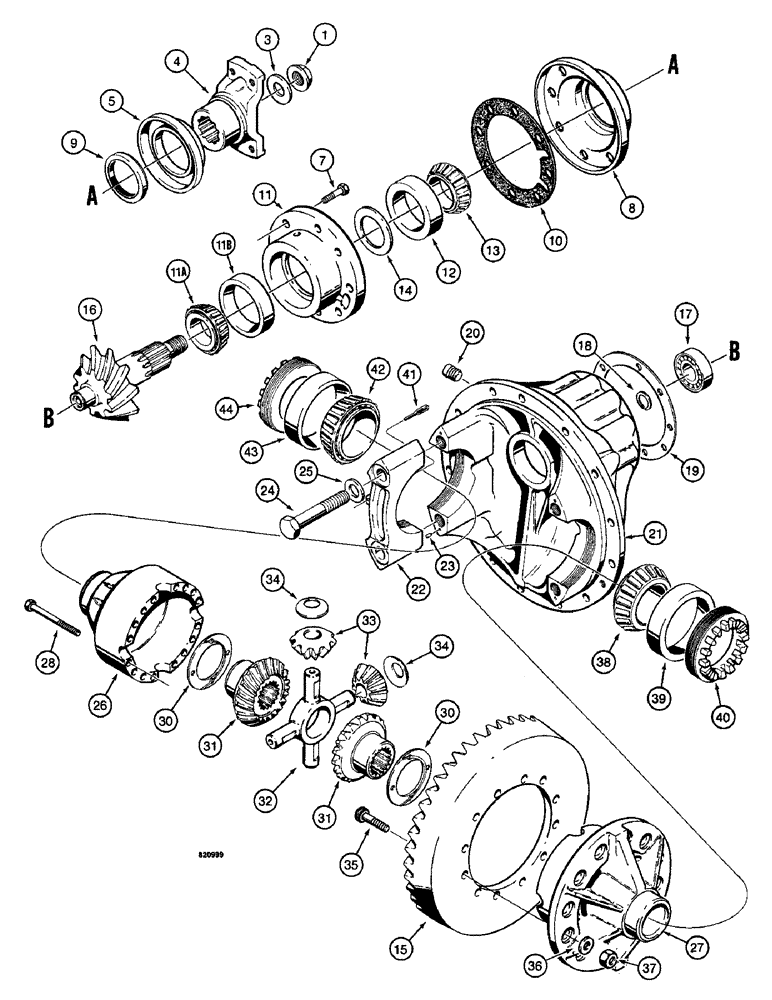

Запчасти Case W14 (342) - DIFFERENTIALS, L72033 AND L72034 AXLES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
D72768
CARRIER
DIFFERENTIAL ASSEMBLY - rear axle, no longer available, order D73685 differential, see figure 348, Includes: Ref. 1 - 44
1шт.
D72769
CARRIER
DIFFERENTIAL ASSEMBLY - front axle, no longer available, order D73686 differential, see figure 348, Includes: Ref. 1 - 44
1шт.
1
L35091
NUT
NUT - yoke to pinion shaft
1шт.
Part of sear and pinion kit, P/N A18200
1шт.
2
RESERVED
1шт.
3
A13124
WASHER
- special
1шт.
N9064
YOKE
ASSEMBLY - drive shaft, used in D72768 differential, Includes: Ref. 4 and 5
1шт.
L35013
YOKE
ASSEMBLY - drive shaft, used in D72769 differential, Includes: Ref. 4 and 5
1шт.
4
NSS
NOT SOLD SEPARAT
YOKE - drive shaft
1шт.
5
A18189
SLINGER
- oil
1шт.
6
RESERVED
1шт.
7
13-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd
8шт.
L35933
COVER ASSY
COVER ASSEMBLY - pinion shaft, Includes: Ref. 8 and 9
1шт.
8
NSS
NOT SOLD SEPARAT
COVER - pinion shaft
1шт.
9
A18185
OIL SEAL
- oil
1шт.
10
L33674
GASKET
-, Serial Range: cover-cage
1шт.
NSS
NOT SOLD SEPARAT
CAGE ASSEMBLY - item 11A OD is 3-11/16" (94 mm), Includes: Ref. 11 - 44
1шт.
D72826
CAGE ASSY.
BEARING ASSEMBLY - differential, production, order N6403 bearing assembly for service, figure 342, Includes: Ref. 11 - 11B
1шт.
11
NSS
NOT SOLD SEPARAT
CAGE - bearing
1шт.
11a
L30397
CONE
- bearing, inner
1шт.
11b
L33668
BEARING CUP
CUP - bearing, inner
1шт.
12
A13161
BEARING CUP,88.5mm OD x 17.46mm W
CUP - bearing, tapered roller
1шт.
13
A13160
ROLLER BEARING,1.4375" ID x 0.933"
CONE - bearing, tapered roller
1шт.
14
A18358
SPACER
- bearing, .172" (4.3688 mm) thick
1шт.
14
A18359
SPACER
- bearing, .173" (4.3942 mm) thick
1шт.
14
A18360
SPACER
- bearing, .174" (4.4196 mm) thick
1шт.
14
A18361
SPACER
- bearing, .175" (4.4450 mm) thick
1шт.
14
A18362
RING
SPACER - bearing, .176" (4.4704 mm) thick
1шт.
14
A18363
SPACER
- bearing, .177" (4.4958 mm) thick
1шт.
14
A18364
SPACER
- bearing, .183" (4.6482 mm) thick
1шт.
14
A18365
SPACER
- bearing, .189" (4.8006 mm) thick
1шт.
14
A18366
SPACER
- bearing, .195" (4.9530 mm) thick
1шт.
14
A18367
SPACER
- bearing, .201" (5.1054 mm) thick
1шт.
N6403
CAGE
BEARING ASSEMBLY - Ref. 11A OD is 3-1/2" (89 mm), if Ref. 11A OD is 3-11/16" (94 mm), see figure 342 for bearing assembly components, Includes: Ref. 11 - 14
1шт.
11
NSS
NOT SOLD SEPARAT
CAGE - bearing
1шт.
11a
R10276
ROLLER BEARING,1.686" ID x 1.1669"
CONE - bearing, inner
1шт.
11b
R10277
BEARING CUP,3.5" OD x 0.9063"
CUP - bearing, inner
1шт.
12
A13161
BEARING CUP,88.5mm OD x 17.46mm W
CUP - bearing, tapered roller
1шт.
13
A13160
ROLLER BEARING,1.4375" ID x 0.933"
CONE - bearing, tapered roller
1шт.
14
D74357
SHIM,.153" Thk
- Spacer, bearing (3.886 mm) .153" Thk
1шт.
14
D74358
SHIM,.154" Thk
- bearing (3.912 mm) .154" Thk
1шт.
14
D74359
SHIM,.155" Thk
- bearing (3.937 mm) .155" Thk
1шт.
14
D74360
SHIM,.156" Thk
Spacer - bearing (3.962 mm) .156" Thk
1шт.
14
D74361
SHIM,.157" Thk
Spacer - bearing (3.988 mm) .157" Thk
1шт.
14
D74362
SHIM,.158" Thk
Spacer - bearing (4.013 mm) .158" Thk
1шт.
14
D74363
SHIM,.164" Thk
Spacer - bearing (4.166 mm) .164" Thk
1шт.
14
D74364
TUBE SPACER
SPACER - bearing, .170" (4.318 mm) thick
1шт.
14
D74365
SPACER
- bearing, .176" (4.470 mm) thick
1шт.
14
D74366
SPACER
- bearing, .182" (4.623 mm) thick
1шт.
REF
INSTRUCTION
GEAR SET - ring and pinion, matched, order A18200 kit, see below, Includes: Ref. 15 and 16
1шт.
15
NSS
NOT SOLD SEPARAT
RING GEAR - differential
1шт.
Part of sear and pinion kit, P/N A18200
1шт.
16
NSS
NOT SOLD SEPARAT
PINION GEAR - differential
1шт.
Part of sear and pinion kit, P/N A18200
1шт.
17
A18182
BALL BEARING,27.75mm ID x 62mm OD x 18mm W
BEARING - inner, drive pinion
1шт.
18
A18199
SNAP RING,#106, Ext
Ring, Snap, , bearing #106, Ext
1шт.
19
L36104
SHIM
- .003" (0.0762 mm)
1шт.
19
L36105
SHIM
- .005" (0.1270 mm)
1шт.
19
L36106
DISC
SHIM - .010" (0.2540 mm)
1шт.
20
221-835
PLUG
- pipe, square head, 3/4" NPT
1шт.
REF
INSTRUCTION
GEAR SET - ring and pinion, matched, order A18200 kit, see below
1шт.
L35925
CARRIER
AND CAP ASSEMBLY - differential, Includes: Ref. 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
CARRIER - differential, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
CAP - differential bearing
2шт.
23
A15443
DOWEL
- cap, if used
4шт.
24
26-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8
- hex head, 5/8"-11 NC x 3-1/2", grade 8
4шт.
25
L30737
WASHER
- special
4шт.
L34022
TRANSMISSION
CASE AND GEAR ASSEMBLY - differential, Includes: Ref. 26 - 34
1шт.
D47347
CASE ASSY.
CASE ASSEMBLY - differential, Includes: Ref. 26 and 27
1шт.
26
NSS
NOT SOLD SEPARAT
CASE - plain half
1шт.
27
NSS
NOT SOLD SEPARAT
CASE - flange half
1шт.
28
L34063
BOLT
- special
8шт.
29
RESERVED
1шт.
30
F9740
WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk
- thrust, side gear
2шт.
31
D66304
GEAR
- differential, side
2шт.
32
A18181
U-JOINT SPIDER
SPIDER - differential
1шт.
33
A18175
PINION
GEAR - differential, pinion
4шт.
34
A18176
DISC
WASHER - thrust
4шт.
34a
NSS
NOT SOLD SEPARAT
RIVET - not shown, use Refs. 35, 36 and 37
12шт.
35
A47251
DRIVE SCREW
- special, ring gear to differential, for service also order 131-1234 nut, Ref. 37
12шт.
Part of sear and pinion kit, P/N A18200
1шт.
36
D47366
WASHER
- special
12шт.
Part of sear and pinion kit, P/N A18200
1шт.
37
232-4618
LOCK NUT,1/2"-20, GC
NUT - hex, self-locking, 1/2"-20 NF
12шт.
Part of sear and pinion kit, P/N A18200
1шт.
38
A18173
ROLLER BEARING
CONE - bearing, tapered roller
1шт.
39
L35931
BEARING CUP
CUP - bearing, differential
1шт.
40
A18194
RING
- bearing adjustment
1шт.
41
A18196
HARDWARE
PIN - special
2шт.
42
A26847
ROLLER BEARING,2.5" ID x 0.866"
CONE - bearing, tapered roller
1шт.
43
A26744
BEARING CUP,110.025 mm OD x 18.875 mm
CUP - bearing, differential
1шт.
44
A18194
RING
- bearing adjustment
1шт.
A18200
GEAR
KIT - gear and pinion, 5.83/1 ratio, Includes: Ref. 1, 15, 16, 35, 36, and 37
1шт.
