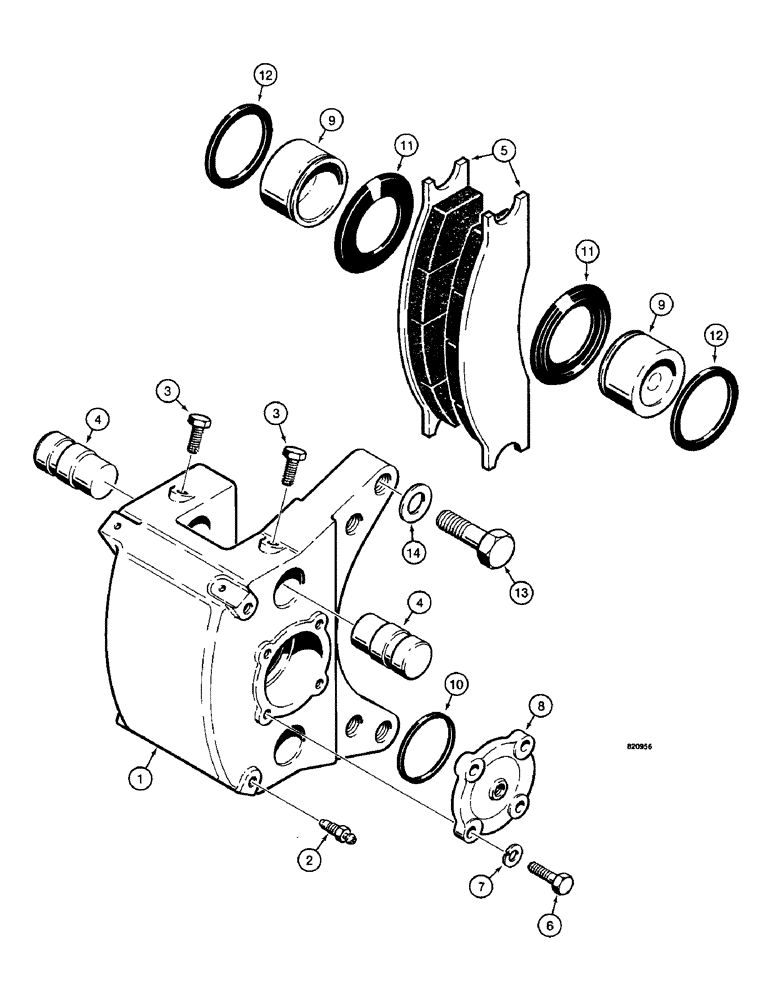

Запчасти Case W14 (340) - FRONT DISC BRAKE CALIPERS, WITH TWO PISTONS, AXLES WITH DISC BRAKES (06) - POWER TRAIN

L105825

BRAKE SHOE

CALIPER - brake, Includes: Ref. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

D77517

VALVE

- bleeder

2шт.

3

N6171

LOCK BOLT,Hex, 3/8" - 16 x 1", Cup Pt

BOLT - special

4шт.

4

D77524

PIN

- brake shoe

4шт.

5

N7356

SHOE

AND LINING - brake

2шт.

Ref. 5 - Consists of one shoe and one lining

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

D77520

COVER

CAP - piston, inlet

1шт.

9

D77523

PISTON

- brake

2шт.

N7357

SEAL

KIT - seal, Includes: Ref. 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

PACKING - cap

1шт.

11

NSS

NOT SOLD SEPARAT

BOOT - piston

2шт.

12

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

13

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4"-10 NC x 2-1/2"

8шт.

14

L79179

WASHER

- hardened

8шт.
