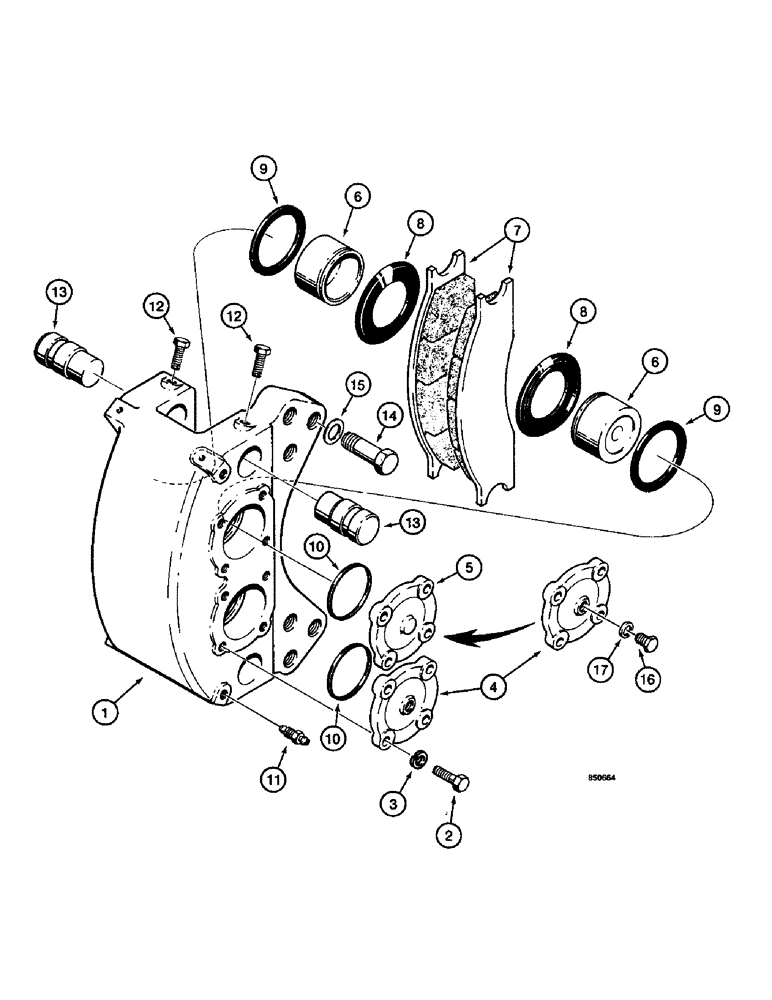

Запчасти Case W14 (338) - REAR DISC BRAKE CALIPERS, AXLES WITH DISC BRAKES, CALIPERS WITH 2 PIECE COVERS- ITEM 4 & 5 (06) - POWER TRAIN

L73912

BRAKE CALIPER

CALIPER - right-hand, no longer available, order (1) L114099 gasket, (1) L114544 caliper, and (1) S12090 plug

1шт.

L73913

BRAKE CALIPER

CALIPER - left-hand, no longer available, order (1) L114099 gasket, (1) L114544 caliper, and (1) S12090 plug

1шт.

L114544

HEAD

CALIPER - left-hand or right-hand, Includes: Ref. 1 - 13

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

D77520

COVER

- piston, inlet

1-2шт.

5

D77521

CAP

COVER - piston, used with L73912 and L73913 calipers, L114544 caliper uses (2) D77520 covers, item 4, (1) L114099 gasket, item 17, and (1) S12090 plug, item 16

1шт.

6

D77523

PISTON

- brake

4шт.

7

D77519

BRAKE PAD

SHOE AND LINING - brake

2шт.

N7357

SEAL

KIT - seal, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston

2шт.

9

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

10

NSS

NOT SOLD SEPARAT

PACKING - cover

1шт.

11

D77517

VALVE

- bleeder

2шт.

12

113-220

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex head, 3/8"-16 NC x 1-1/4"

4шт.

13

D77524

PIN

- brake shoe

4шт.

14

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4"-10 NC x 2-1/2", grade 8

12шт.

15

L79179

WASHER

- hardened

12шт.

16

S12090

PLUG

- cover, if used

2шт.

17

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- sealing, plug, if used

2шт.
