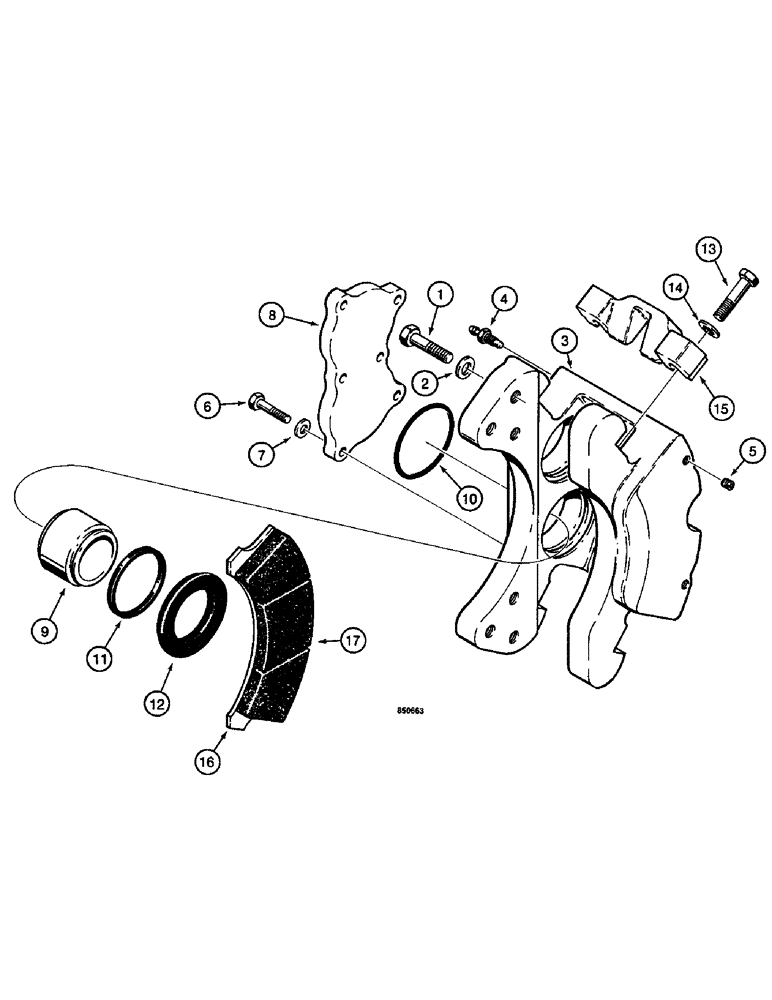

Запчасти Case W14 (336) - DISC BRAKE CALIPERS, AXLES WITH DISC BRAKES, WITH 1 PIECE COVER- ITEM 8 (06) - POWER TRAIN

1

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4"-10 NC x 2-1/4", G8

24шт.

2

L36067

WASHER

- hardened

24шт.

D77374

CALIPER

S - four piston, used with L76803 and L76804 axle assemblies, Includes: Ref. 3 - 17

4шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - caliper

1шт.

4

L31647

BLEED SCREW

VALVE - bleeder

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8" NPT

6шт.

6

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2"-13 NC x 1-3/4", grade 8

6шт.

7

D47366

WASHER

- hardened

6шт.

8

D77484

COVER ASSY

COVER - piston

1шт.

9

D77479

PISTON ASSY.

PISTON - brake

4шт.

D77478

KIT

- seal, Includes: Ref. 10 - 12

2шт.

D77478 (2 Kits required per caliper)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

2шт.

12

NSS

NOT SOLD SEPARAT

COVER - rubber

2шт.

13

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8"-11 NC x 2-1/4", grade 8

4шт.

14

L30737

WASHER

- hardened

4шт.

15

D77482

RETAINER

- shoe

2шт.

D77483

KIT

- shoe and lining, Includes: Ref. 16 and 17

2шт.

D77483 (1 Kit required per caliper)

1шт.

16

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

17

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.
