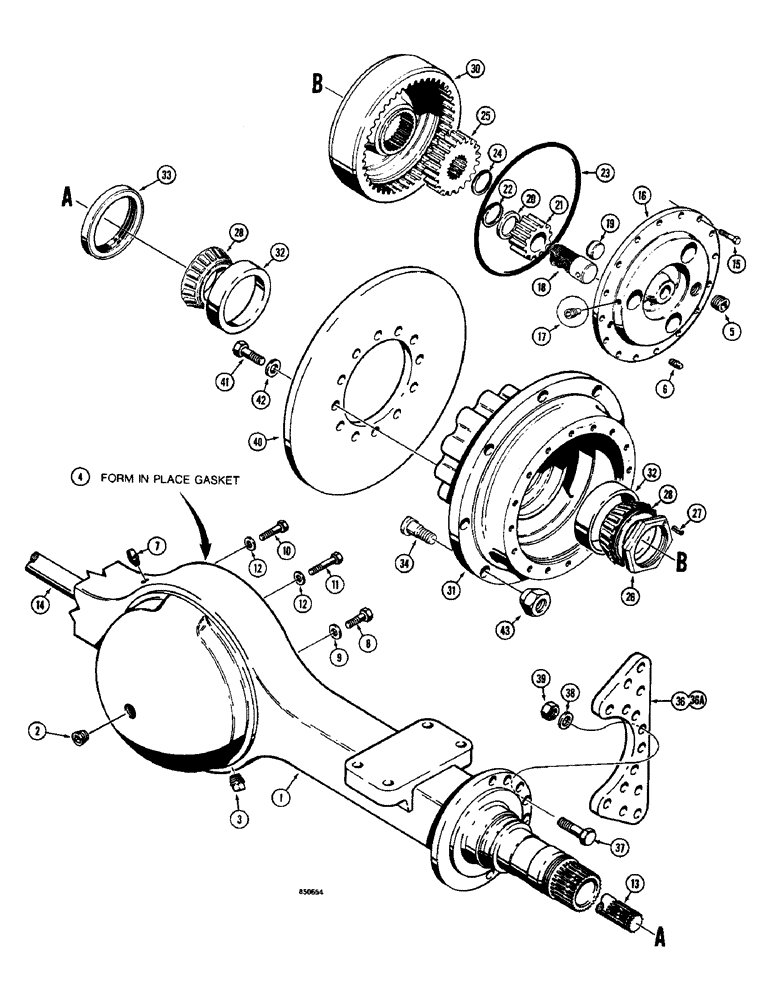

Запчасти Case W14 (332) - AXLE HOUSING AND PLANETARY, AXLES WITH DISC BRAKES (06) - POWER TRAIN

L76803

AXLE

ASSEMBLY - rear, PRS-204RHD-2, if used, Includes: Ref. 1 - 42

1шт.

L76804

AXLE

ASSEMBLY - front, PRS-204RHD-3, if used, Includes: Ref. 1 - 42

1шт.

L79132

AXLE, FRONT

AXLE ASSEMBLY - front, PRS-204N-9, if used, Includes: Ref. 1 - 42

1шт.

L79133

AXLE, REAR

AXLE ASSEMBLY - rear, PRS-204N-8, if used, Includes: Ref. 1 - 42

1шт.

L60795

CENTER AXLE

AXLE ASSEMBLY - front, PRS-204N-26, if used, Includes: Ref. 1 - 42

1шт.

L60796

CENTER AXLE

AXLE ASSEMBLY - rear, PRS-204N-27, if used, Includes: Ref. 1 - 42

1шт.

L61201

CENTER AXLE

AXLE ASSEMBLY - front, PRS-204N-31, if used, Includes: Ref. 1 - 42

1шт.

L61202

CENTER AXLE

AXLE ASSEMBLY - rear, PRS-204N-30, if used, Includes: Ref. 1 - 42

1шт.

L113302

AXLE, FRONT

AXLE ASSEMBLY - front, PRS-204N-39, if used, Includes: Ref. 1 - 42

1шт.

1

D80345

AXLE HOUSING

HOUSING - axle, Includes: Ref. 2 and 3

1шт.

2

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket, 3/4" NPT

1шт.

3

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square head, magnetic, 3/4" NPT

1шт.

4

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (3206 ml)

1шт.

5

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - 3/4" NPT, magnetic

2шт.

6

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - square head, 3/8" NPT, if used

2шт.

7

A12928

BREATHER

- oil

1шт.

8

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

9

D47366

WASHER

- hardened

12шт.

10

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16"-14 NC x 1-3/4"

2шт.

11

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

- hex head, 7/16"-14 NC x 2-1/4"

2шт.

12

D47367

WASHER

- hardened

4шт.

13

L35231

SHAFT

- axle, 37-3/16" (945 mm) long

1шт.

14

L35234

SHAFT

- axle, 39-9/16" (1005 mm) long

1шт.

15

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

- special

32шт.

N8157

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Includes: Ref. 16 - 20

2шт.

16

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

17

N7103

STUD

SET SCREW - special

3шт.

18

N8158

SHAFT

- pinion

3шт.

19

A18247

PIN

BUTTON - thrust

1шт.

20

N7104

WASHER, THRUST

THRUST WASHER - pinion

3шт.

21

L35237

GEAR

PINION - planetary

6шт.

22

A18242

RING

SNAP RING - pinion gear

6шт.

23

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- if used, order M20704 form in place gasket, Ref. 4

2шт.

24

A18241

RING

SNAP RING - sun gear

2шт.

25

L35232

GEAR

SUN GEAR - planetary

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 26 and 27

2шт.

26

NSS

NOT SOLD SEPARAT

NUT - lock, bearing

1шт.

27

138-2018

PIN,1/4" x 7/8", Coiled

Nut 1/4" x 7/8", Coiled

2шт.

28

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing

4шт.

29

RESERVED

1шт.

30

L35230

GEAR

RING GEAR - hub

2шт.

D77576

HUB CAP

HUB ASSEMBLY - used with L76804 and L76803 axles, Includes: Ref. 31 and 32

2шт.

D80624

HUB

ASSEMBLY - used with L79132, L79133, L60795, L60796, L61201, L61202, and L113302 axles, Includes: Ref. 31 and 32

2шт.

31

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

32

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, both hubs

2шт.

33

N7841

SEAL

OIL SEAL - hub

2шт.

34

A13112

STUD

- special

16шт.

35

RESERVED

1шт.

36

D77575

PLATE ASSY.

PLATE - mount, used with D77576 hub

2шт.

36a

D80627

SUPPORT

PLATE - mount, used with D80624 hub

2шт.

37

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4"-10 NC x 2-1/4", G8

16шт.

38

L36067

WASHER

- hardened

16шт.

39

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

16шт.

40

D77577

DISC

- used with D77576 hub

2шт.

40

D80626

BRAKE DISC

DISC - used with D80624 hub

2шт.

41

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 3/8"-11 NC x 1-3/4", used with D77576 hub

24шт.

41

D80623

BOLT

- hex head, 3/4"-16 NF x 2", used with D80624 hub

24шт.

42

L30737

WASHER

- hardened, 3/8", used with D77576 hub

24шт.

42

D80625

WASHER

- hardened, 3/4", used with D80624 hub

24шт.

43

A12522

WHEEL NUT

- special, not included in axle assemblies

16шт.
