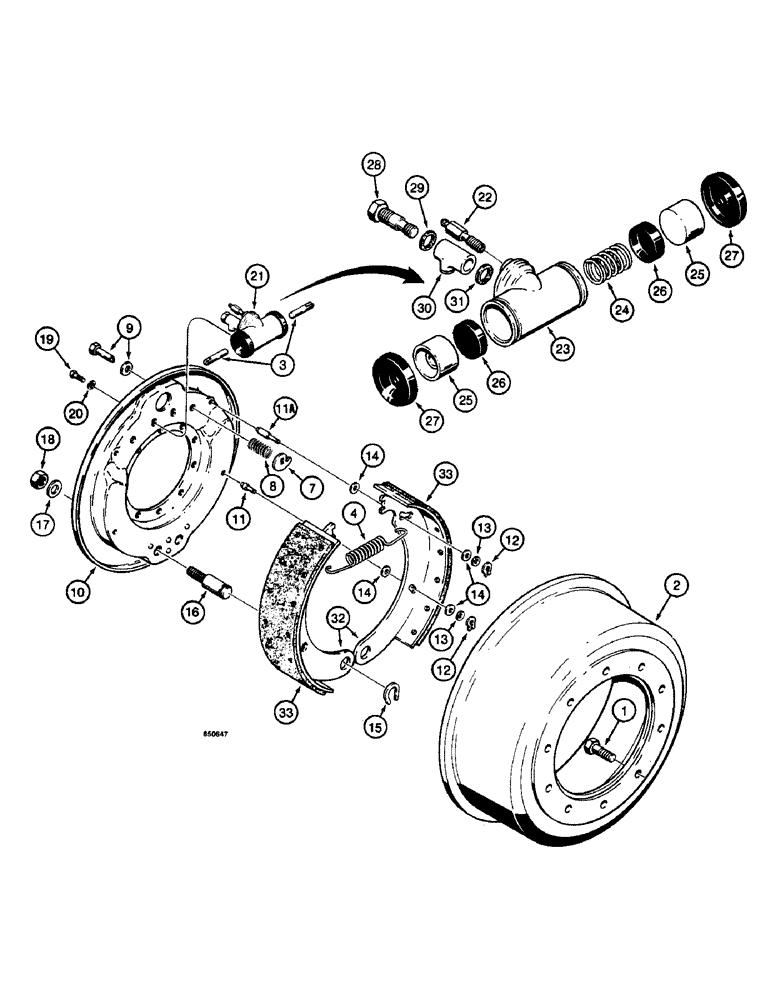

Запчасти Case W14 (328) - FRONT AND REAR AXLE BRAKES, AXLES WITH DRUM BRAKES (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSEMBLY - complete, see figure 318, Includes: Ref. 1 - 33

2шт.

1

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8"-11 NC x 1-1/2", grade 8

20шт.

2

L35225

DRUM

- brake

2шт.

N6051

BRAKE

ASSEMBLY - axle, Includes: Ref. 3 - 33

2шт.

3

D87200

ROD

- push, brake cylinder

2шт.

4

L35486

SPRING

- shoe return

1шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

L35952

PLATE ASSY.

PLATE ASSEMBLY - backing, brake, Includes: Ref. 7 - 12

1шт.

7

A13201

SHOE

CAM - brake adjusting

2шт.

8

A13023

SPRING

- adjusting cam

2шт.

9

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - adjusting cam

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

11

A18271

PIN,11.11mm OD x 33.34mm L

- shoe guide, short

2шт.

11a

A18272

GUIDE PIN

PIN - shoe guide, long

2шт.

12

A13127

WASHER

RETAINER - guide pin

4шт.

13

A13128

WASHER

- spring, guide pin

1шт.

14

A13129

WASHER

- plain, guide pin

1шт.

15

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RETAINING RING - anchor pin

2шт.

16

A13024

PIN,29.39mm OD x 68.25mm L

- anchor, brake

2шт.

17

L36067

WASHER

- 3/4", special

2шт.

18

129-179

NUT,Hex, 3/4" - 16, Gr 5

stainless steel 3/4"-16, G5

2шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

L33875

CYLINDER

ASSEMBLY - brake, Includes: Ref. 22 - 33

1шт.

22

A12924

SCREW,7/16" - 20

- bleeder, brake

1шт.

A12985

CYLINDER

ASSEMBLY - brake, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

24

A13043

SPRING

- piston return

1шт.

25

A13044

PISTON ASSY.

PISTON - cylinder

2шт.

A12865

KIT

- cylinder repair

1шт.

28

A12926

BOLT

- fitting to cylinder, special

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: bolt-fitting

1шт.

30

A12925

FITTING

- swivel, inlet

1шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - swivel, Serial Range: fitting-cylinder

1шт.

D72855

SHOE

AND LINING - brake, upper and lower

2шт.

32

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

33

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

Find the Rockwell number on the axle. Then use the correct parts list. Axle components and related parts are shown on figures 318-348.

1шт.

N7072

LINING

Kit, This Kit Porvides Parts For 2 Wheels. Incl Lining and Rivets

1шт.
