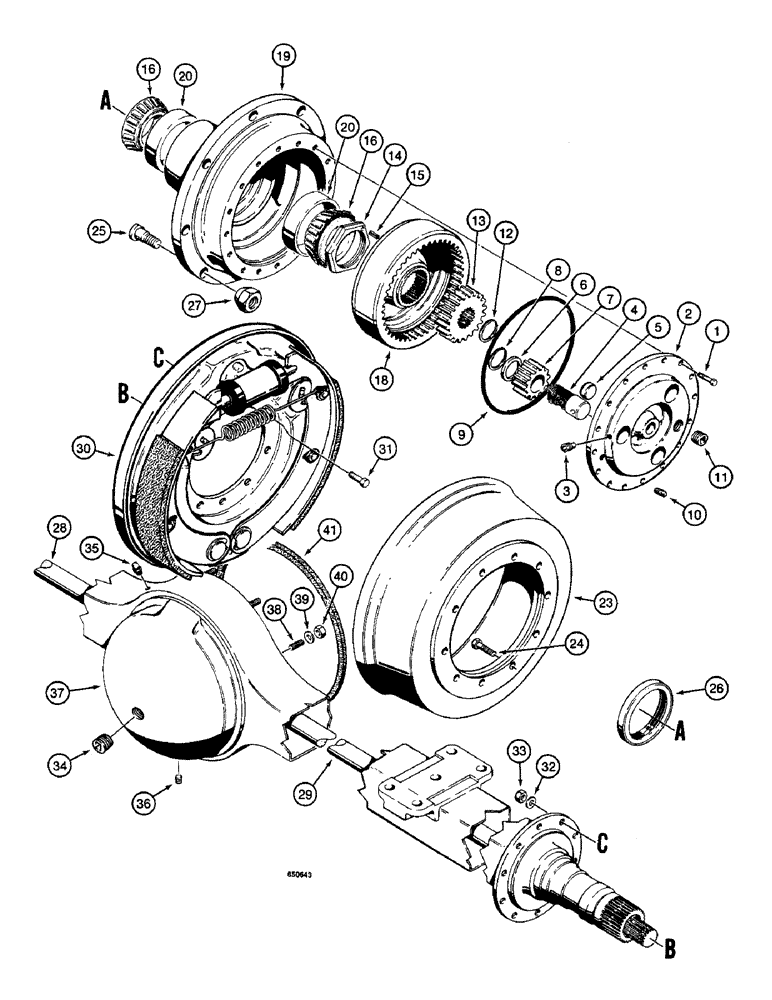

Запчасти Case W14 (320) - AXLE HOUSING AND PLANETARY, AXLES WITH DRUM BRAKES (06) - POWER TRAIN

L72033

AXLE ASSEMBLY - rear, PR66-HX 12, if used, Includes: Ref. 1 - 26

1шт.

L72034

AXLE ASSEMBLY - front, PR66-HX 13, if used, Includes: Ref. 1 - 26

1шт.

L73964

AXLE ASSEMBLY - rear, PR66-HX 16, if used, Includes: Ref. 1 - 26

1шт.

L73965

AXLE ASSEMBLY - front, PR66-HX 17, if used, Includes: Ref. 1 - 26

1шт.

1

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

- hex head, 1/2"-13 NC x 1-3/8", grade 8

32шт.

N8157

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Includes: Ref. 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

N7103

STUD

SET SCREW - special

3шт.

4

N8158

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

N7104

WASHER, THRUST

THRUST WASHER - pinion

3шт.

7

L35237

GEAR

PINION - planetary

6шт.

8

A18242

RING

RETAINING RING - pinion gear

6шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- if used, order M20704 form in place gasket

2шт.

9

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (3206 ml)

1шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - square head, 3/8" NPT

2шт.

11

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

2шт.

12

A18241

RING

RETAINING RING - sun gear

2шт.

13

L35232

GEAR

SUN GEAR - planetary

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock, bearing

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

Nut 1/4" x 7/8", Coiled

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - roller bearing

4шт.

17

RESERVED

1шт.

18

L35230

GEAR

RING GEAR - hub

2шт.

L35223

HUB CAP

HUB AND CUP ASSEMBLY - axle, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - roller bearing

2шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

L35225

DRUM

- brake

1шт.

24

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8"-11 NC x 1-1/2", grade 8

10шт.

25

A13112

STUD

STUD - wheel

8шт.

26

N7841

SEAL

OIL SEAL - hub

2шт.

27

A12522

WHEEL NUT

- hex special, not included in axle assembly, Includes: Ref. 28 - 41

32шт.

28

L35231

SHAFT

- axle, left-hand, 37.19" (945 mm) long

1шт.

29

L35234

SHAFT

- axle, right-hand, 39.56" (1005 mm) long

1шт.

30

REF

INSTRUCTION

BRAKE ASSEMBLY - parts list figure 324

2шт.

31

26-926

BOLT,Hex, 9/16" - 12 x 1-5/8", Gr 8

- hex head, 9/16"-12 NC x 1-5/8"

20шт.

32

L35233

WASHER

- special

20шт.

33

131-1235

NUT,9/16"-18, GC

NUT - hex, self-locking, 9/16"-18 NF

20шт.

34

221-1035

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

35

A12928

BREATHER

- oil

1шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - 3/4" NPT, magnetic

1шт.

L35219

HOUSING ASSEMBLY - axle, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

38

A18207

STUD

- 7/16"-14 NC - 20 NF x 2-3/16"

2шт.

38

L33693

STUD

- 7/16"-14 NC x 1-7/8"

6шт.

38

L33692

STUD

- 7/16"-14 NC - 20 NF x 2-1/2"

2шт.

39

D47367

WASHER

- special

10шт.

40

129-530

NUT,7/16"-20, G8

- hex, 7/16"-14 NC

10шт.

41

L35977

GASKET

- axle housing, use M20704 form in place gasket

1шт.

41

M20704

ADHESIVE

FORM IN PLACE GASKET - tube, 3 oz. (3206 ml)

1шт.
