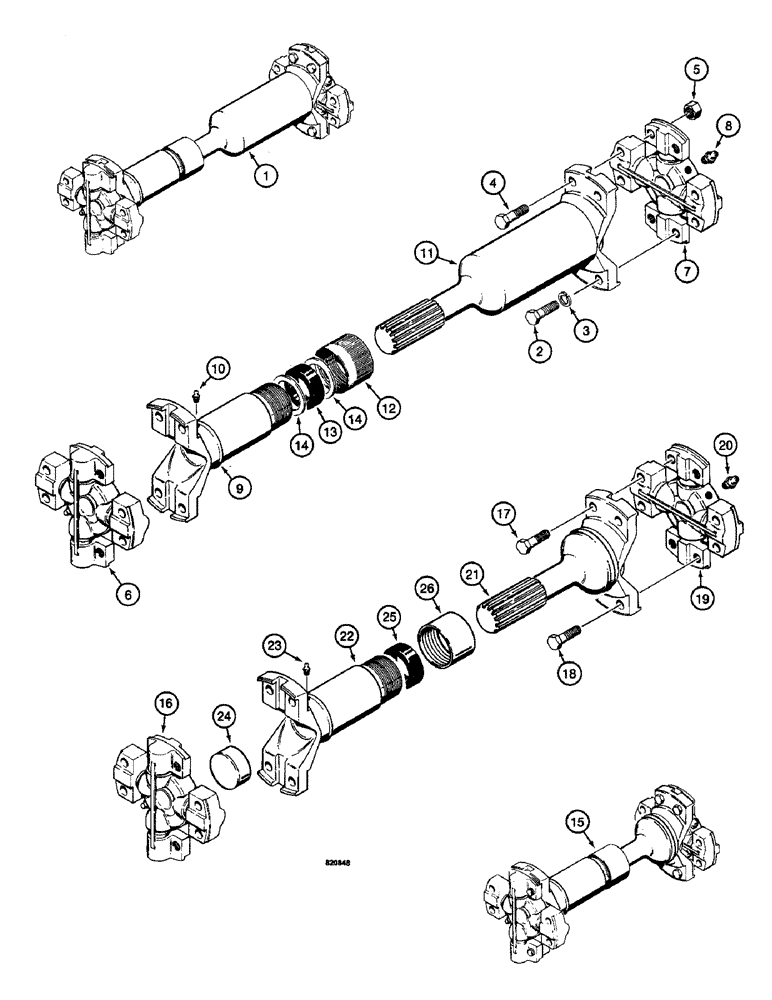

Запчасти Case W14 (316) - FRONT AXLE DRIVE SHAFT, (TRANSMISSION END), REAR AXLE DRIVE (06) - POWER TRAIN

1

L51021

SHAFT

ASSEMBLY - drive, center, Includes: Ref. 1 - 26

1шт.

2

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

Special Hex, 3/8"-24 x 1", G8, Full Thd

8шт.

3

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex head, 3/8"-24 NC x 2"

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, 3/8"-24 NF

8шт.

6

L32423

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

9

L32424

TUBE

YOKE AND TUBE - drive shaft

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

L33949

YOKE

- splined end

1шт.

L32425

CAP

KIT - dust, drive shaft, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft

1шт.

13

L33948

WASHER

- felt

1шт.

14

L31779

WASHER

- metal, felt retaining

2шт.

15

L51017

SHAFT

ASSEMBLY - drive, rear axle, rear axle drive shaft, Includes: Ref. 16 - 26

1шт.

16

D73644

U-JOINT SPIDER

SPIDER AND BEARING ASSEMBLY - drive shaft, rear axle, Includes: Ref. 17 - 20

2шт.

17

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special, rear axle drive shaft

4шт.

18

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

Rear axle drive shaft Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

19

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, rear axle

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - 1/4"-28 NF, Rear axle drive shaft

1шт.

21

L33954

YOKE

- splined end, rear axle drive shaft

1шт.

L33955

YOKE

ASSEMBLY - drive shaft, rear axle, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

YOKE - internal spline, rear axle drive shaft

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, rear axle drive shaft

1шт.

24

D32594

CYLINDER END CAP

CAP - dust, rear axle drive shaft

1шт.

25

A18390

WASHER

- felt, rear axle drive shaft

1шт.

26

A18388

CAP

- metal, felt retaining, rear axle drive shaft

1шт.
