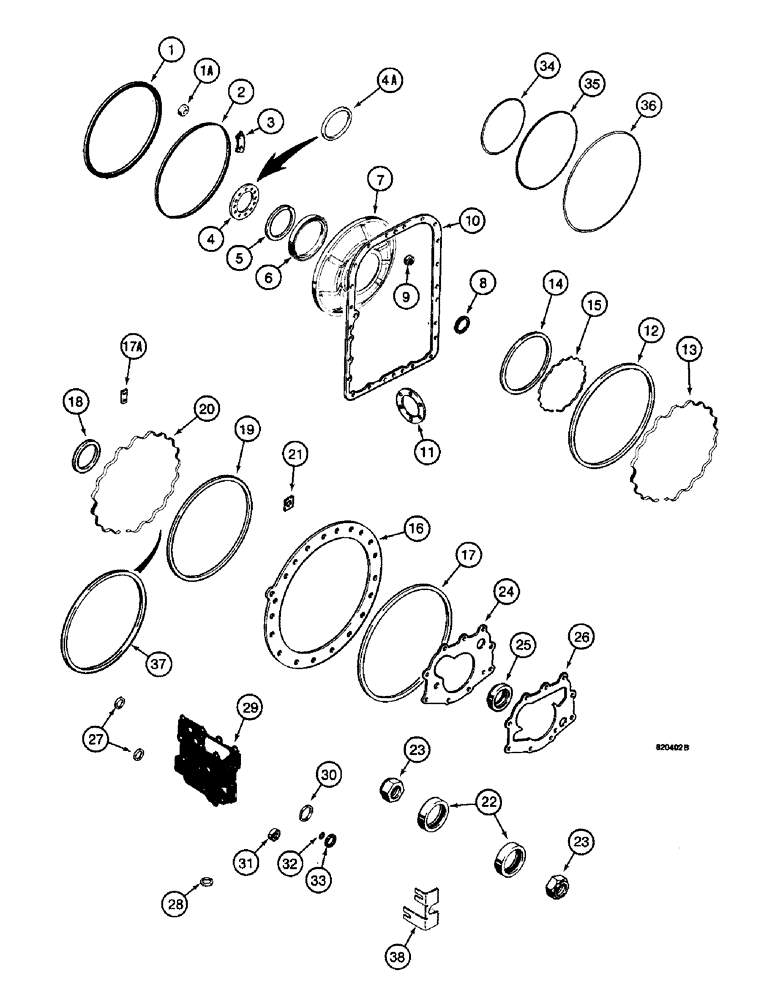

Запчасти Case W14 (312) - TRANSMISSION, TRANSMISSION OVERHAUL KIT (06) - POWER TRAIN

L35269

GASKET KIT

KIT - transmission overhaul, Includes: Ref. 1 - 38

1шт.

1

A16645

SEALING RING

- cover

1шт.

1a

N7170

LOCK NUT

- hex, self-locking, 5/16"-24 NF, special

24шт.

2

N8421

SEALING RING

SEAL - cover

1шт.

3

D47436

PLATE, LOCKING

PLATE - locking

6шт.

4

D48208

GASKET

- pump

1шт.

4a

N8746

SEAL

ING RING - torque converter housing, used in place of D48208 gasket, Ref. 4, in transmissions with N8745 accessory drive gear, see figure 290, Ref. 34, Includes: Ref. 5 - 38

1шт.

5

D47441

SEAL

- converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY - torque converter, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

OIL SEAL - diaphragm assembly

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - torque converter

1шт.

8

D47445

SEAL

ING RING - shaft

2шт.

9

L31084

SEAL

- nut

1шт.

10

D48358

GASKET

- torque converter to transmission housing

1шт.

11

D77594

GASKET,1.78mm Thk

- strainer and cover

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - large

1шт.

13

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal, large

1шт.

A40023

SEAL

AND EXPANDER KIT - before transmission SN 35042, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - small

1шт.

15

NSS

NOT SOLD SEPARAT

EXPANDER - clutch seal, small

1шт.

16

N7021

GASKET

- rear cover

1шт.

17

N9008

SEALING RING

ING RING - front cover

1шт.

17a

L31128

PLATE

- locking, clutch plate

6шт.

18

L31017

RING

SEAL - high clutch piston

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, if used, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

20

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

21

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

22

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - axle output shaft

2шт.

23

L31165

NUT

- axle drive flange retaining, only 2 required this application

3шт.

24

L31081

GASKET

-, Serial Range: pump-housing

1шт.

25

N6876

SEAL,39.88mm ID x 62.05mm OD x 8.41mm Thk

OIL SEAL - charging pump

1шт.

26

L31037

GASKET

- pump, Serial Range: housing-cover

1шт.

27

L31016

GASKET

- regulator valve and valve plug

2шт.

28

L31034

WASHER

GASKET - trimmer valve plug

1шт.

29

L31187

GASKET

- control valve housing

1шт.

30

L31043

GASKET

- trimmer valve plug

1шт.

31

D72773

SEAL,19.05mm ID x 35.08mm OD x 7.26mm Thk

OIL SEAL - control valve spool

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

SEAL - clutch cutoff valve

1шт.

33

L31034

WASHER

GASKET - plug, control valve

1шт.

34

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- small transmission SN 35042 and after

2шт.

35

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- medium, transmission SN 35042 and after

2шт.

36

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- transmission SN 35042 and after

2шт.

37

N7024

SEALING RING

LIP SEAL - high range clutch, if used

1шт.

38

L111460

BRACKET

- spool seal retainer

1шт.
