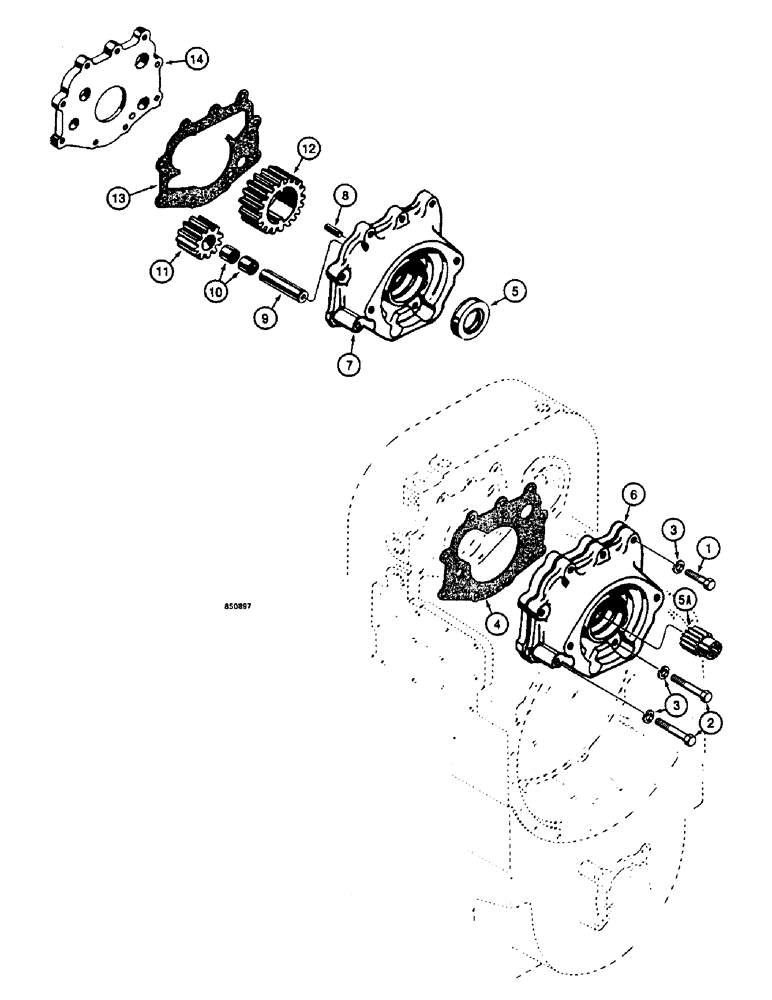

Запчасти Case W14 (308) - TRANSMISSION, CHARGING PUMP (06) - POWER TRAIN

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

7шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8"-16 NC x 3"

2шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

L31081

GASKET

-, Serial Range: pump-housing

1шт.

5

N6876

SEAL,39.88mm ID x 62.05mm OD x 8.41mm Thk

OIL SEAL - pump

1шт.

Ref. 5 - Not used when unit is converted from a Dry Spline Drive to the new Sperry Wet Spline Drive.

1шт.

REF. 5 - P/N S/B N6876. THIS IS THE REPLACEMENT P/N FOR OLD SEAL P/N A13262. P/N L6876 IS A JUMPER INSTALLATION DIAGRAM.

1шт.

5a

D47492

COUPLING, BREAK AWAY

COUPLING - charging pump drive

1шт.

6

L31078

PUMP

- transmission and torque converter charging, used in some early L55662 transmissions, no longer available, order N7770 pump, Ref. 6, and N6876 seal, Ref. 5, Includes: Ref. 7 - 14

1шт.

6

N7770

PUMP,53.57 CC

- transmission and torque converter charging, used on L55662 and L100802 transmissions, see figure 288 for transmission identification, Includes: Ref. 7 - 14

1шт.

6

N6378

PUMP

- transmission and torque converter charging, used on L109866 and L114379 transmissions, see figure 288 for transmission identification, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

8

L31168

PIN

DOWEL PIN - pump, Serial Range: housing-cover

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driven gear

1шт.

10

T32720

BEARING

ROLLER BEARING - shaft

2шт.

11

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

12

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

13

P0031037L

BALL

- pump, Serial Range: housing-cover

1шт.

14

D72787

COVER

- pump

1шт.
