Запчасти Case W14 (304) - TRANSMISSION, HIGH RANGE CLUTCH AND TRANSFER GEAR (06) - POWER TRAIN

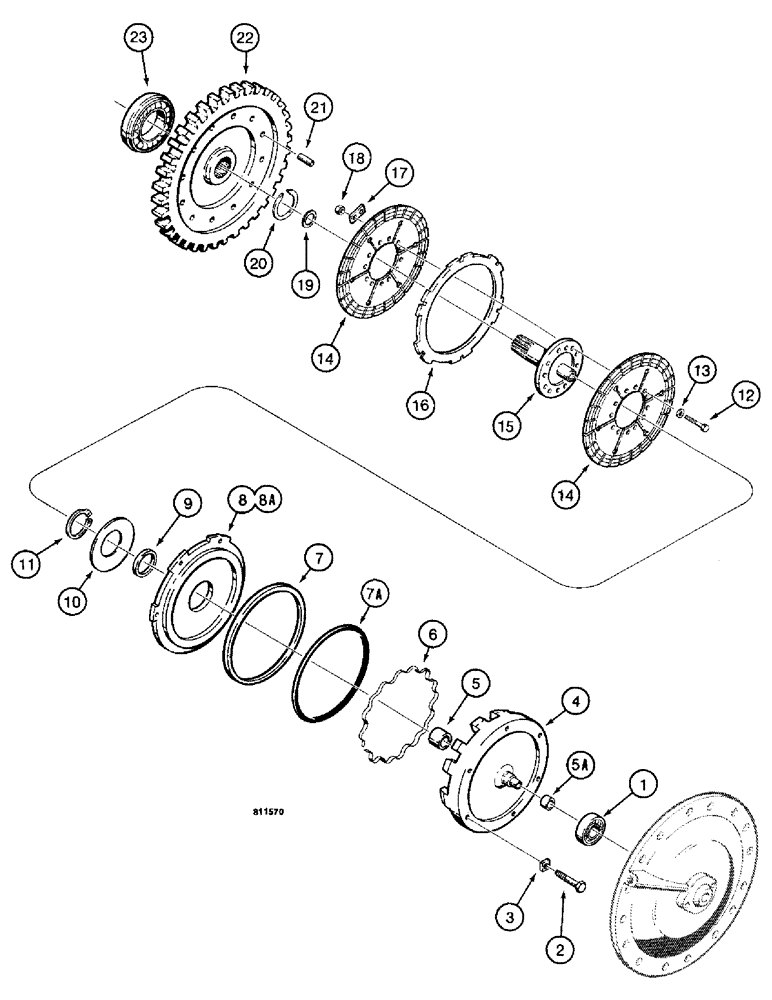

Схема запчастей Case W14 - (304) - TRANSMISSION, HIGH RANGE CLUTCH AND TRANSFER GEAR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- single row

1шт.

2

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

- hex head, 1/2"-20 NF x 2-3/4"

6шт.

3

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

L33928

HOUSING

ASSEMBLY - clutch piston, high range, Includes: Ref. 4, 5 and 5A

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - high range clutch piston

1шт.

5

L32411

BUSHING

- high range clutch piston

1шт.

5a

L33929

SLEEVE

- high range clutch piston

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, use with L32409 piston, Ref. 8, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal, use with L32409 piston, Ref. 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston, use with L32409 piston, Ref. 8

1шт.

7a

N7024

SEALING RING

LIP SEAL - high range clutch, use with N7023 piston, Ref. 8A

1шт.

8

L32409

PISTON

- high range clutch, not used with N7024 lip seal, no longer available, order N7024 lip seal, Ref. 7A and N7023 piston, Ref. 8A

1шт.

8a

N7023

PISTON

- high range clutch, used with N7024 lip seal, Ref. 7A

1шт.

9

L31017

RING

SEAL - high clutch piston

1шт.

10

L31020

SPRING

- piston return

1шт.

11

L31021

RING

SNAP RING - external type

1шт.

12

121-101

BOLT,Hex, Lock, 5/16"-24 x 7/8"

- hex head, 5/16-24 NF x 7/8"

12шт.

13

L31167

WASHER

- flat, special

12шт.

14

N8750

PLATE

- clutch, high range

2шт.

15

L35534

HUB

- high range clutch

1шт.

16

L33958

PLATE

- clutch, external spline

1шт.

17

L31128

PLATE

- locking, clutch plate

6шт.

18

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

12шт.

19

L32407

RING

SNAP RING - hub retaining

1шт.

20

A12663

RING

SNAP RING - gear retaining

1шт.

D49396

GEAR

ASSEMBLY - transfer drive, Includes: Ref. 21 and 22

1шт.

21

L31036

PIN

- clutch plate drive

6шт.

22

NSS

NOT SOLD SEPARAT

GEAR - transfer drive

1шт.

23

D47575

BALL BEARING

- gear

1шт.

Выбрано товаров: 29
