Запчасти Case W14 (298) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND REAR COVER (06) - POWER TRAIN

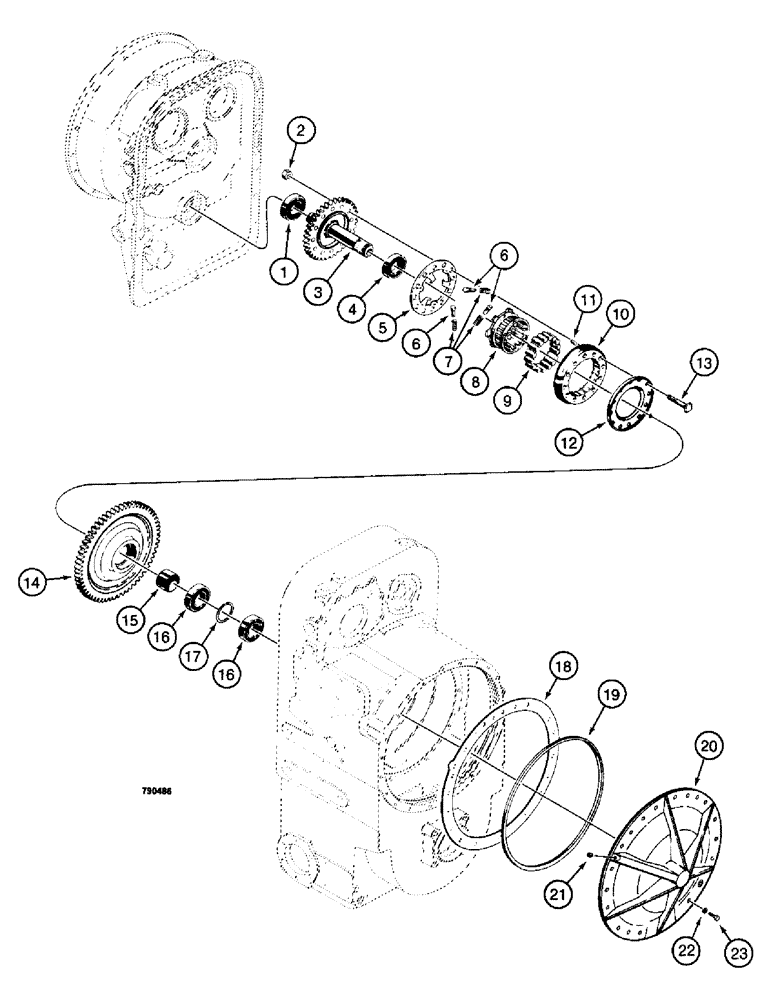

Схема запчастей Case W14 - (298) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND REAR COVER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear and shaft

1шт.

2

L31163

SPECIAL NUT

- hex lock, 3/8"-24 NF, special

12шт.

3

L35508

GEAR

DRIVEN GEAR AND SHAFT ASSEMBLY - second turbine

1шт.

4

D47573

BALL BEARING

- shaft

1шт.

L35003

KIT

- free wheel clutch, Includes: Ref. 5 - 12

1шт.

5

L33962

PLATE

- retaining

1шт.

6

D47644

PIN

- spring positioning

3шт.

7

D48863

SPRING

- plate

3шт.

8

L33963

NEEDLE BEARING CAGE

CAGE - freewheel roller

1шт.

9

L31161

ROLLER

- freewheel

15шт.

N6397

CAM

ASSEMBLY - freewheel, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

11

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

12

D47454

RESERVOIR

PLATE - bolt retainer

1шт.

13

D47455

SQUARE BOLT

- special

12шт.

14

D47456

GEAR

- first turbine

1шт.

15

D48331

BUSHING

SPACER - bearing

1шт.

16

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear

2шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

18

N7021

GASKET

- rear cover

1шт.

19

N9008

SEALING RING

ING RING - bearing

1шт.

20

N6374

COVER

- rear

1шт.

21

221-23

PLUG

- square socket head, 3/8" NPT

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.

Выбрано товаров: 25
