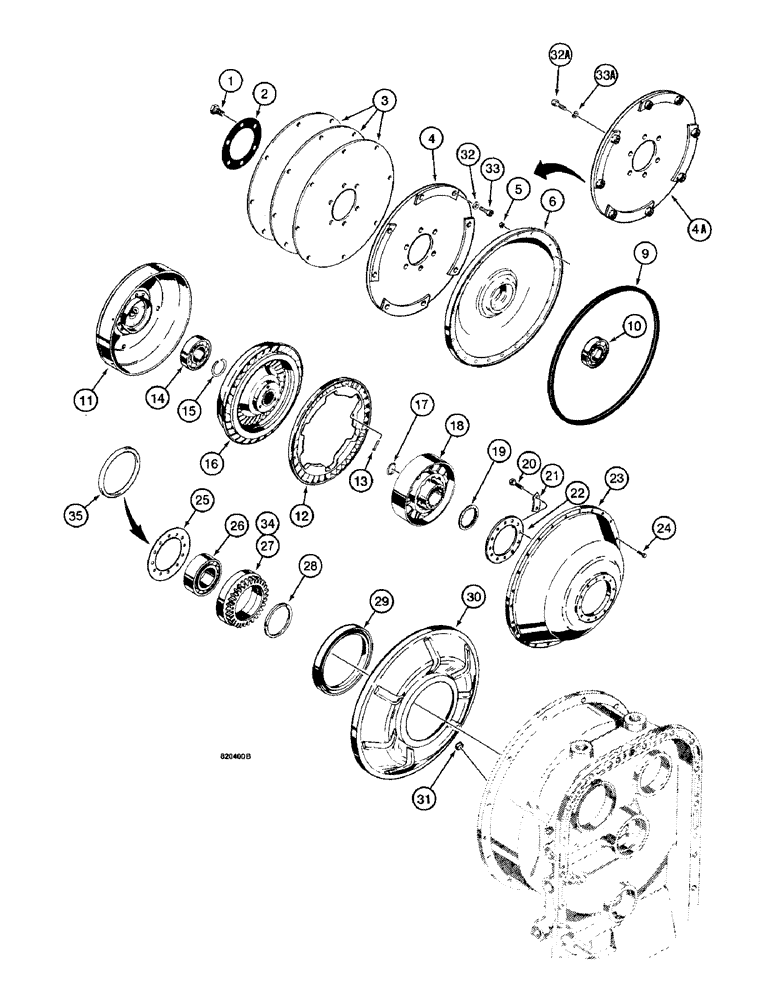

Запчасти Case W14 (290) - TRANSMISSION, FRONT COVER, INPUT SHAFT, AND TORQUE CONVERTER (06) - POWER TRAIN

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

BOLT - hex head, 1/2"-13 NC x 7/8", grade 8

6шт.

2

D46334

PLATE

- flex, disc retaining

1шт.

3

D46335

DISC

- flex plate drive

3шт.

4

L35093

DISC

- flex plate backing, used with L55662 transmission

1шт.

For transmission identificaton , see figure 288.

1шт.

4a

D46336

DISC

- flex plate backing, used with L100802, L109866, and L114379 transmissions

1шт.

For transmission identificaton , see figure 288.

1шт.

5

N7170

LOCK NUT

- hex, self-locking, 5/16"-24 NF

24шт.

6

D46337

COVER

- torque converter pump

1шт.

7

RESERVED

1шт.

8

RESERVED

1шт.

9

N8421

SEALING RING

SEAL - cover

1шт.

10

L33908

BEARING

BALL BEARING - torque converter

1шт.

L33614

TURBINE

ASSEMBLY - torque converter, first, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

12

NSS

NOT SOLD SEPARAT

TURBINE - torque converter, first

1шт.

13

L33615

PIN

- turbine

6шт.

14

N6381

BEARING ASSY

BALL BEARING - torque converter

1шт.

15

D47442

RING

SNAP RING - bearing retaining

1шт.

16

N6382

TURBINE

ASSEMBLY - torque converter, second

1шт.

17

D47433

RING

SNAP RING - external type

1шт.

18

L33984

STATOR

- torque converter, used with L55662, L100802, and L109866 transmissions

1шт.

For transmission identificaton , see figure 288.

1шт.

18

L33617

STATOR

- torque converter, used with L114379 transmission

1шт.

For transmission identificaton , see figure 288.

1шт.

19

D47435

BUSHING

SPACER - stator

1шт.

20

28-418

BOLT

- hex head, 1/4"-28 NF x 1-1/8"

12шт.

For transmission identificaton , see figure 288.

1шт.

21

D47436

PLATE, LOCKING

PLATE - locking

6шт.

22

D47437

RETAINER

- pump

1шт.

L33931

HOUSING

PUMP ASSEMBLY - torque converter, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

24

N8231

SERRATED BOLT

- special

24шт.

25

D48208

GASKET

- pump, if used

1шт.

26

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

- pump

1шт.

27

L35399

GEAR

DRIVE GEAR - accessory, no longer available, order N8745 and N8746, Refs. 34 and 35

1шт.

28

D47441

SEAL

ING RING - torque converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY - torque converter, Includes: Ref. 29 and 30

1шт.

29

L35475

SEAL

OIL SEAL - torque converter

1шт.

30

NSS

NOT SOLD SEPARAT

DIAPHRAGM - torque converter

1шт.

31

L30301

PLUG

- torque converter housing

1шт.

32

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, self-locking, 3/8"-16 NC x 3/4", used with L55662 transmission, not included with transmission

8шт.

For transmission identificaton , see figure 288.

1шт.

32a

114-268

PREV TORQUE BOLT,Locking, 3/8"-24 x 2 1/4", G5

BOLT - hex head, self-locking, 3/8"-16 NC x 2-1/4", used with L100802, L109866, and L114379 transmissions, not included with transmissionf

8шт.

For transmission identificaton , see figure 288.

1шт.

33

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special, cupped, used with L55662 transmission

8шт.

For transmission identificaton , see figure 288.

1шт.

33a

92-6

LOCK WASHER,3/8"

used with L100802, L109866, and L114379 transmissions, not included with transmission 3/8"

8шт.

For transmission identificaton , see figure 288.

1шт.

34

N8745

GEAR

DRIVE GEAR - accessory

1шт.

35

N8746

SEAL

ING RING - torque converter housing, used in place of D48208 gasket, item 25, in transmissions with N8745 accessory drive gear, item 34

1шт.
