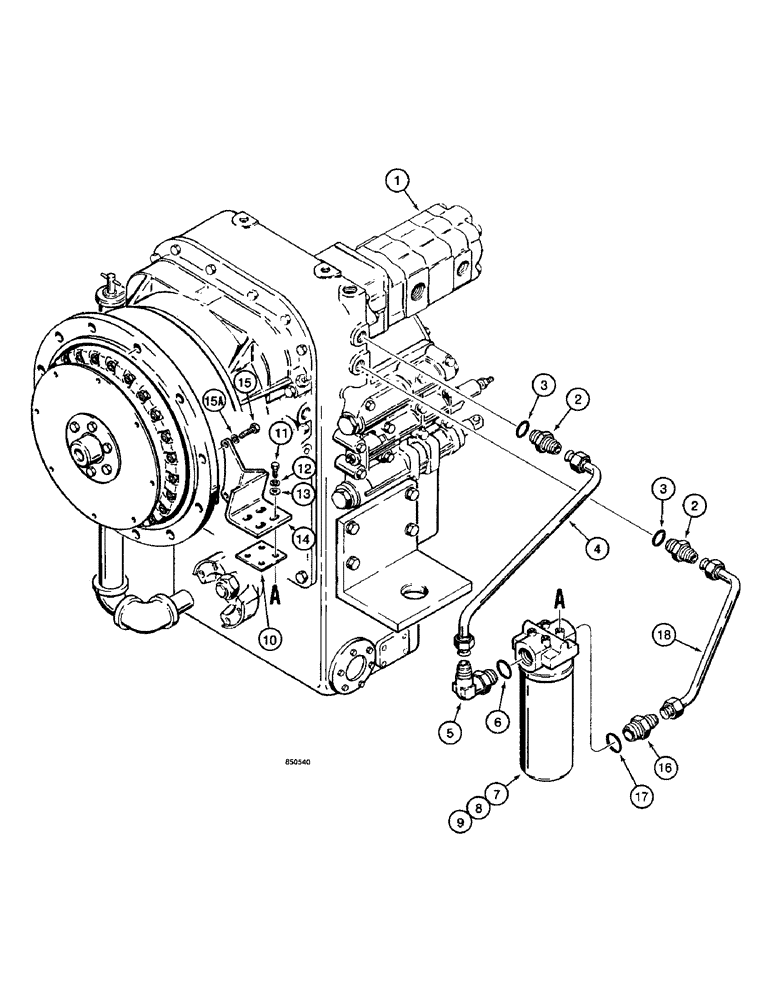

Запчасти Case W14 (284) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO FILTER, * MODELS WITH VERTICALLY MOUNTED FILTER (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - complete, see figure 288

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L109796

TUBE,0.75" OD

- transmission to filter

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

L109282

FILTER, ENGINE OIL

FILTER - transmission oil, Includes: Ref. 7 - 9

1шт.

L109282 is a Spin-On Filter

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

9

L36242

FILTER

ELEMENT - filter, includes O-ring

1шт.

10

L111745

SPACER

- filter

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

14

L112133

BRACKET

- oil filter

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

15a

92-6

LOCK WASHER,3/8"

2шт.

16

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

18

L109798

TUBE,0.75" OD

- filter to transmission

1шт.
