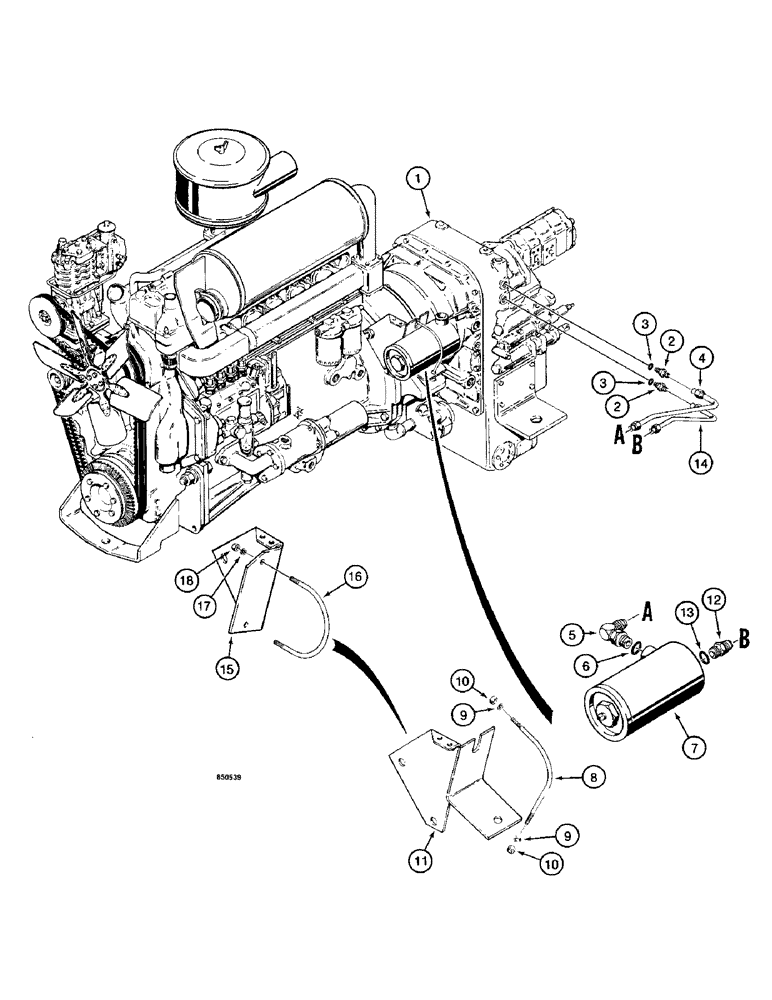

Запчасти Case W14 (282) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO OIL FILTER (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - complete, see figure 288

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L52974

TUBE

- supply, transmission to oil filter

1шт.

5

L114091

FITTING

ELBOW - adjustable, 90 degree, special, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

7

G100001

FILTER, ENGINE OIL

FILTER - transmission oil, parts list figure 286, if used

1шт.

8

L52433

CLAMP

U-BOLT - filter mounting, used with L52967 bracket, Ref. 11

1шт.

9

92-6

LOCK WASHER,3/8"

used with L52967 bracket, Ref. 11 3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC, used with L52967 bracket, Ref. 11

2шт.

11

L52967

BRACKET

- filter mounting, uses engine hardware, no longer available, order Refs. 15-18

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

14

L52978

TUBE

- return, oil, Serial Range: filter-transmission

1шт.

15

L101066

BRACKET

- filter mounting

1шт.

16

L77827

BOLT

U-BOLT - filter mounting, used with L101066 bracket, Ref. 15

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with L101066 bracket, Ref. 15 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

Used with L101066 bracket, Ref. 15 1/4"-20, G5

2шт.
