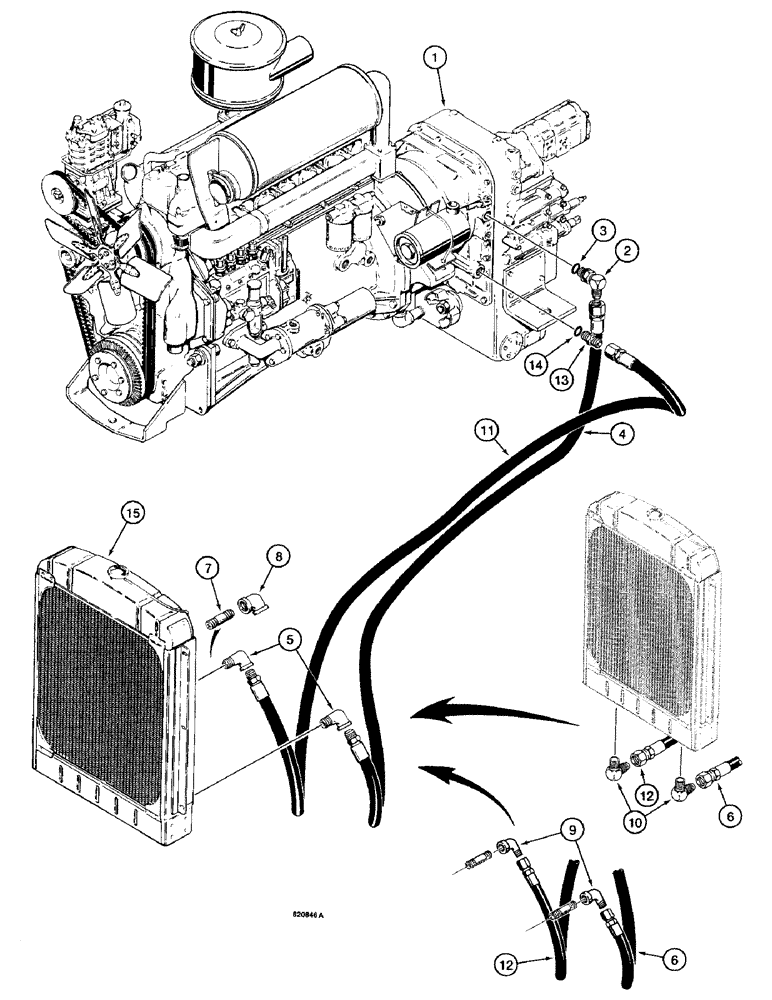

Запчасти Case W14 (280) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO OIL COOLER (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - complete, see figure 288

1шт.

2

L114091

FITTING

ELBOW - adjustable, 90 degree, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

4

L48529

HOSE

- 68" (1727 mm) long, order L106003 hose and 218-516 elbow, Refs. 6 and 9

1шт.

5

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, used with L48529 hose, Ref 4, and L51050 hose, Ref 11, if used 90º, 3/4"-14, NPT

2шт.

6

L106003

HOSE,15.87 mm ID x 1727.00 mm, SAE 100R1 Type A

- 68" (1727 mm) long

1шт.

7

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - 3/4" NPT x 3", used with 221-378 elbow, Ref. 8 or 218-516 elbow, Ref. 9, if used

2шт.

8

221-378

ELBOW,90 Degree, 3/4" NPT

- 90 degree, 3/4" NPT, used with L48529 hose, Ref. 4, and L51050 hose, Ref. 11, if used

2шт.

9

218-516

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

- 90 degree, used with L106003 hose, Ref. 6, and L106001 hose, Ref. 12, used on models with front mounted oil cooler lines, if used

2шт.

10

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, used on models with bottom mounted oil cooler lines, if used

2шт.

11

L51050

HOSE

- 78" (1981 mm) long, order L106001 hose and 218-516 elbow, Refs. 12 and 9

1шт.

12

L106001

HOSE ASSY.

HOSE - 78" (1981 mm) long

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

15

REF

INSTRUCTION

RADIATOR - includes transmission oil cooler, see figure 54

1шт.
