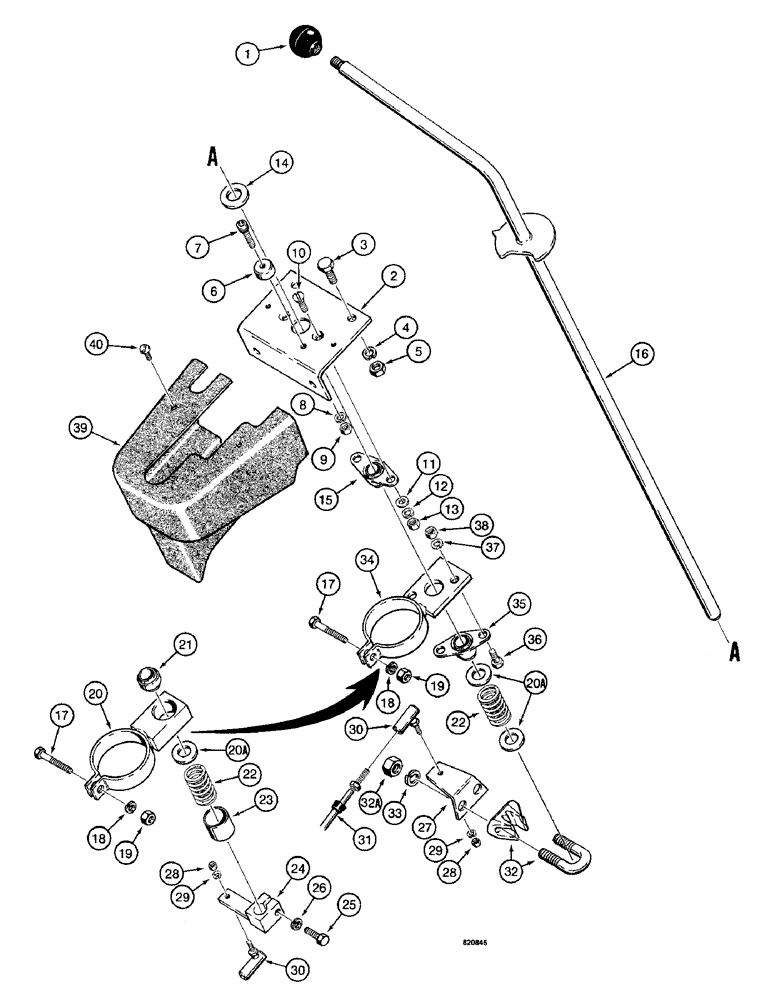

Запчасти Case W14 (274) - TRANSMISSION CONTROL PARTS, SHIFT LEVER (06) - POWER TRAIN

1

A23885

KNOB

- transmission shift lever

1шт.

2

L71696

BRACKET

- shaft and steering column

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

6

L48011

WASHER

STOP - shifting lever

1шт.

7

61-416

HEX SOC SCREW,1/4"-20 x 1"

CAP SCREW - hex socket head, 1/4"-20 NC x 1"

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

MACHINE SCREW - flat head, 1/4"-20 NC x 5/8"

2шт.

11

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

L104902

WASHER

THRUST BEARING - shaft

1шт.

15

L74514

FLANGED BEARING,0.631" ID x 0.812"

BEARING - shift lever

1шт.

16

L105614

SHAFT

- transmission control

1шт.

17

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Use 13-632 bolt and 131-6 nut Hex, 3/8"-16 x 2 1/4", G5

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Use with 131-6 nut Hex, 3/8"-16 x 2", G5

1шт.

18

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC, used with Ref. 18

1шт.

19

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC, not used with Ref. 18

1шт.

20

NSS

NOT SOLD SEPARAT

SUPPORT - transmission control shaft, uses Ref. 21 bushing, order Refs. 34-38

1шт.

20a

195-541

WASHER,5/8", SAE

- flat, 5/8"

1-2шт.

21

L102518

BUSHING

- self-aligning, shaft, with Ref. 20

1шт.

22

A26586

SPRING

- compression

1шт.

23

L12479

SLEEVE

- with lever, item 24

1шт.

24

NSS

NOT SOLD SEPARAT

LEVER - use L79033 lever, L79112 clamp, and 195-541 washer

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with Ref. 24 Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

used with Ref 24 5/16"

1шт.

27

L79033

LEVER

- cable

1шт.

28

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

A10329

BALL JOINT,1/4" - 28 x 1"

- cable end

1шт.

31

L112447

CABLE,1346.2mm L

- transmission shift control

1шт.

32

L79112

CLAMP

ASSEMBLY - includes nuts, Includes: Ref. 32A

1шт.

32a

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

L103475

SUPPORT ASSY.

SUPPORT - transmission control shaft, used with Refs. 35-38

1шт.

35

L74514

FLANGED BEARING,0.631" ID x 0.812"

BUSHING - side flange, used with Ref. 34

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

37

92-5

LOCK WASHER,5/16"

2шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

39

L105615

COVER ASSY

COVER - steering column, black, if used

1шт.

39

L111753

COVER

- steering column, brown, if used

1шт.

40

182-542

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- pan head slotted, 1/4"-20 NC x 1/2"

2шт.
