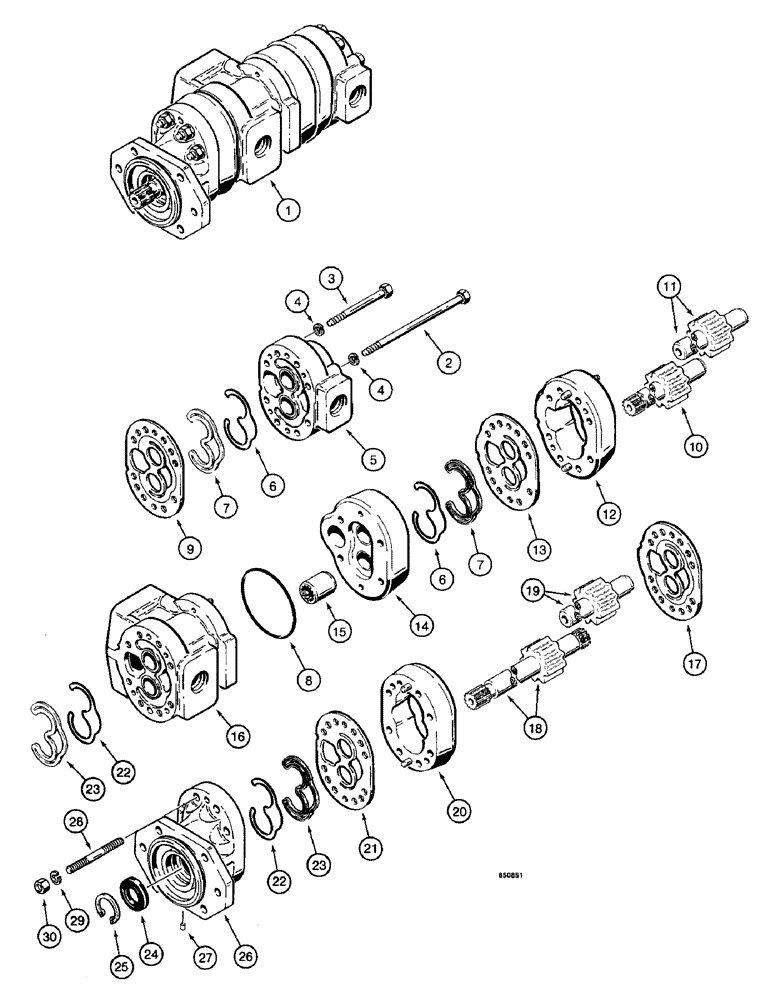

Запчасти Case W14 (272) - L111787 EQUIPMENT AND STEERING PUMP, USED ON PIN 9151870 AND AFTER (05) - STEERING

1

L111787

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY - Sperry Vickers part No. G2020C-6E19V13T-12B30L, Includes: Ref. 2 - 30

1шт.

2

13-7100

BOLT,Hex, 7/16" - 14 x 6-1/4", Gr 5

- hex head, 7/16"-14 NC x 6-1/4"

4шт.

3

113-329

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex head, 7/16"-14 NC x 3-1/4", plated

4шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

N7127

SEAL KIT

- seal, closed end, Includes: Ref. 6 - 8

1шт.

6

N60243

SEAL

- special

2шт.

7

N60305

RETAINER

- seal

2шт.

8

N60307

O-RING

-, Serial Range: adapter-housing

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - wear, front

1шт.

10

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump, closed end

1шт.

11

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump, closed end

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - center

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - wear, center housing

1шт.

14

NSS

NOT SOLD SEPARAT

ADAPTER - housing

1шт.

15

NSS

NOT SOLD SEPARAT

COUPLING - adapter housing

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - section port

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - wear, rear

1шт.

18

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump, shaft end

1шт.

19

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump, shaft end

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - center

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - wear, shaft end cover

1шт.

N7126

SEAL KIT

- seal, shaft end, Includes: Ref. 22 - 25

1шт.

22

N60243

SEAL

- special

2шт.

23

N60305

RETAINER

- seal

2шт.

24

N9020

SEAL

SEAL - shaft (replaces N60306)

1шт.

o.d. of 1.88" and is either NOK 427117 or Vickers 408996.

1шт.

25

A49490

CIRCLIP

RETAINING RING - seal

1шт.

26

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

27

N60210

PLUG

- cover

1шт.

28

NSS

NOT SOLD SEPARAT

STUD - cover

8шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

30

129-104

NUT,7/16"-14, G5

- hex, 9/16"-18 NC, plated

8шт.
