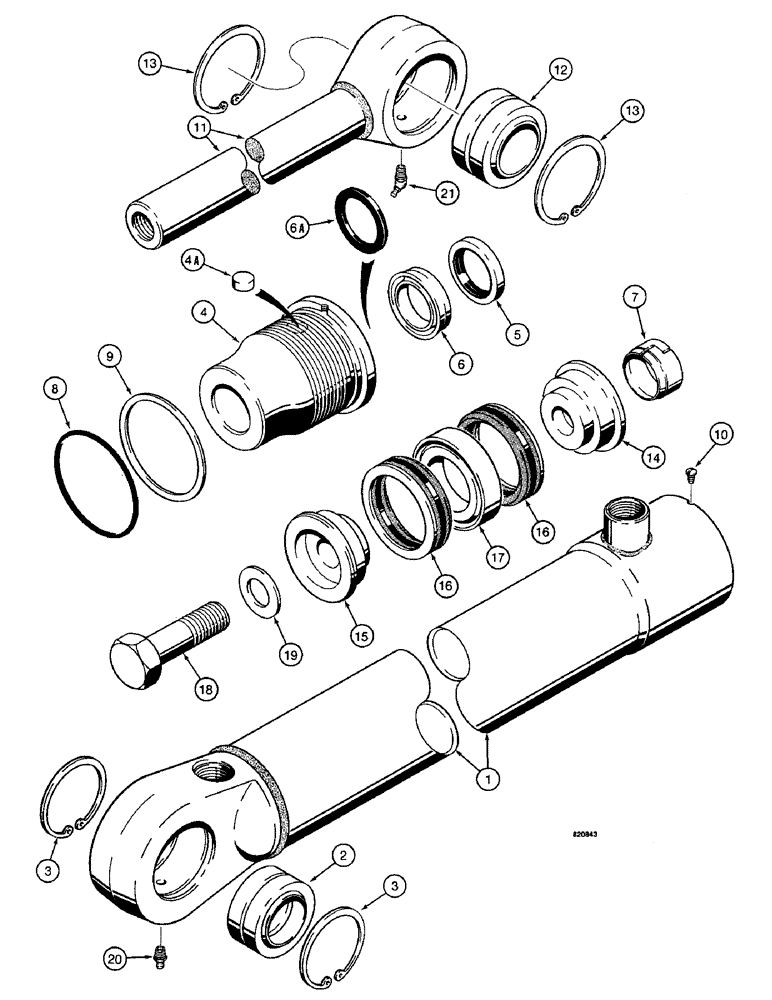

Запчасти Case W14 (266) - G33873 STEERING CYLINDER, TUBE OR GLAND IS STAMPED WITH CYL. PART NUMBER (05) - STEERING

G33873

CYLINDER

- steering, 2-1/2" (64 mm) diameter x 14-1/8" (359 mm) stroke, Includes: Ref. 1 - 21

2шт.

1

G33876

TUBE,559.55 mm L

- cylinder body, Includes: Ref. 2 and 3

1шт.

2

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

- tube, self-aligning

1шт.

3

D28436

SNAP RING,2", Int, #200

Ring, Snap, , brg 2", Int, #200

2шт.

4

G104915

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of cylinder repair seal kit, P/N G32295

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of cylinder repair seal kit, P/N G32295

1шт.

6

G100775

SEAL

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

6a

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 6 in some glands

1шт.

7

D27705

WIPER

- piston rod, inner, if used

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of cylinder repair seal kit, P/N G32295

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of cylinder repair seal kit, P/N G32295

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

11

G33874

PISTON ROD

ROD ASSEMBLY - piston, 1-1/4" (32 mm) diameter, Includes: Ref. 12 and 13

1шт.

12

L12570

BUSHING

BEARING - piston rod, self-aligning

1шт.

13

L12571

SNAP RING,#218, 2.321", Int, Spiral

- bearing retaining

2шт.

14

G33347

PISTON ASSY.

PISTON - split, rod end

1шт.

15

D28364

PISTON

- split, bolt end, Includes: Ref. 16 and 17

1шт.

16

G33193

PACKING

ASSEMBLY - piston

1шт.

Part of cylinder repair seal kit, P/N G32295

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4"-16 NF x 2-1/2"

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - 1/8" NPT

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G32295

GASKET KIT

SEAL KIT - cylinder repair, Includes: Refs. 5, 6, 8, 9 and P/N G33193

1шт.
