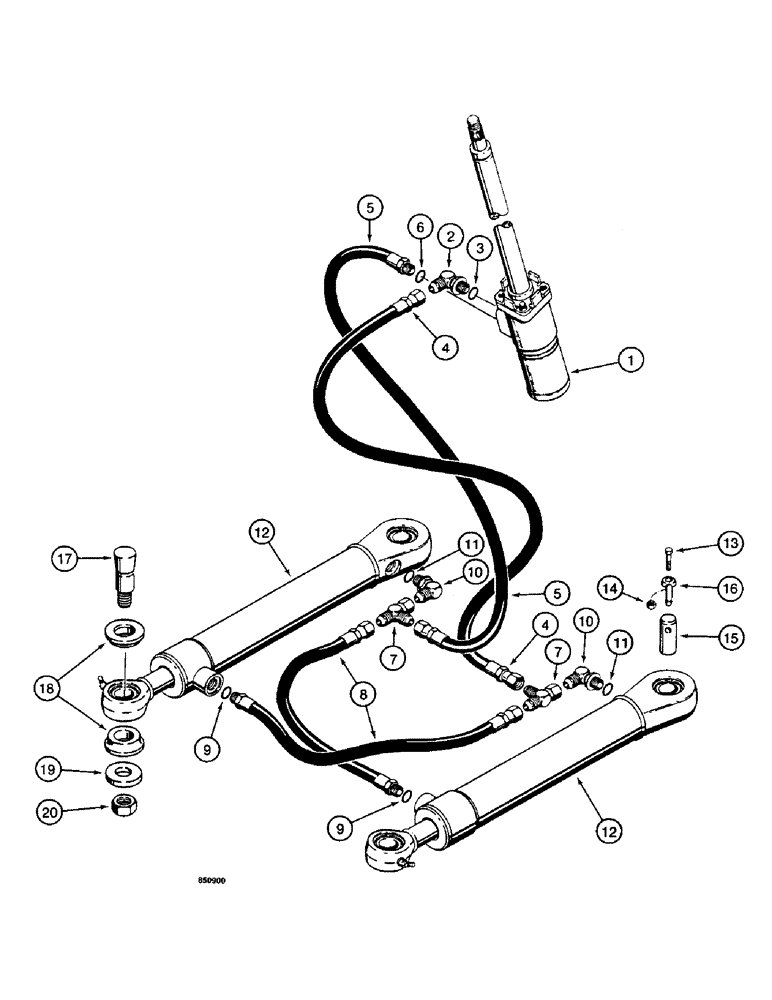

Запчасти Case W14 (264) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering, parts list figures 244 - 248

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 3 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

4

L50016

HOSE

- at right-hand steering cylinder, 35" (889 mm) long

1шт.

5

L50015

HOSE

- at left-hand steering cylinder, 30" (762 mm) long, Includes: Ref. 6

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

7

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- special

2шт.

8

L51198

HOSE,0.50" ID x 28.00", SAE 100R2 Type A

ASSY, 0.50" ID x 28.00", SAE 100R2, Crossover; Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

12

REF

INSTRUCTION

CYLINDER - steering, see figures 266 and 268

2шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2"-13 NC x 1-5/8"

2шт.

14

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

15

L50753

PIN,31.75mm OD x 93.98mm L

- cylinder mounting

2шт.

16

R17756

ROD,12.7mm OD x 109.54mm L

PIN - cylinder pin retaining

2шт.

17

L104481

PIN

- cylinder mounting

2шт.

18

L50969

WASHER

- special

4шт.

19

L51051

WASHER,26.92mm ID x 63.5mm OD x 12.7mm Thk

- special

2шт.

20

131-19

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1 - 14 NC

2шт.
