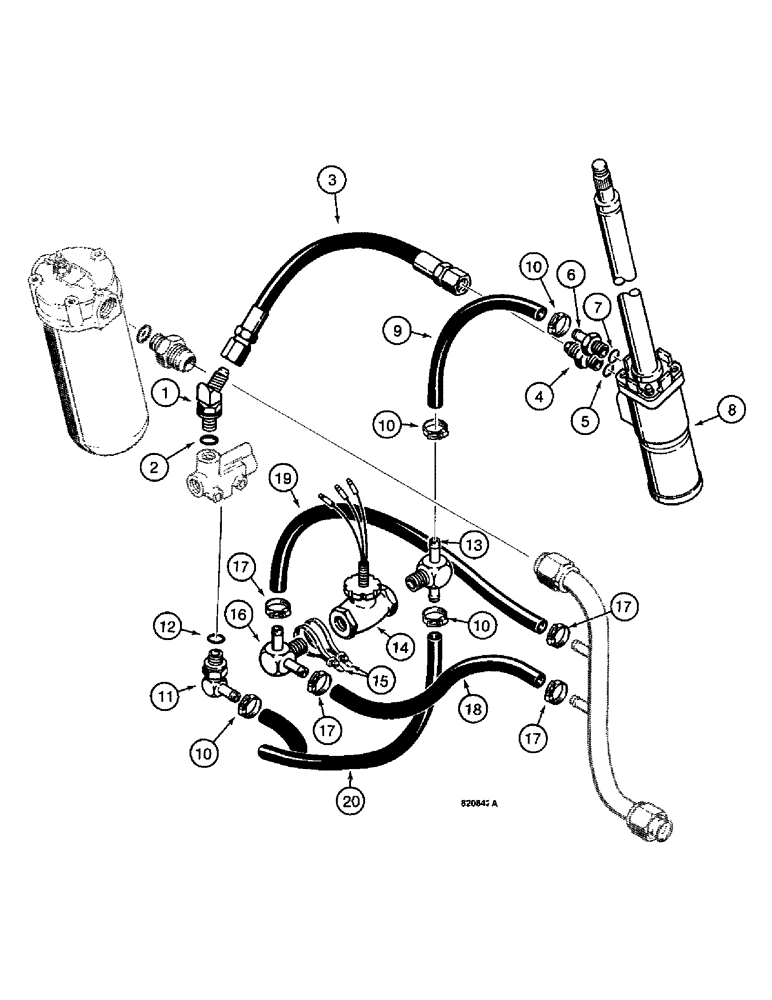

Запчасти Case W14 (258) - AUXILIARY STEERING HYDRAULIC CIRCUITS, FLOW CONTROL VALVE TO EXTERNAL CYLINDER FILTER (05) - STEERING

1

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, Incl. Ref 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

3

L73647

HOSE ASSY.,0.63" ID x 19.00", SAE 100R2 Type A

HOSE ASSY, 0.63" ID x 19.00", SAE 100R2, Type A, Flow Control Valve to Steering Valve

1шт.

4

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. 5 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

6

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Includes: Ref. 7

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, stem fitting

1шт.

8

REF

INSTRUCTION

CONTROL VALVE - steering, see figures 244 and 248 for correct valve and components

1шт.

9

L73652

HOSE,0.63" ID x 10.00", SAE 100R6

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

11

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

90°, Incl Ref 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

13

L106571

FITTING

TEE - special

1шт.

14

L113437

SWITCH

- flow control

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

16

L106572

TEE - special

1шт.

17

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

18

L107902

HOSE

- 5/8" (16 mm) ID x 14" (356 mm) long

1шт.

19

L76381

HOSE,15.9 mm ID x 457.20 mm, SAE 30R2 Type 1

15.9 mm ID x 457.20 mm, SAE 30R2

1шт.

20

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

15.9 mm ID x 762 mm, SAE 30R2, Type 3

1шт.
